Home >> Acura >> 2009 >> RDX L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Starting System >> IG1 Fuse And IG2/Start Fuse Connector View

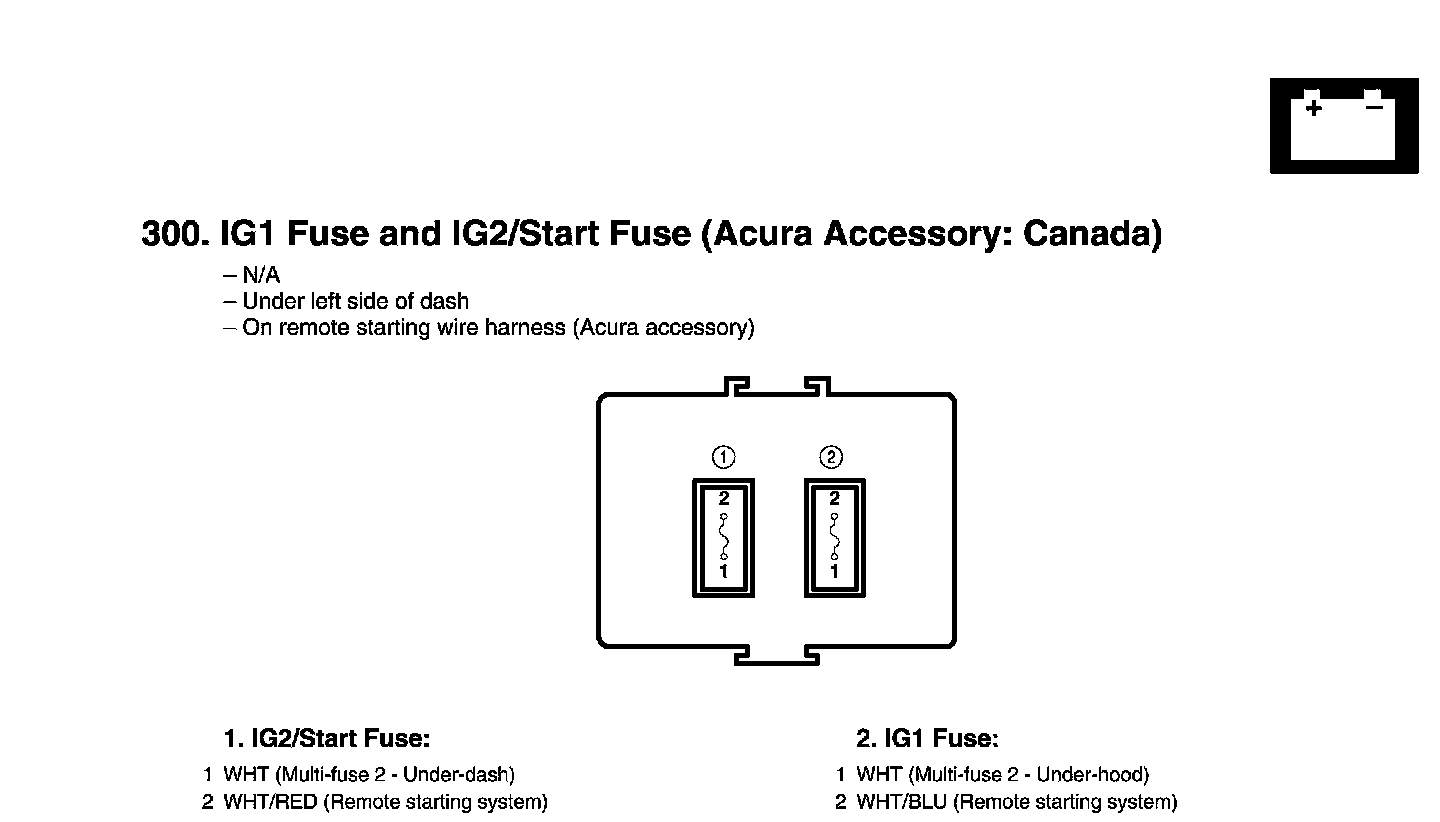

IG1 Fuse And IG2/Start Fuse Connector View
