Structural Brace: Service and Repair

Rear Damper Gusset Replacement

NOTE: Take care not to scratch the body.

1. Remove these items:
- Cargo area side trim panel Interior Trim Removal/Installation - Rear Side Area

- Side floor spacer Interior Trim Removal/Installation - Cargo Area

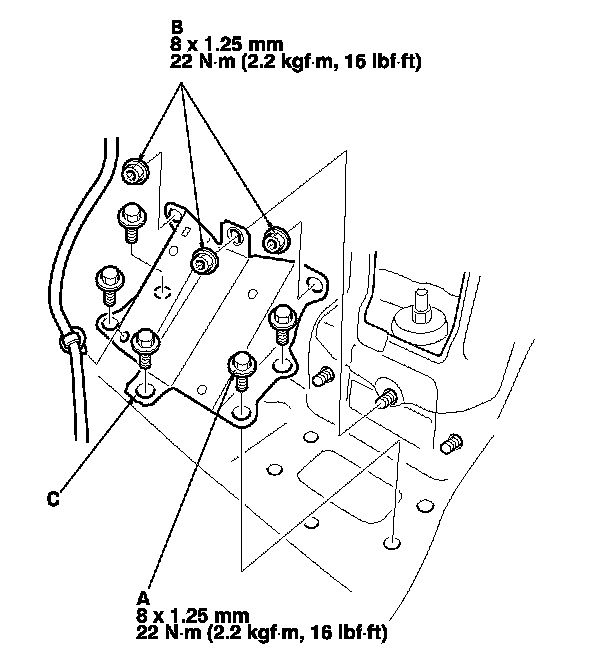

2. Remove the bolts (A) and the nuts (B), then remove the rear damper gusset (C).

3. Install the gusset in the reverse order of removal.
