Section 5 (Charging System)
>>
Alternator Overhaul
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2010 Acura TL and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

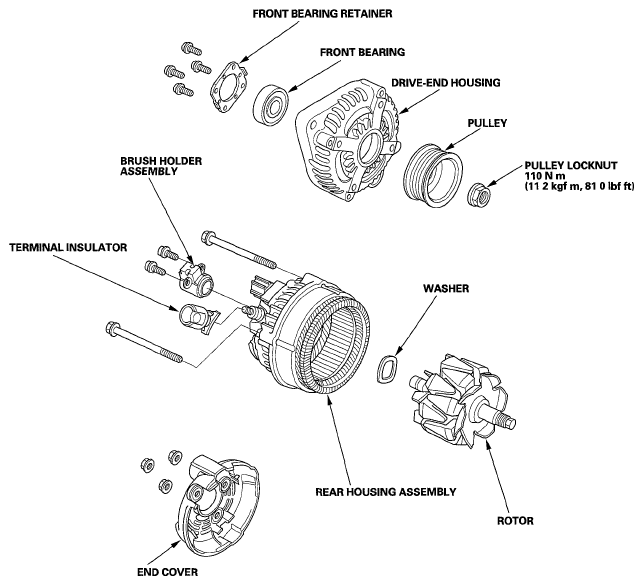

Fig 1: Exploded View Of Alternator With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
