Home
>>
Acura
>>
2008
>>
TSX L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Under-dash Fuse/Relay Box
Under-dash Fuse/Relay Box

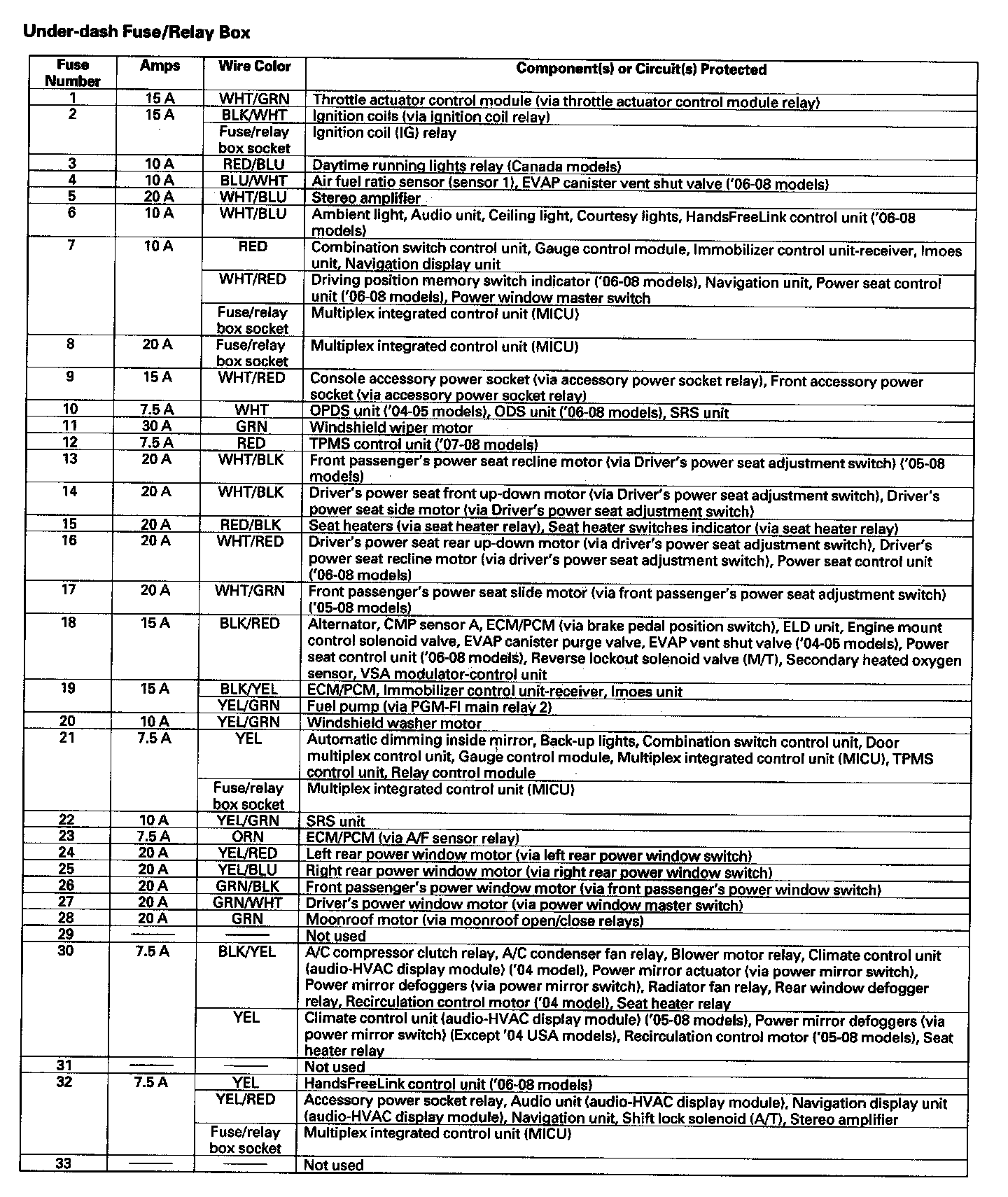

Under-dash Fuse/Relay Box (Part 1):

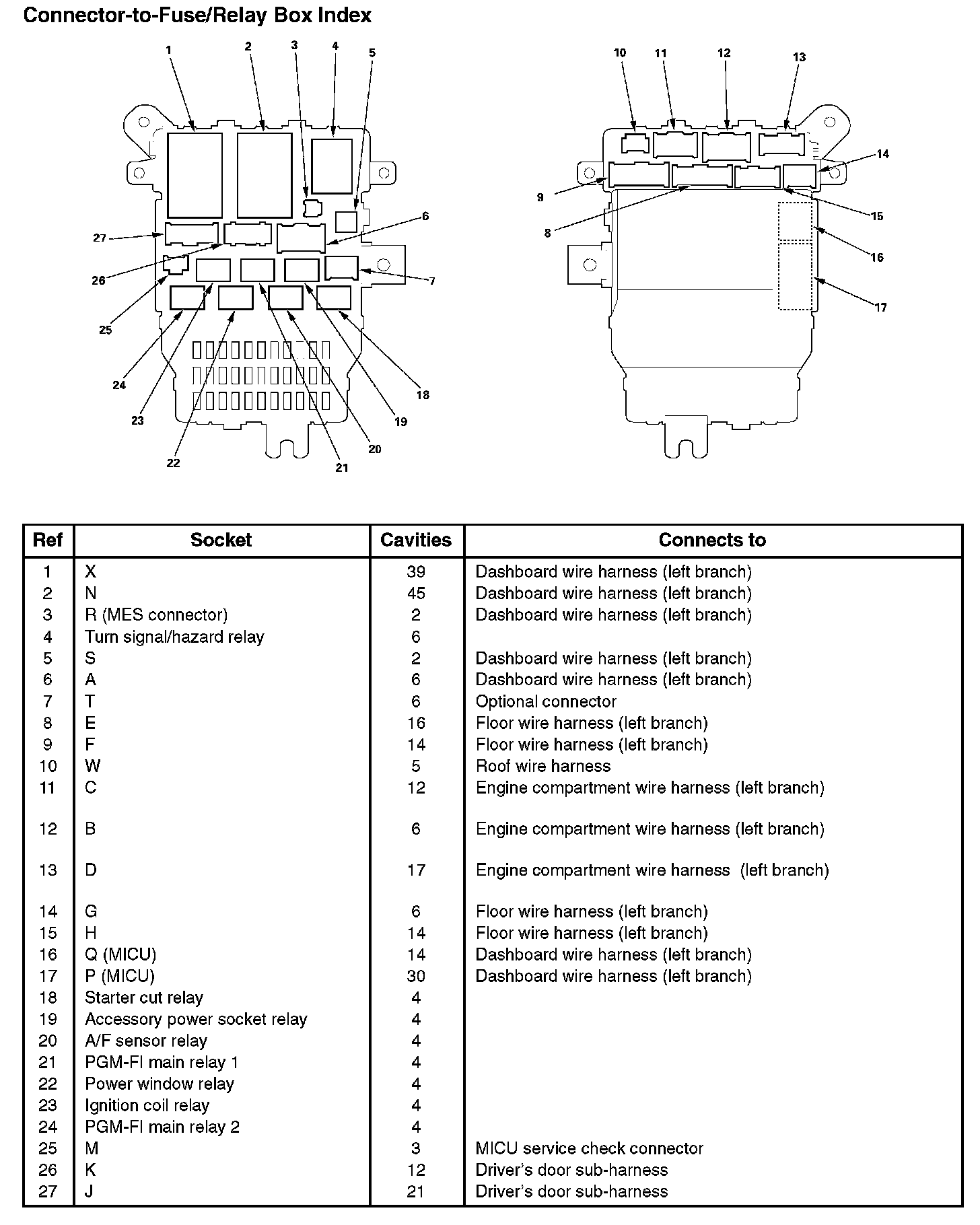

Under-dash Fuse/Relay Box (Part 2):
Under-dash Fuse/Relay Box:
