Cabin Noise Cancellation Control Module
Cabin Noise Cancellation Control Module
269. Actice Noise Control Unit (Type S):

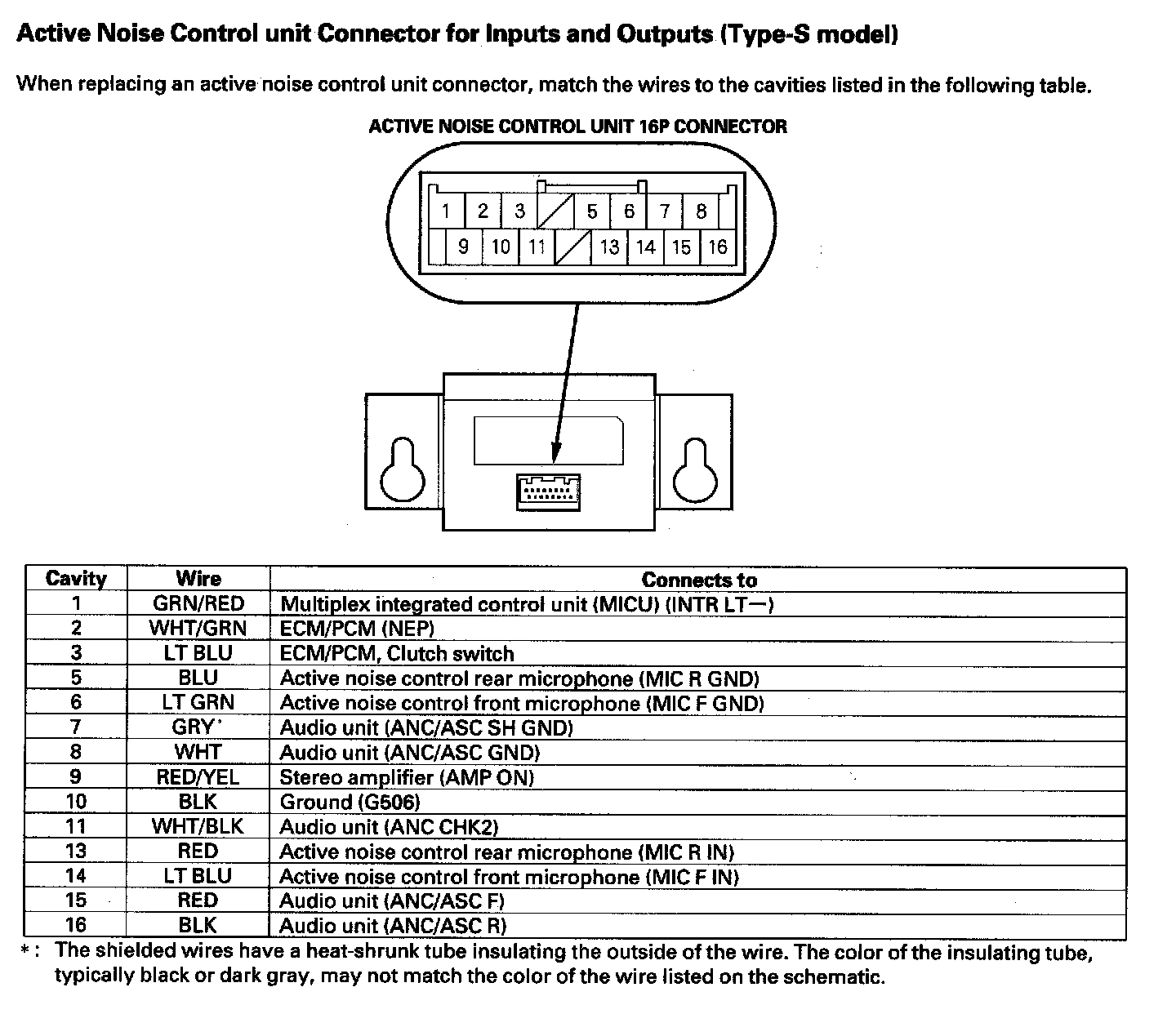

Active Noise Control unit Connector for Inputs and Outputs (Type-S model):
