Home >> Acura >> 2008 >> RL V6-3.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Seat Belt Control Module >> Locations

Seat Belt Control Module: Locations

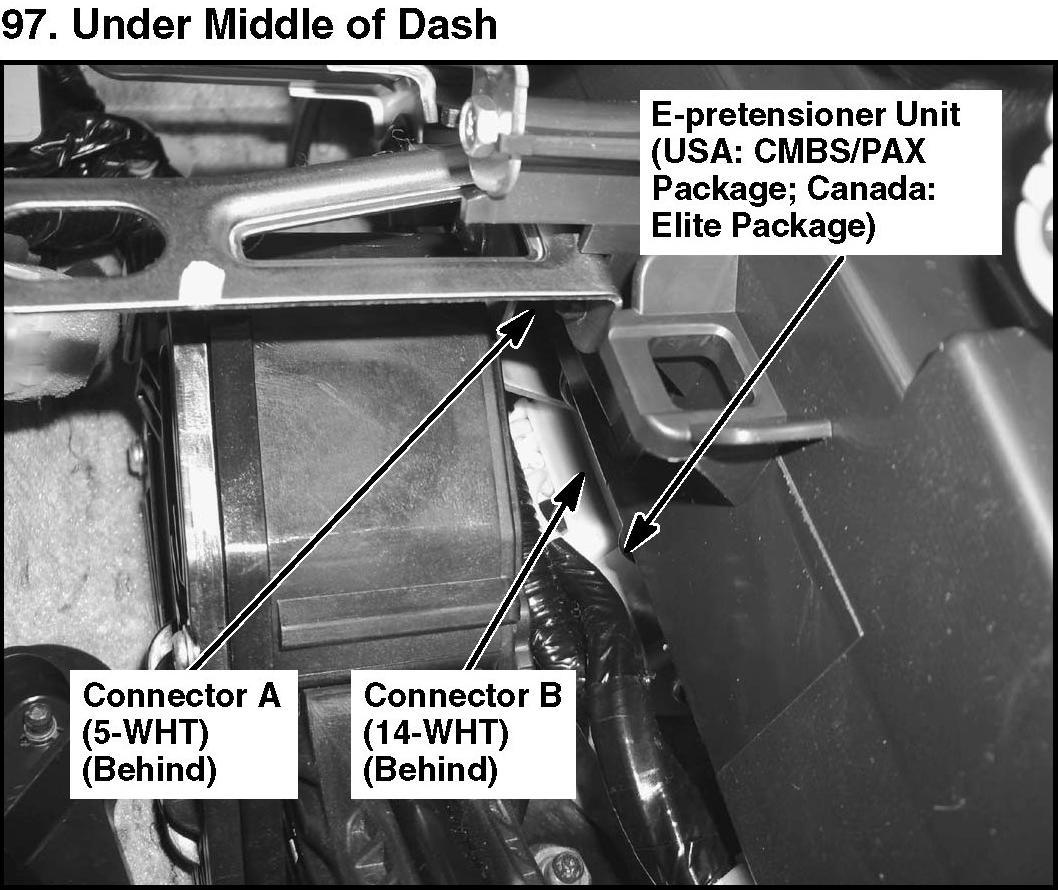

97. Under Middle Of Dash:



Relay And Control Unit Locations Dashboard:

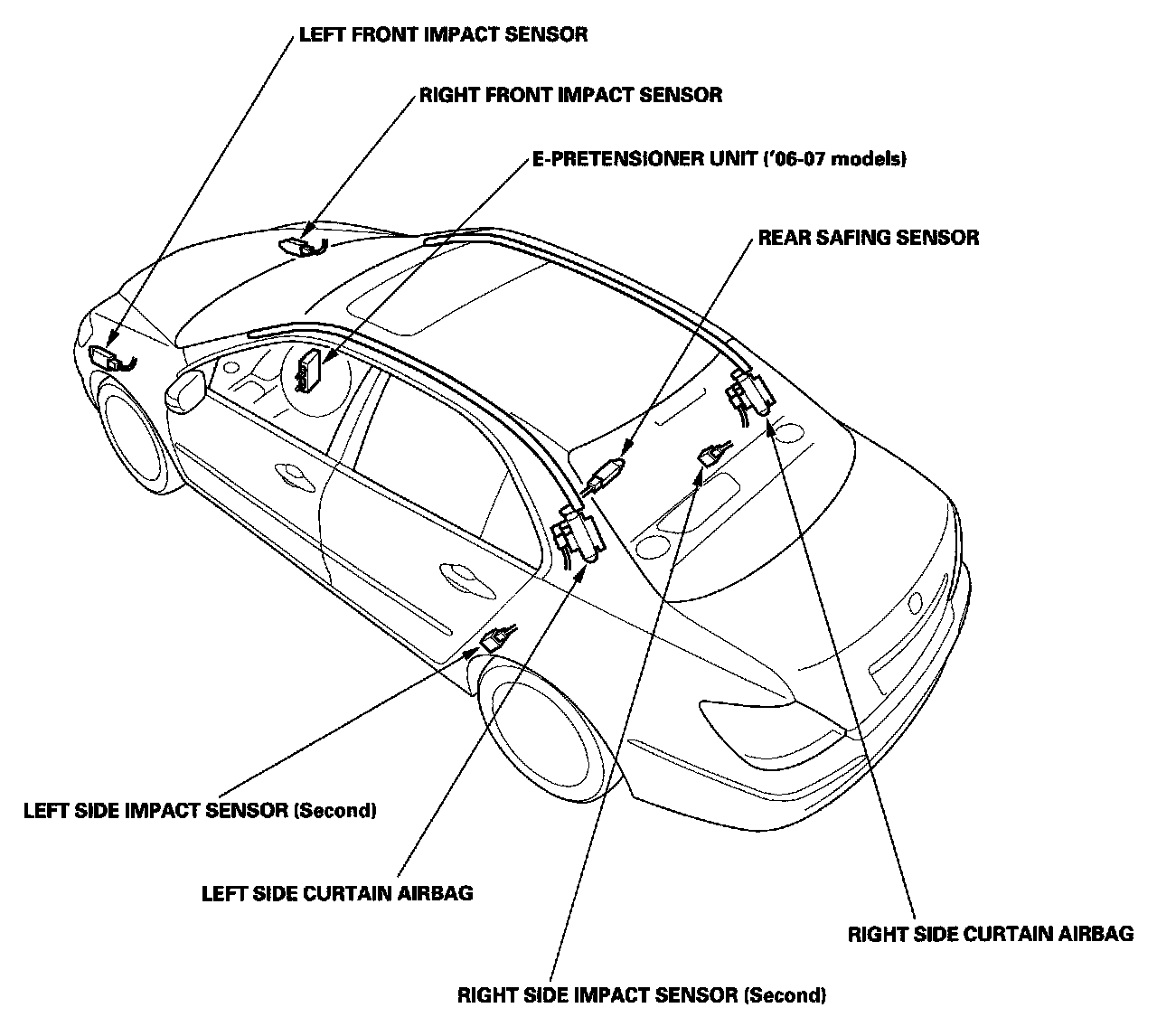

SRS Component Location Index:
