Radiator Cooling Fan Control Module: Locations

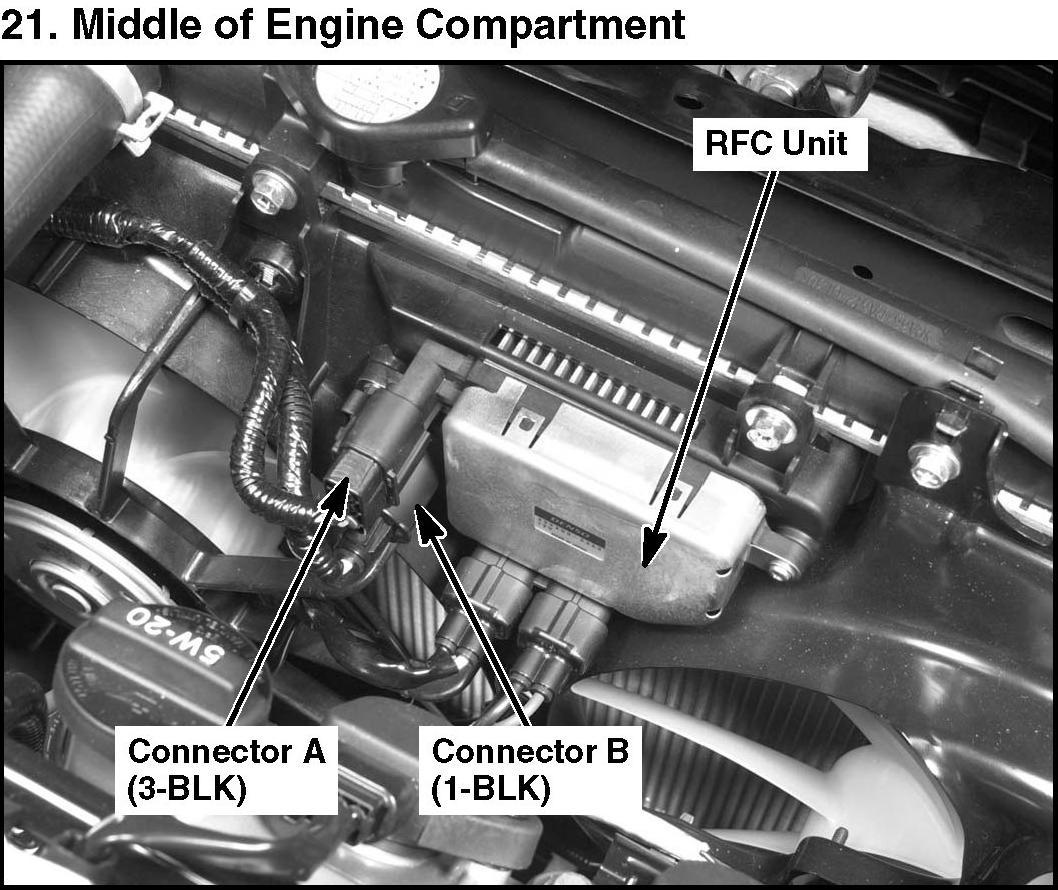

21. Middle Of Engine Compartment:

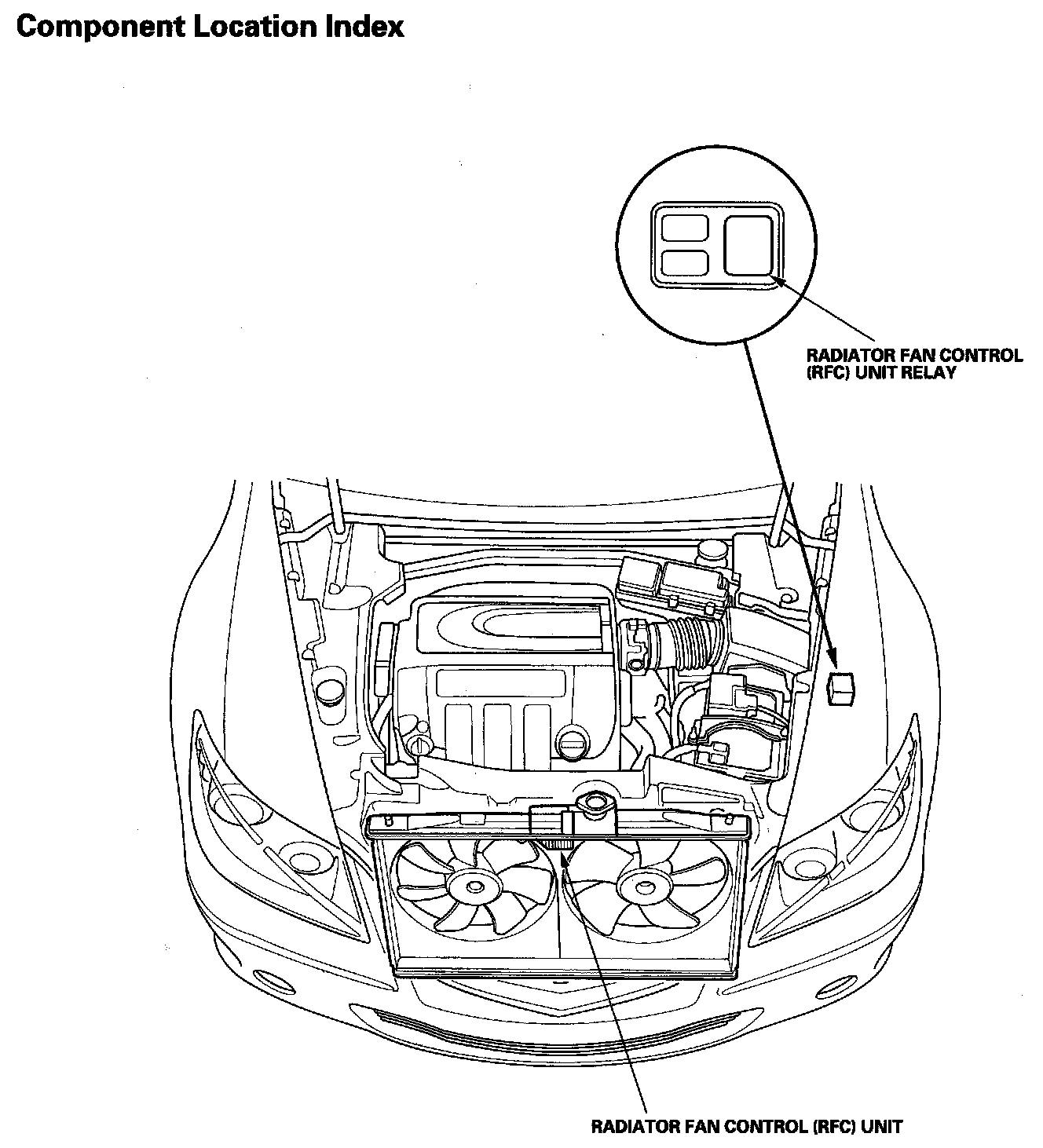

Fan Controls Component Location Index:

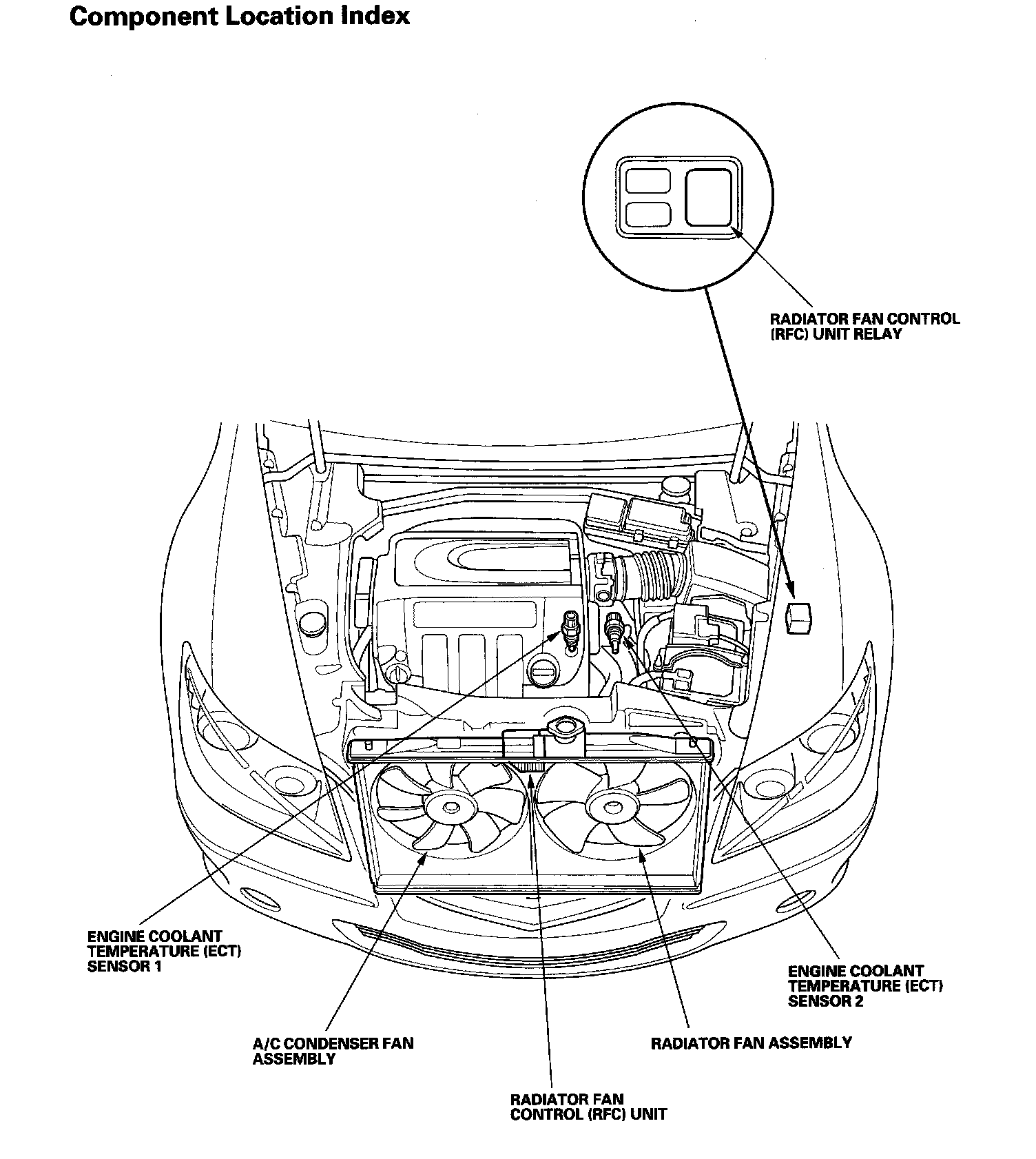

Radiator Fan Control (RFC) System Component Location Index:



Relay And Control Unit Locations Engine Compartment:
