Home >> Acura >> 2008 >> RL V6-3.5L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Alignment Control Module >> Locations

Headlamp Alignment Control Module: Locations

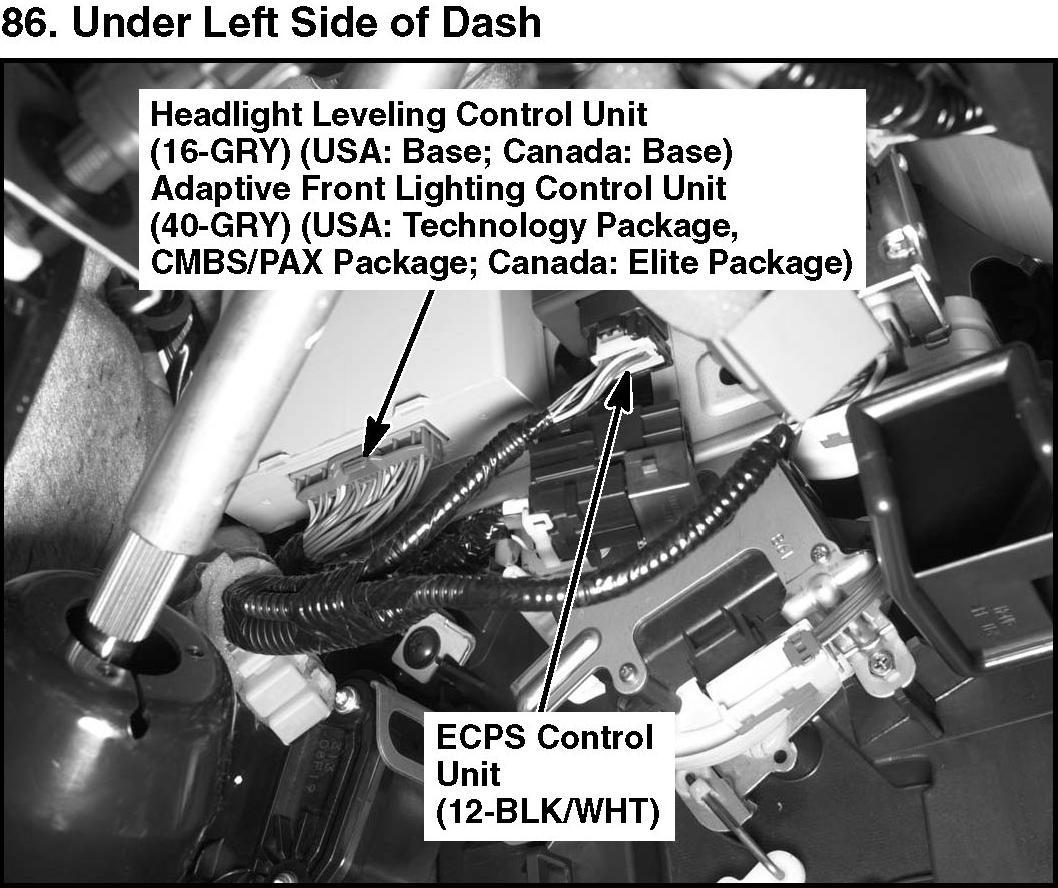

86. Under Left Side Of Dash:

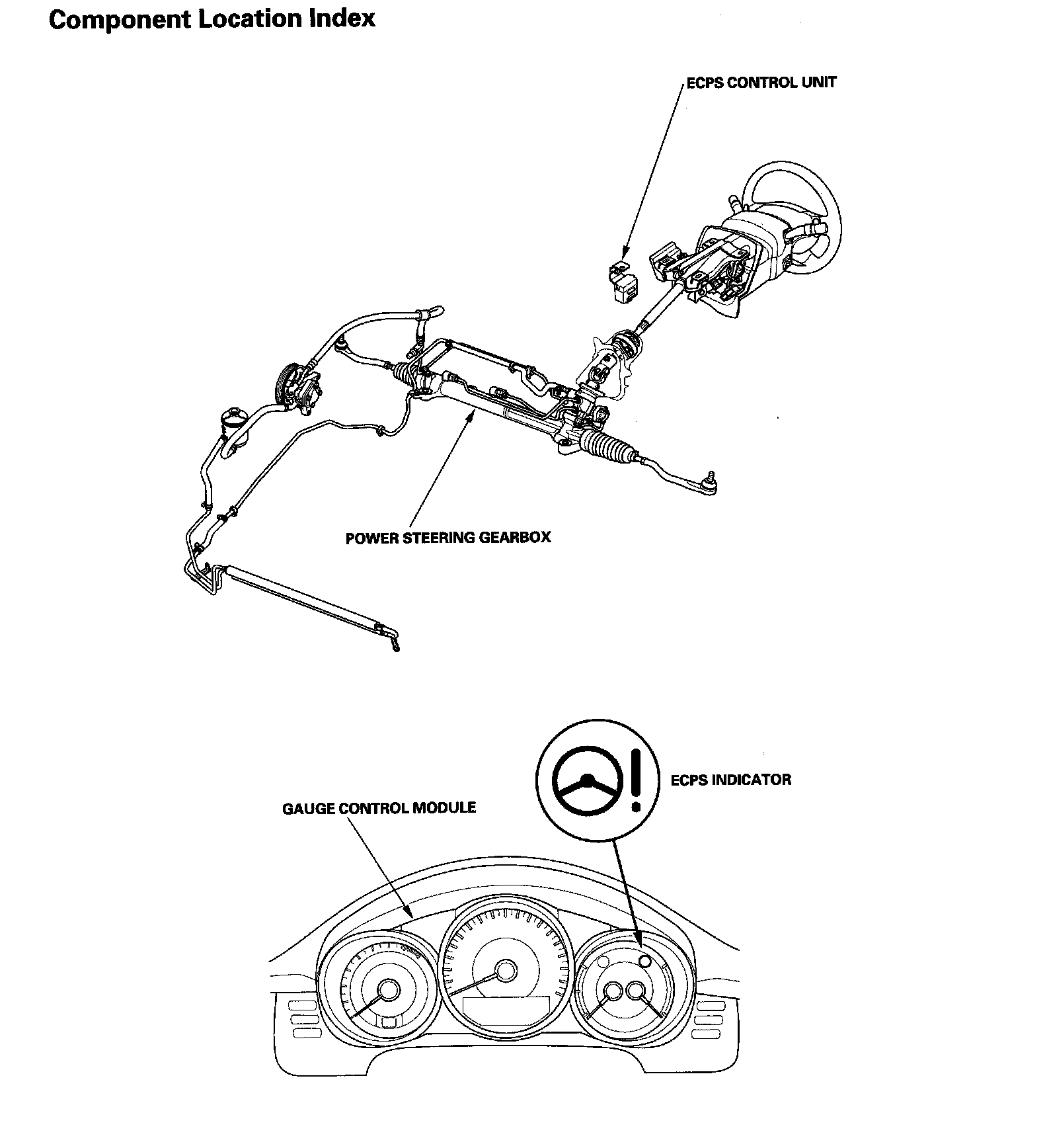

Electronically Controlled Power Steering System Component Location Index:



Relay And Control Unit Locations Dashboard:
