Driving Position Memory System (DPMS) Circuit Diagram

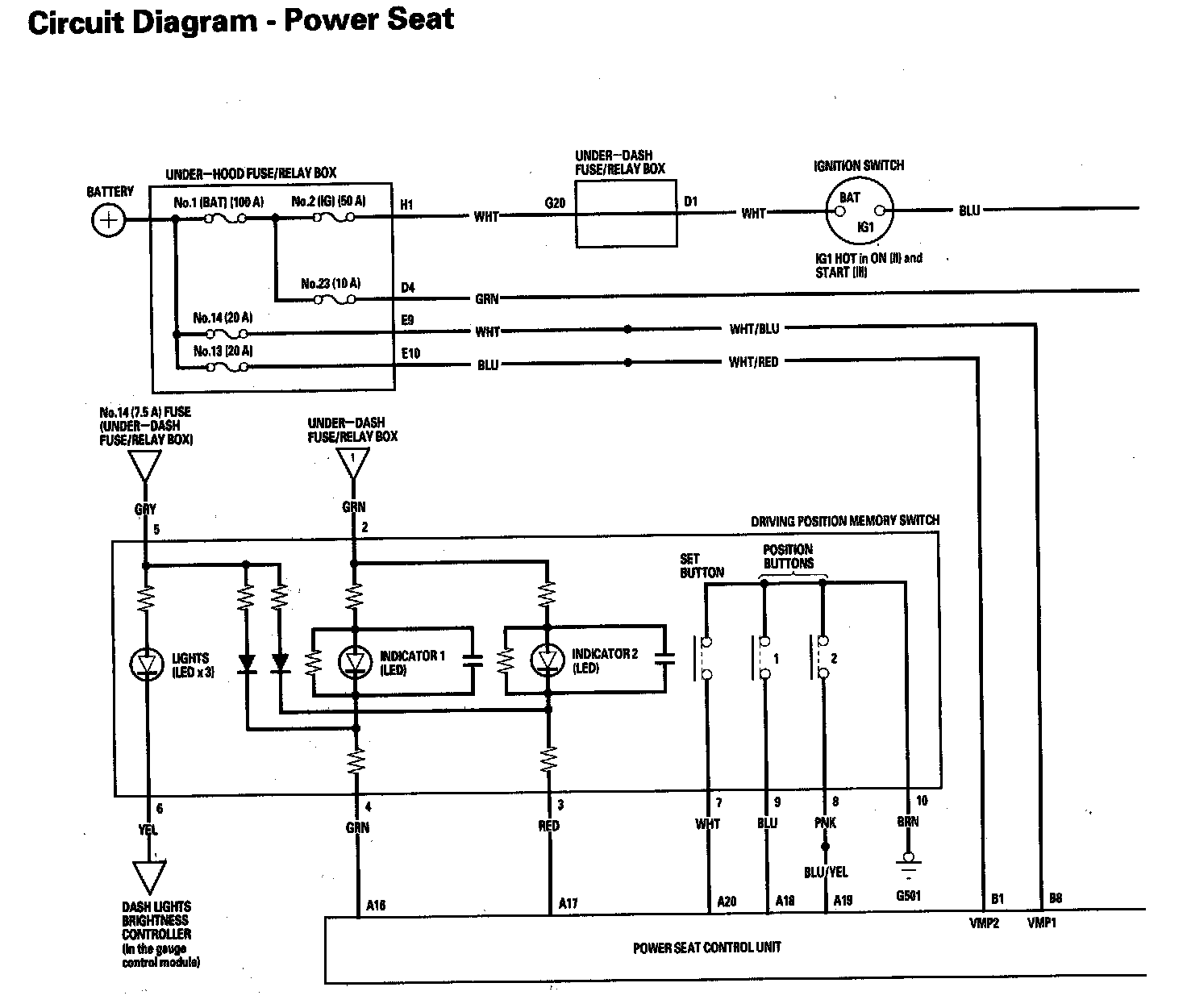

Driving Position Memory System (DPMS) Circuit Diagram - Power Seat (Part 1):

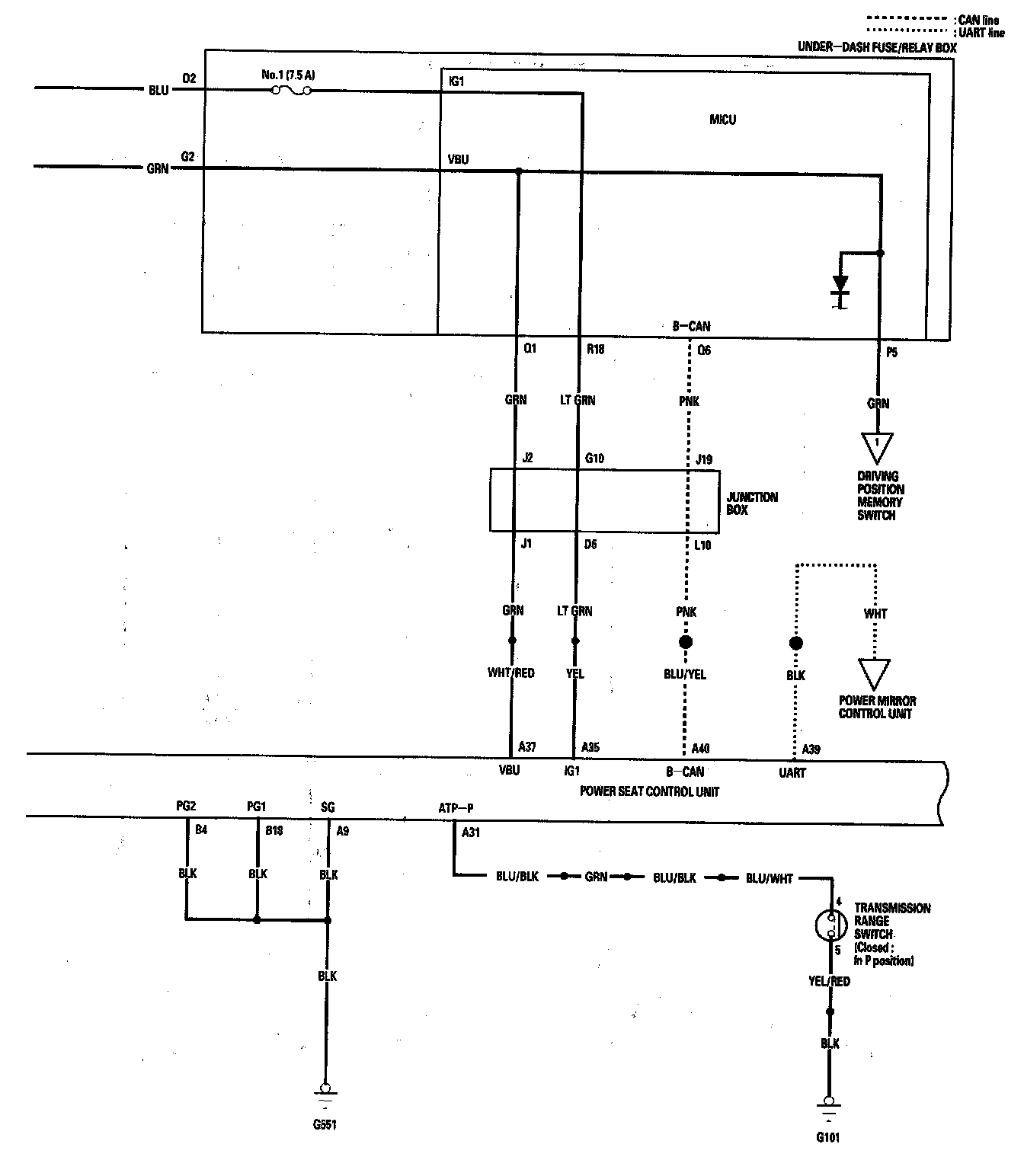

Driving Position Memory System (DPMS) Circuit Diagram - Power Seat (Part 2):

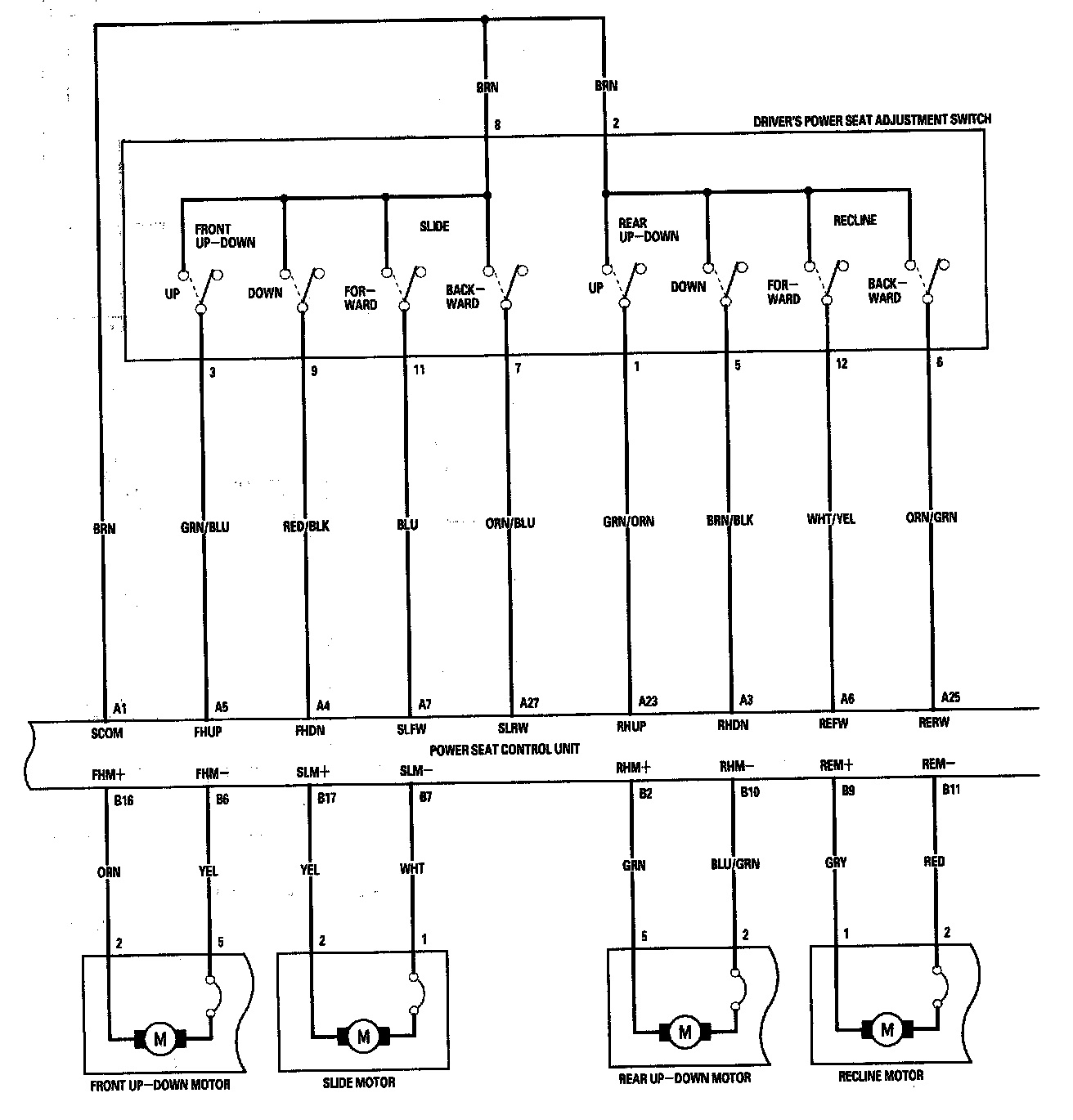

Driving Position Memory System (DPMS) Circuit Diagram - Power Seat (Part 3):



Driving Position Memory System (DPMS) Circuit Diagram - Power Seat (Part 4):
