Tire Pressure Module
Tire Pressure Module
265. TPMS Control Unit:

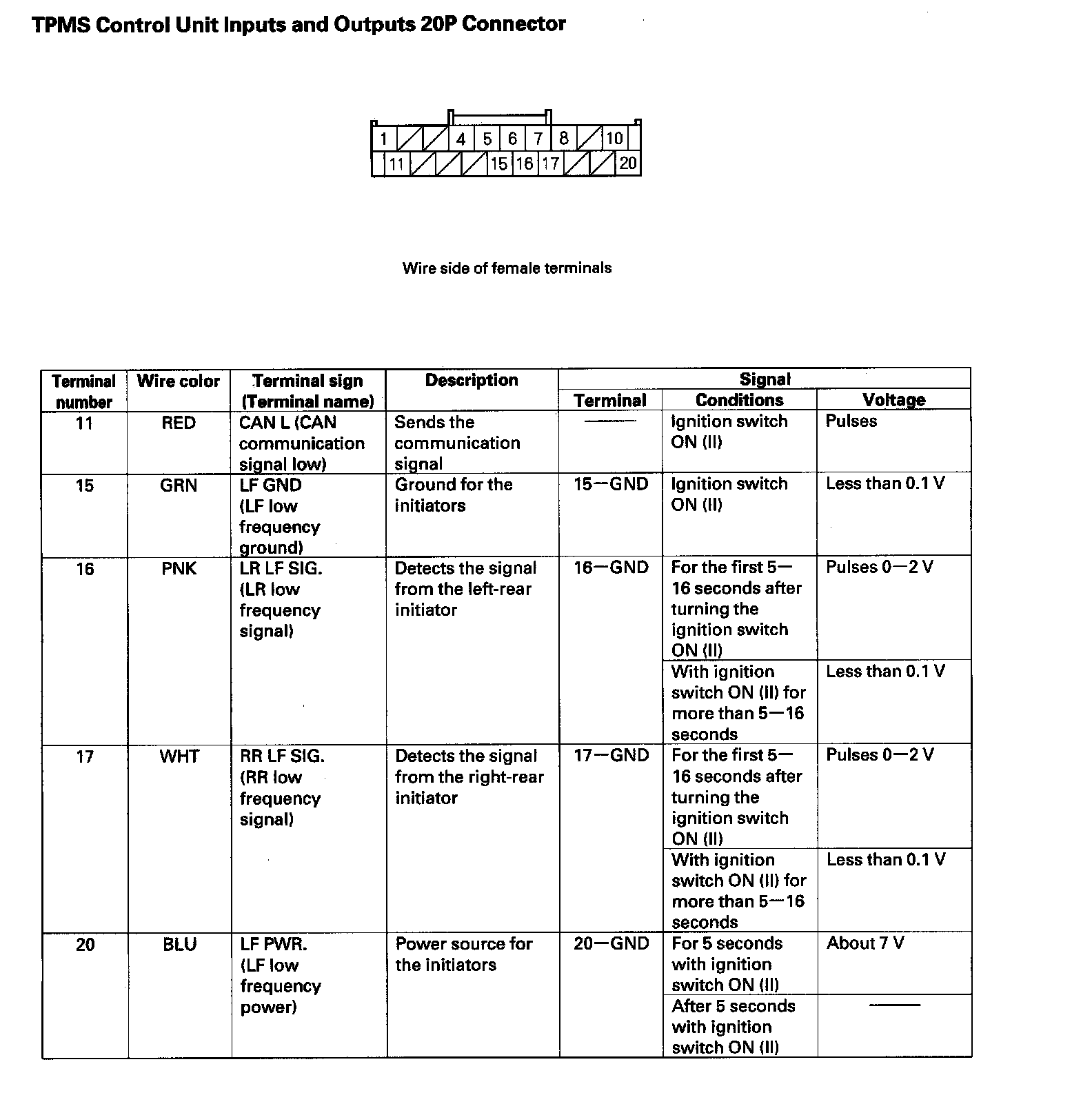

TPMS Control Unit Inputs And Outputs 20P Connector (Part 1):

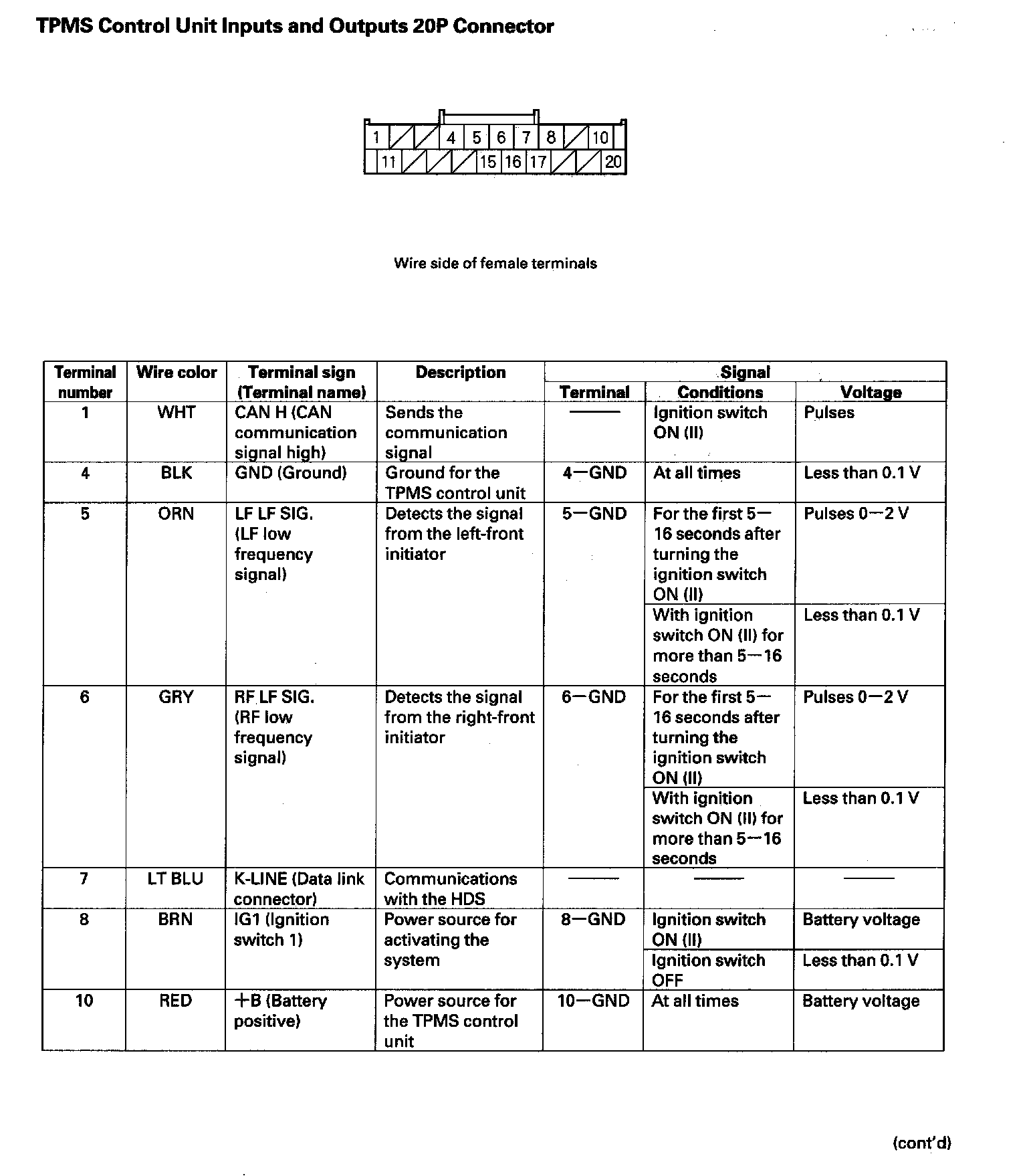

TPMS Control Unit Inputs And Outputs 20P Connector (Part 2):
