Electronic Brake Control Module
Electronic Brake Control Module
VSA Modulator-
control Unit
Inputs and Outputs for 46P Connector

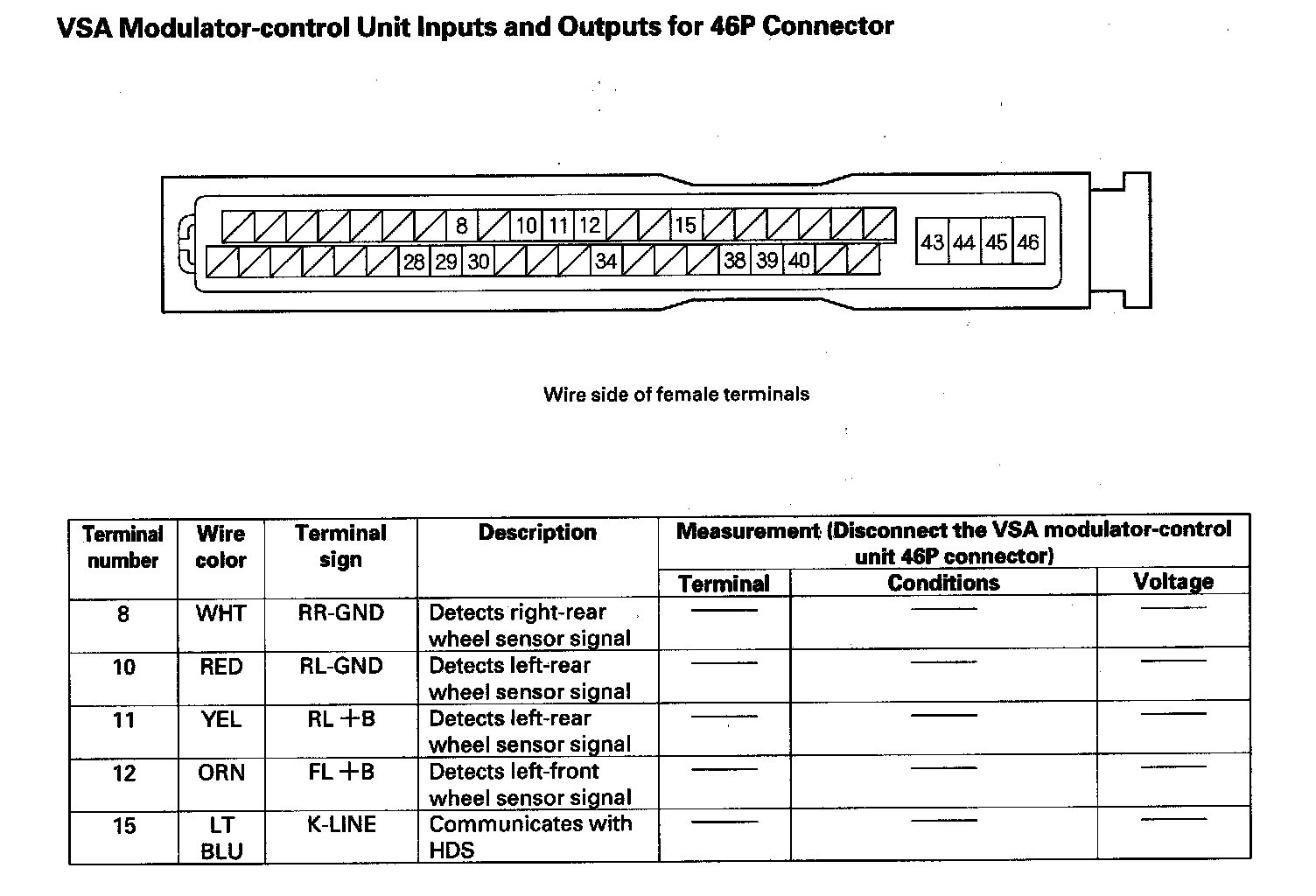

VSA Modulator-control Unit Inputs and Outputs for 46P Connector (Part 1):

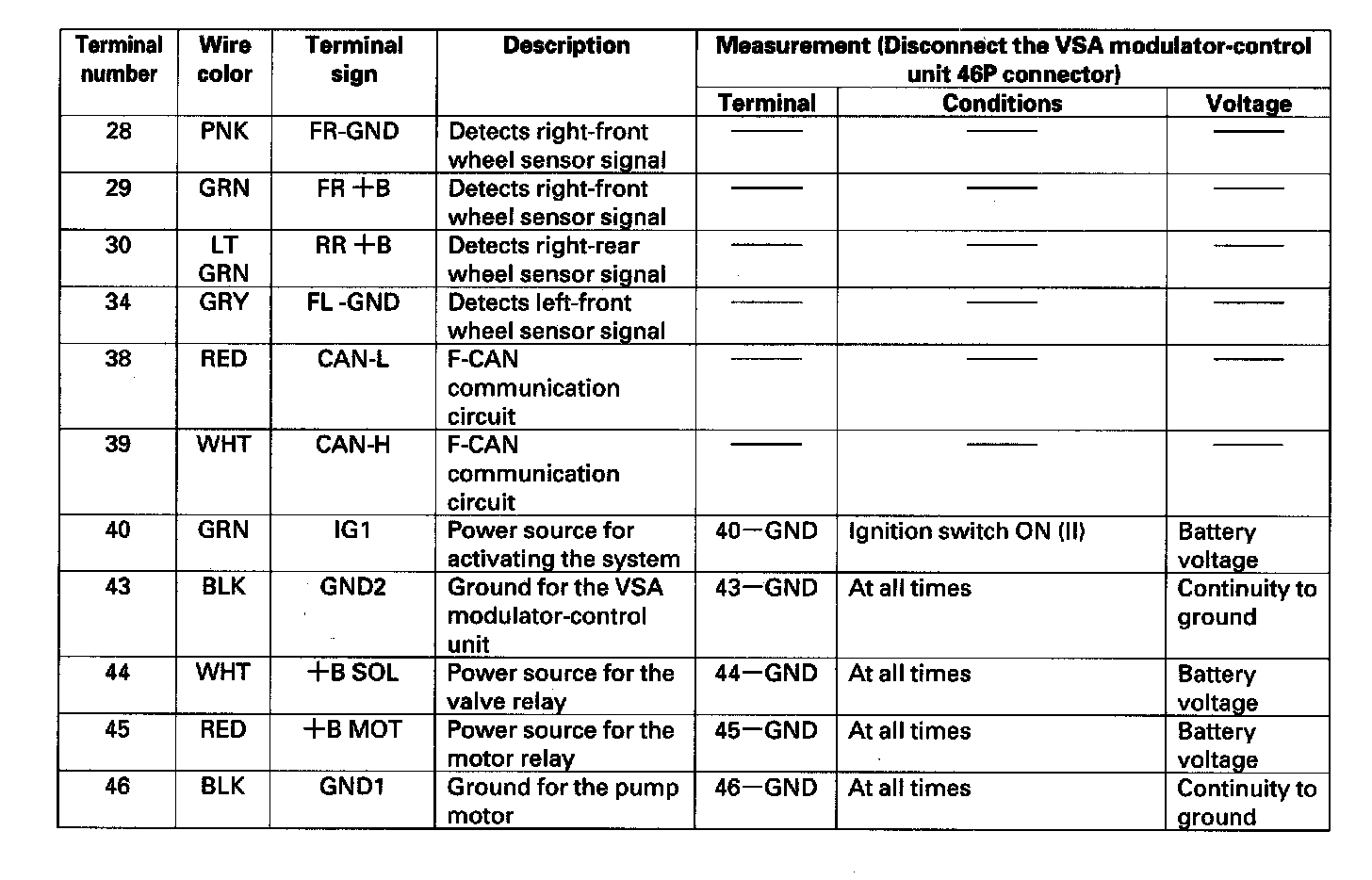

VSA Modulator-control Unit Inputs and Outputs for 46P Connector (Part 2):
