Component Locations

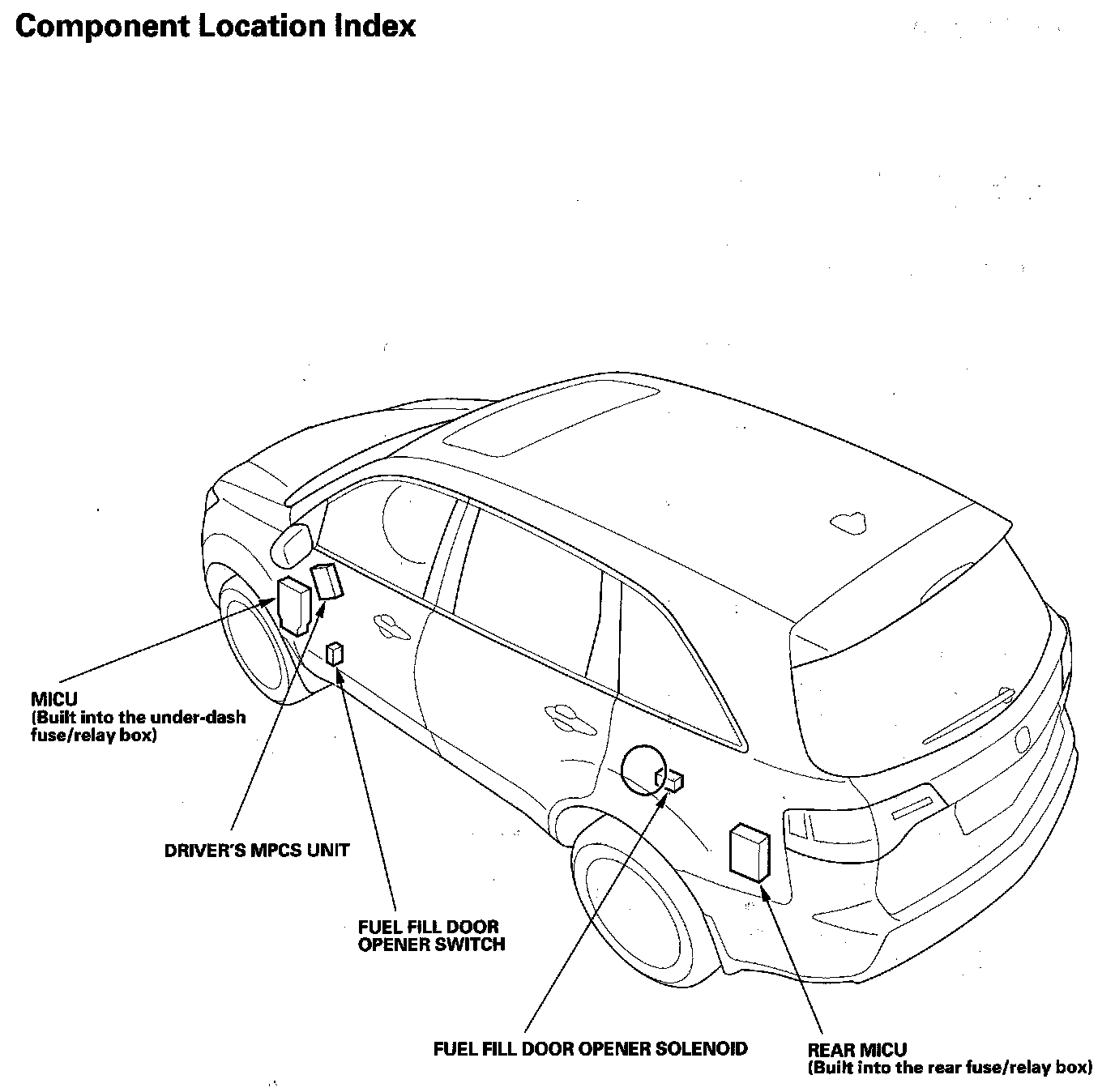

Fuel Fill Door Opener Component Location Index:

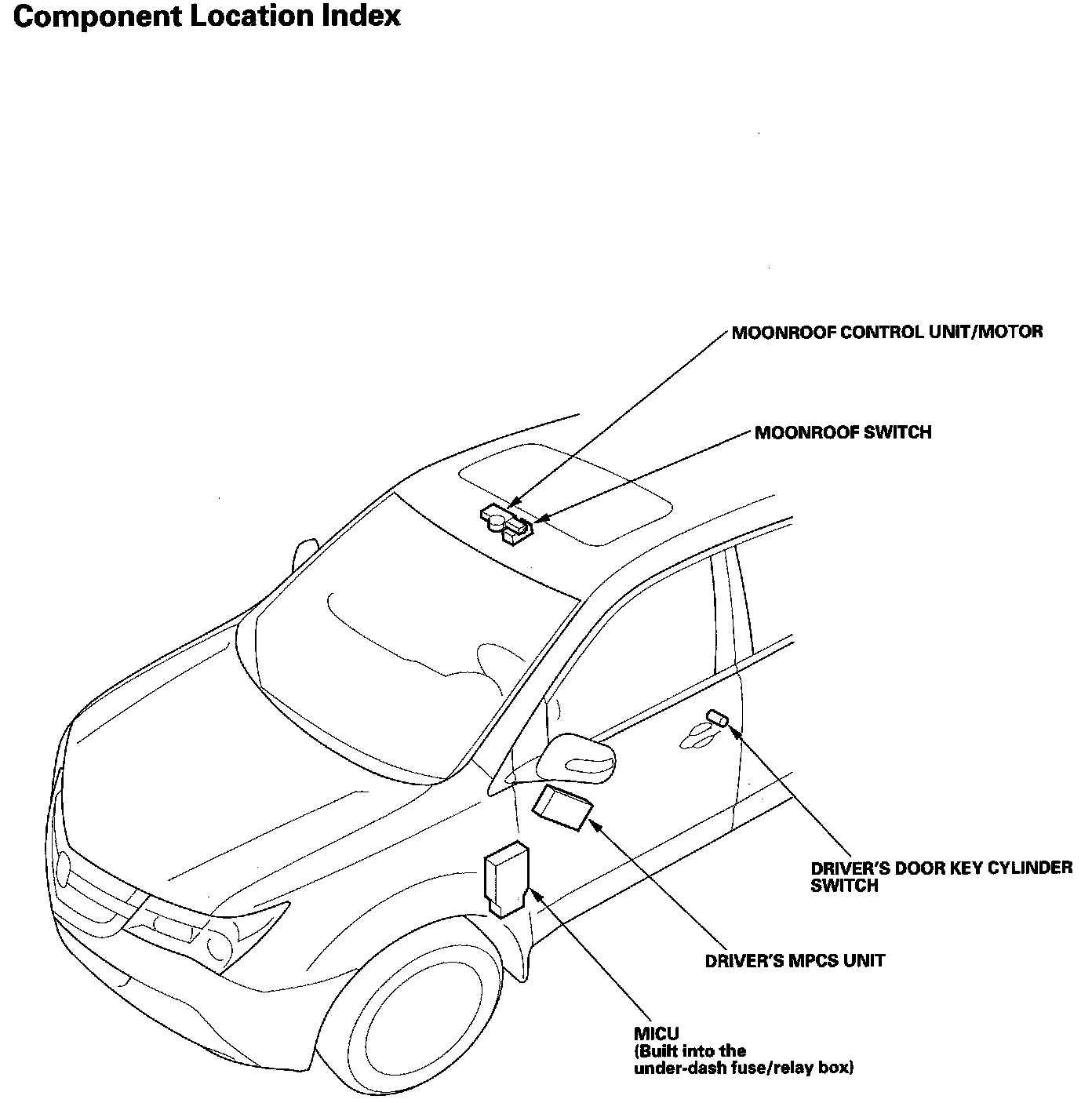

Moonroof Component Location Index:

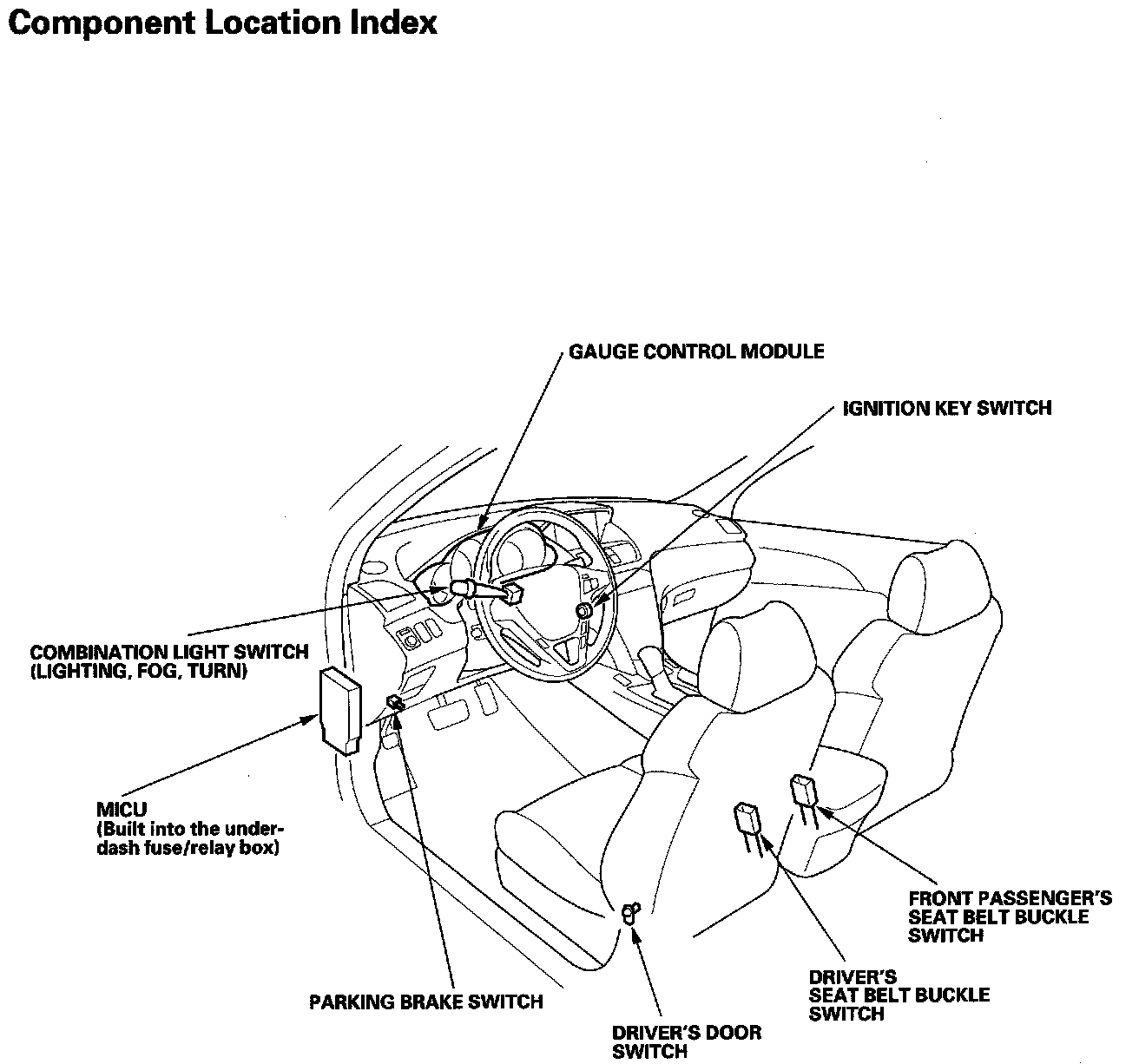

Reminder Systems Component Location Index:

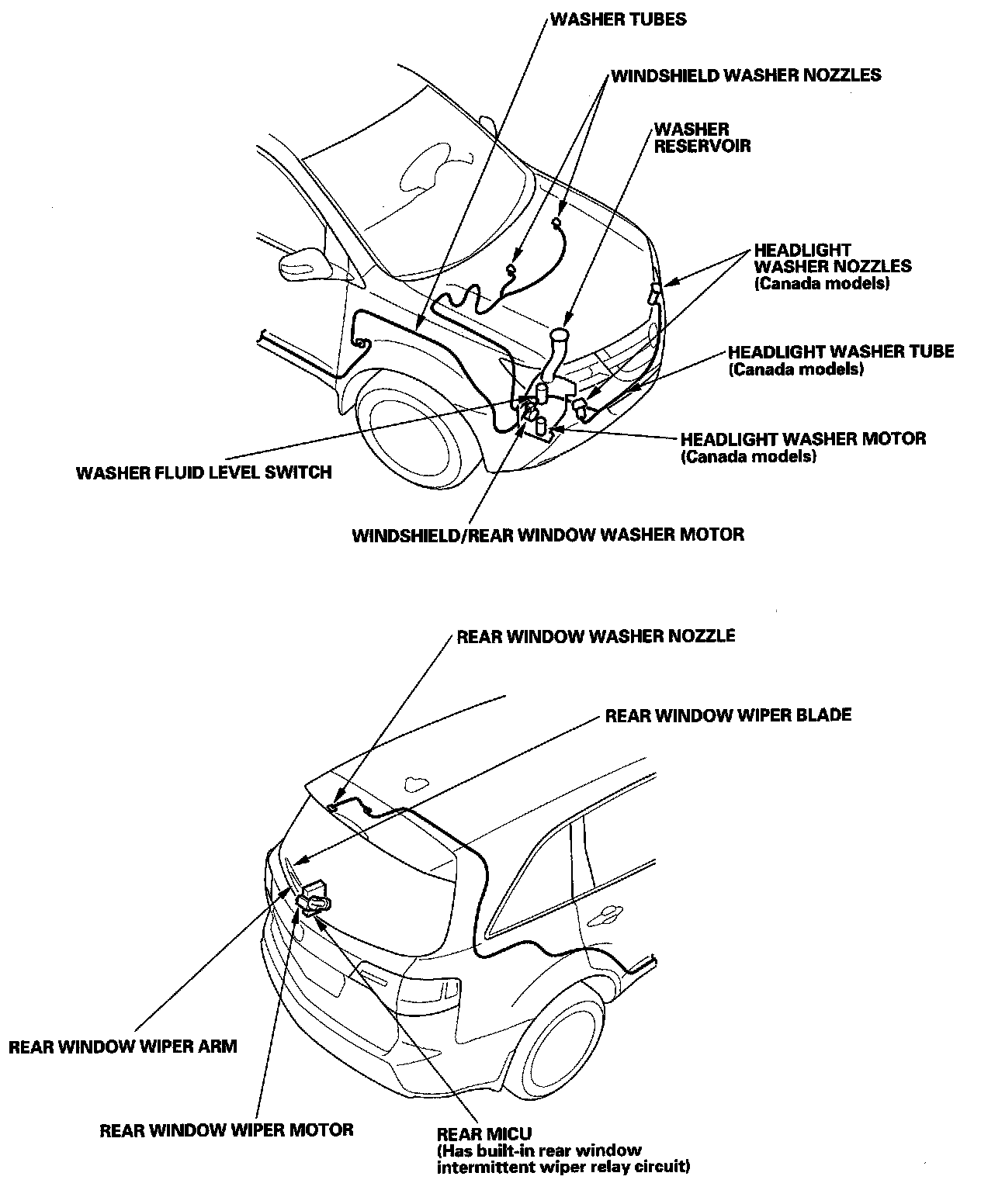

Wipers/Washers Component Location Index:



Keyless/Power Door Locks/Security System Component Location Index:

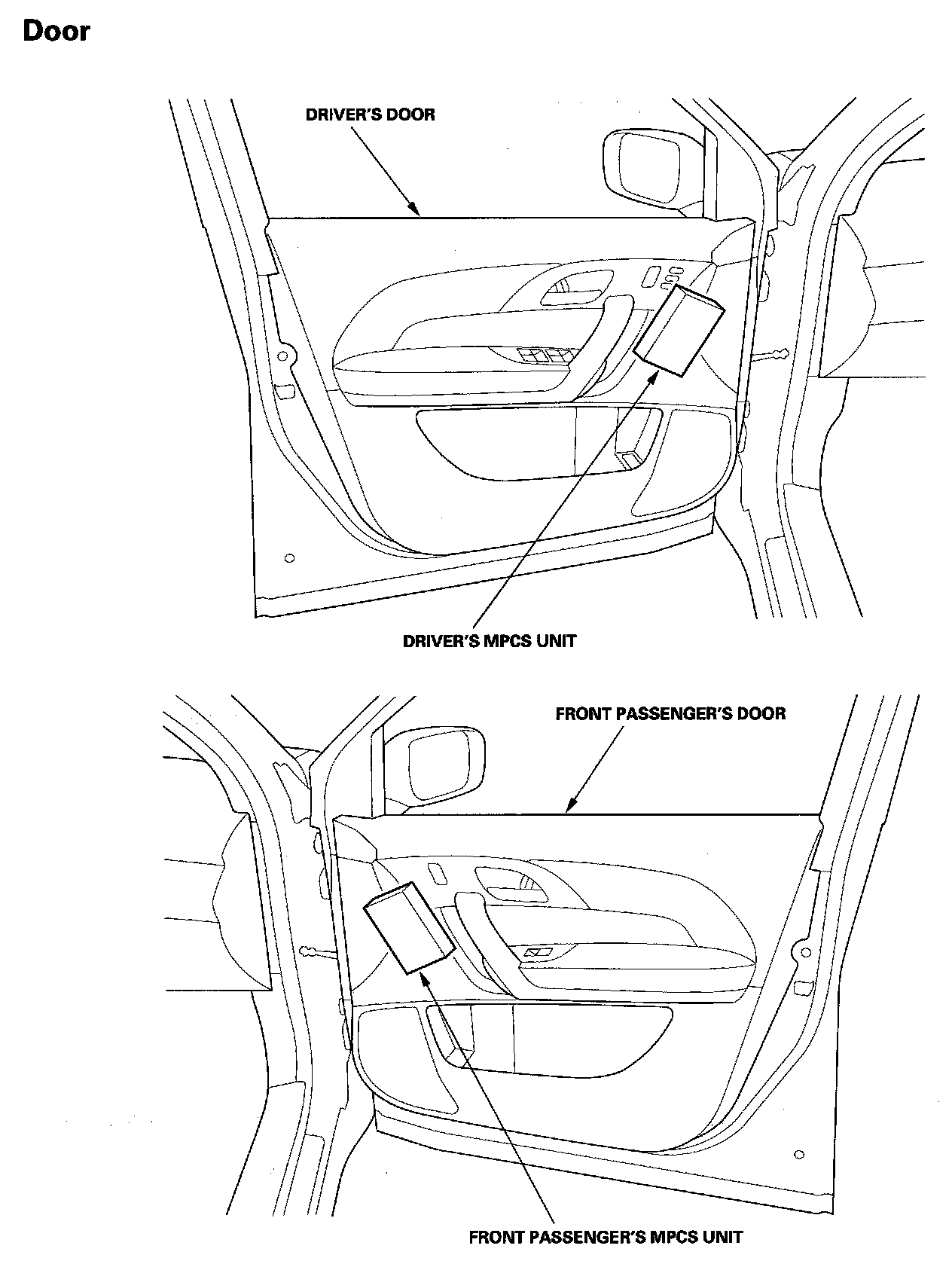

Relay and Control Unit Locations Door:



Relay and Control Unit Locations Rear:

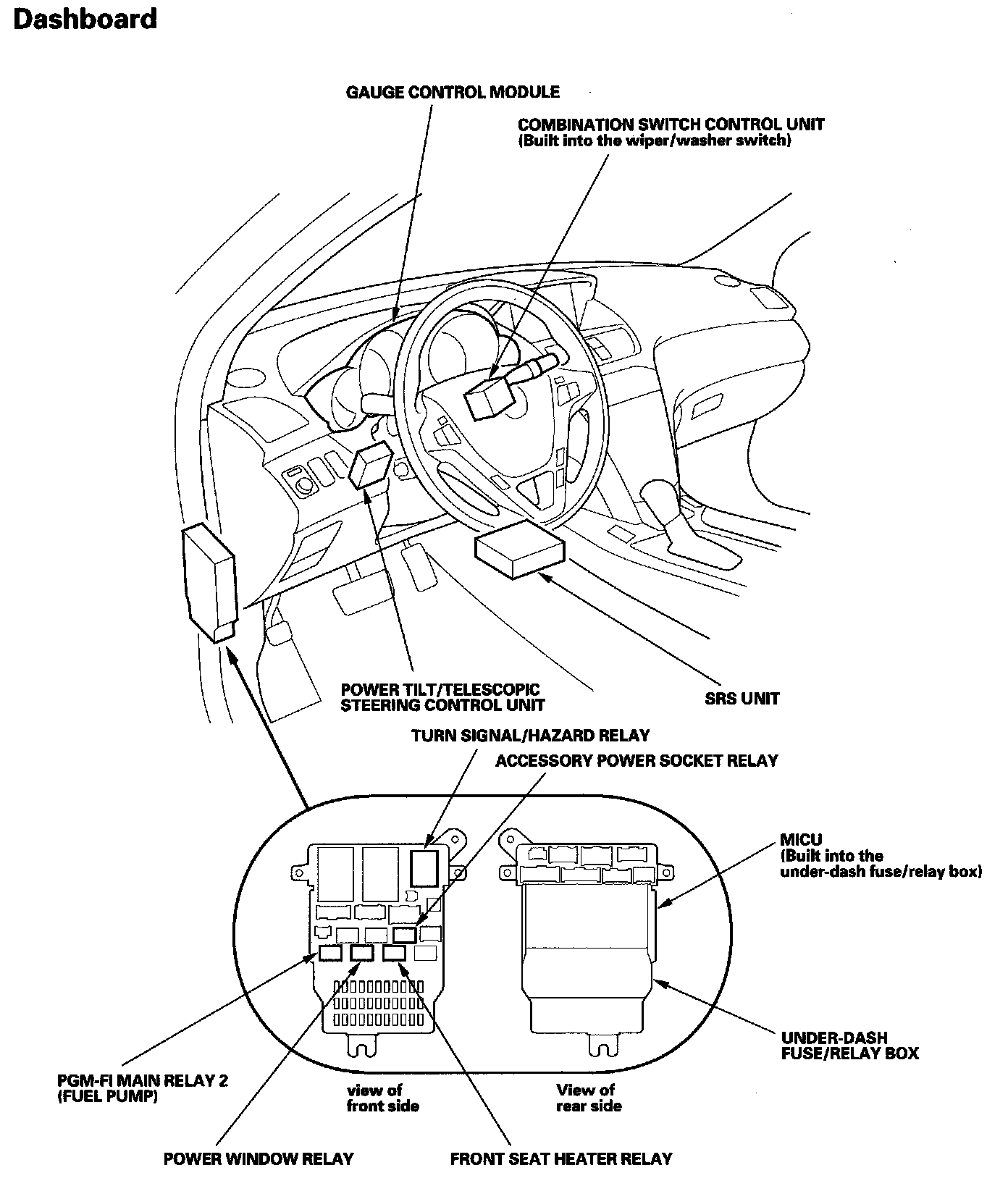

Relay and Control Unit Locations Dashboard:
