Under-Hood Fuse/Relay Box (Relay Control Module Part)
Under-Hood Fuse/Relay Box (Relay Control Module Part)

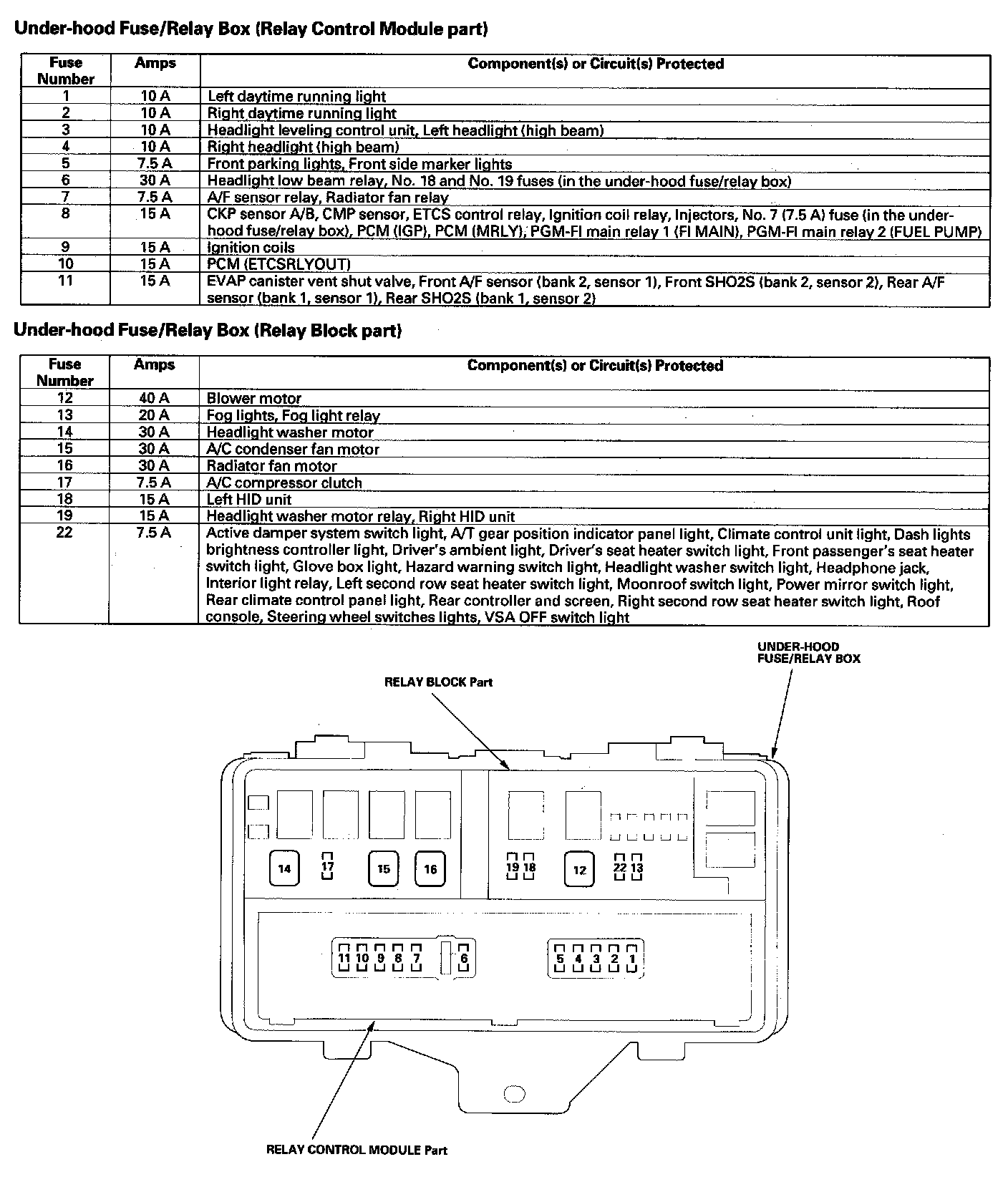

Under-hood Fuse/Relay Box (Relay Control Module Part)/Under-hood Fuse Relay Box (Relay Block Part):
