Home
>>
Acura
>>
2007
>>
TSX L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
Transmission Disassembly
Transmission Disassembly

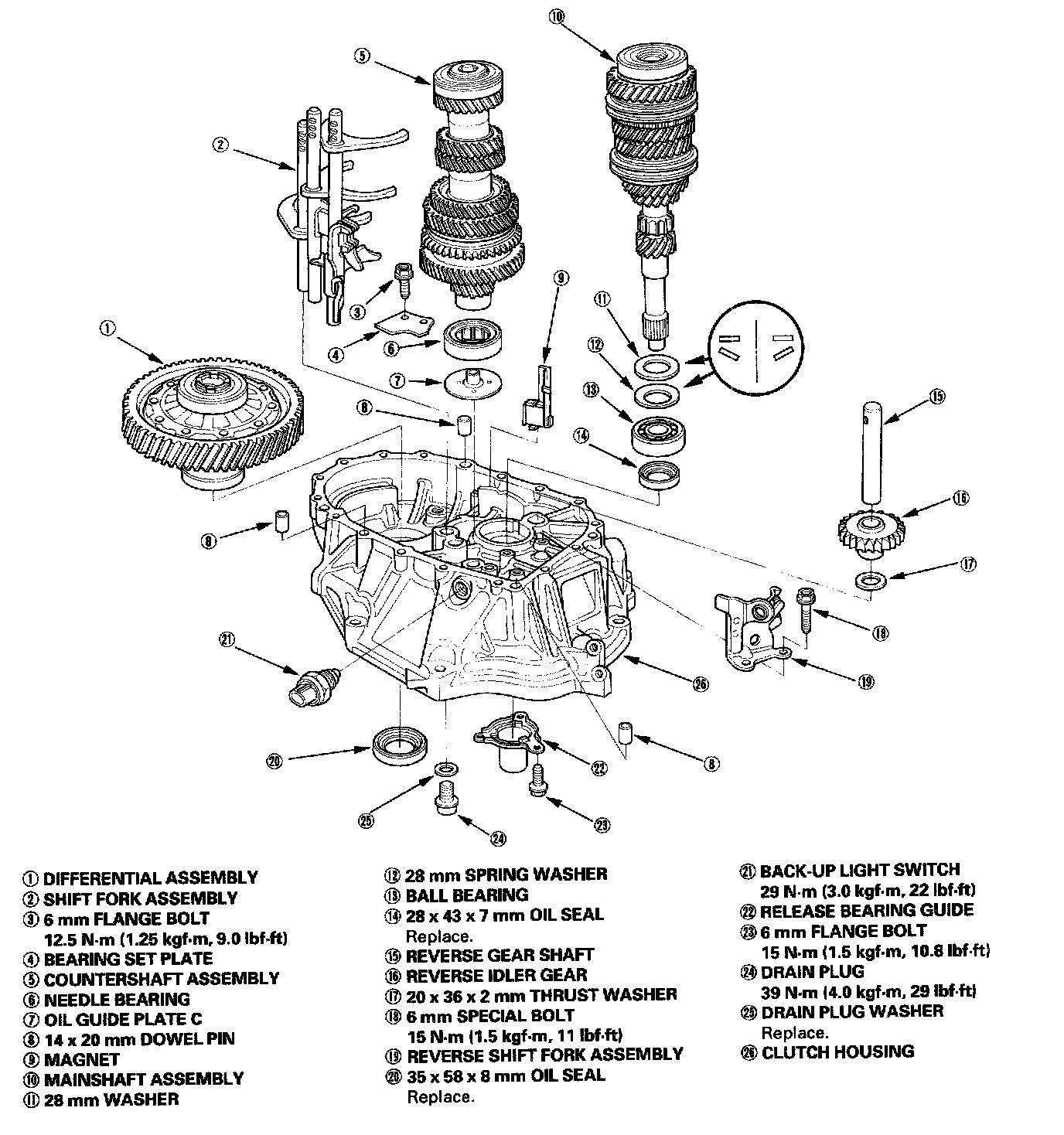

Exploded View - Clutch Housing

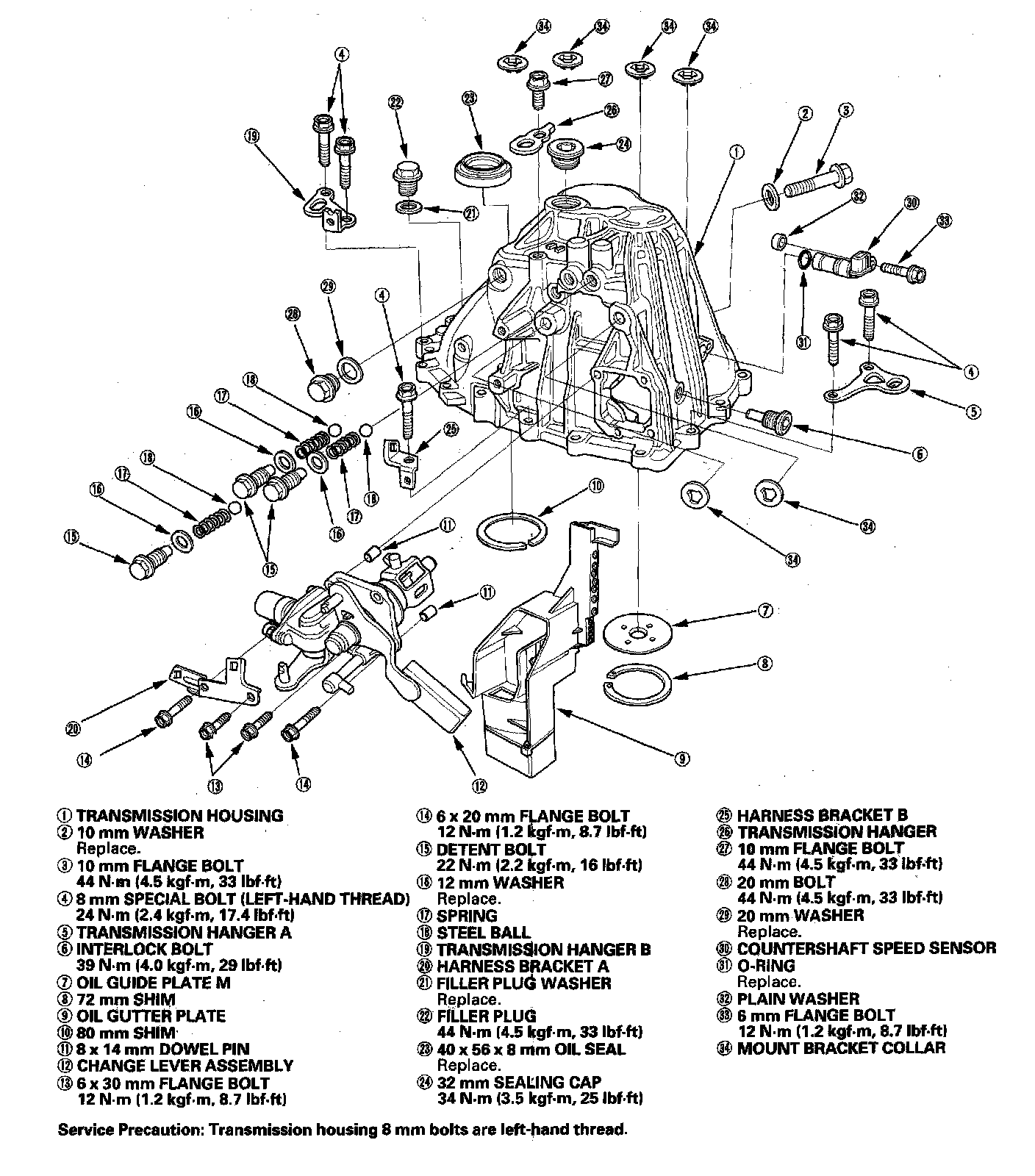

Exploded View - Transmission Housing
