Multiple Junction Connector

223. C558 (Junction Connector) ('06: USA, Navigation; '07-'08):

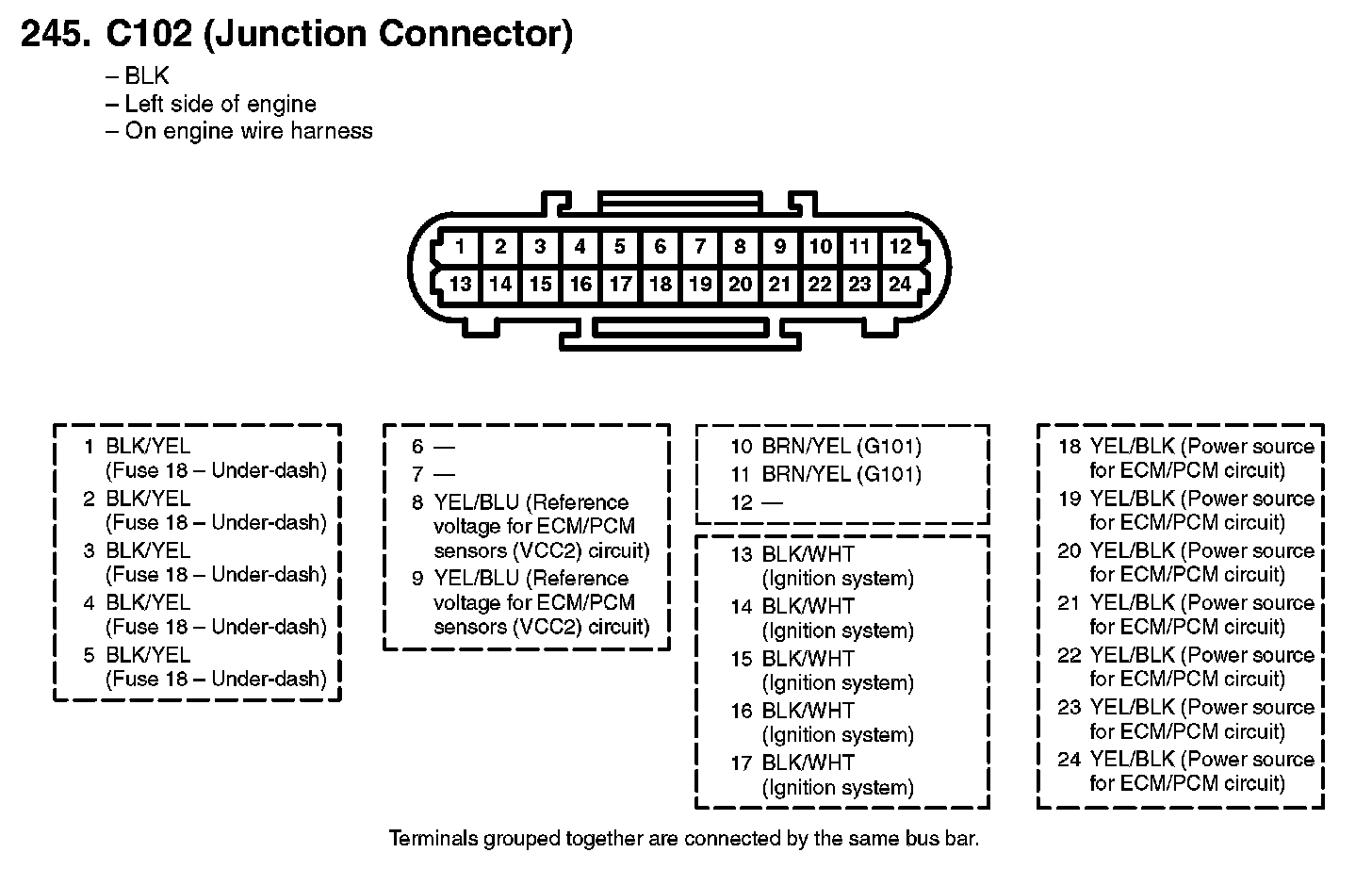

245. C102 (Junction Connector):

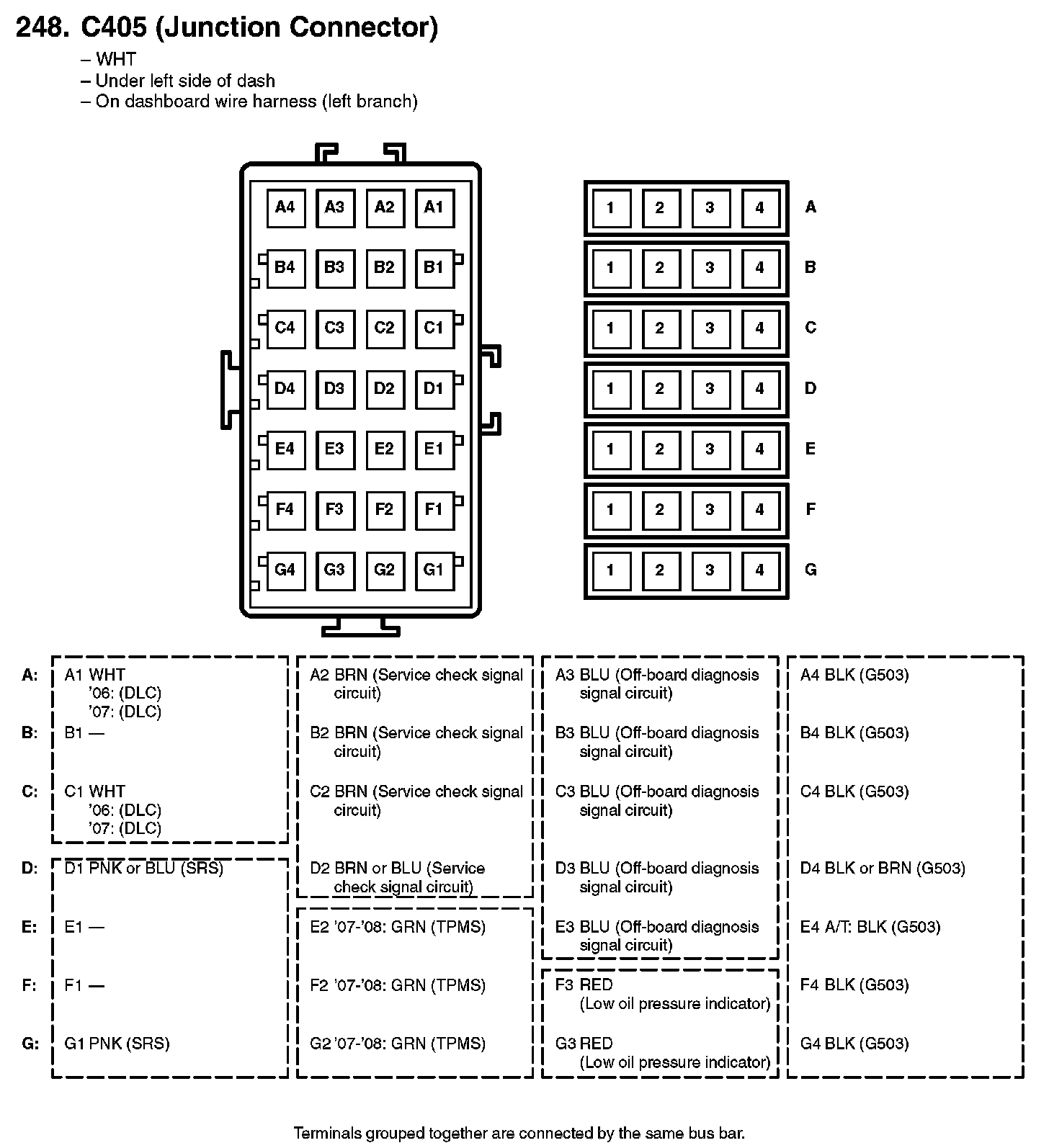

248. C405 (Junction Connector):

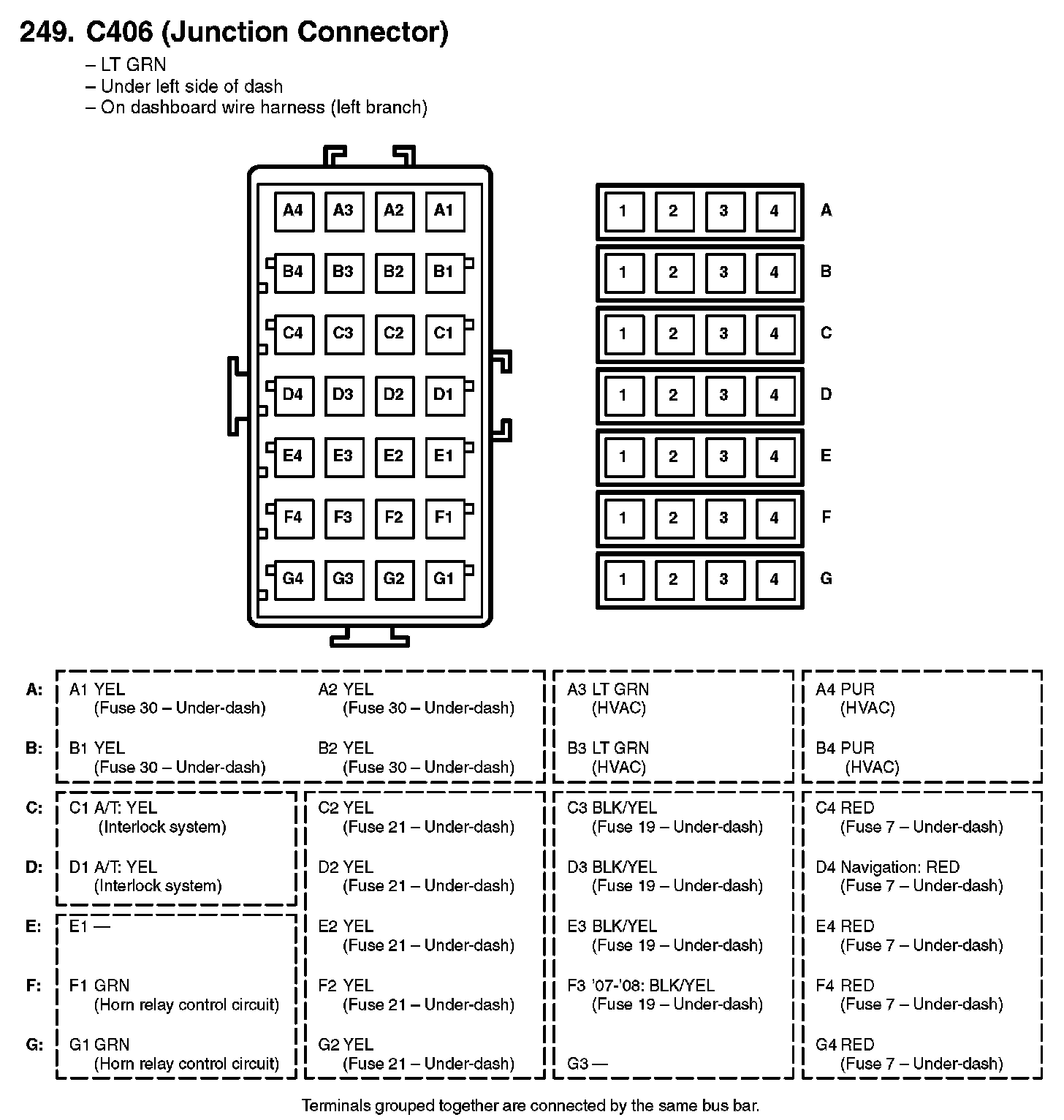

249. C406 (Junction Connector):

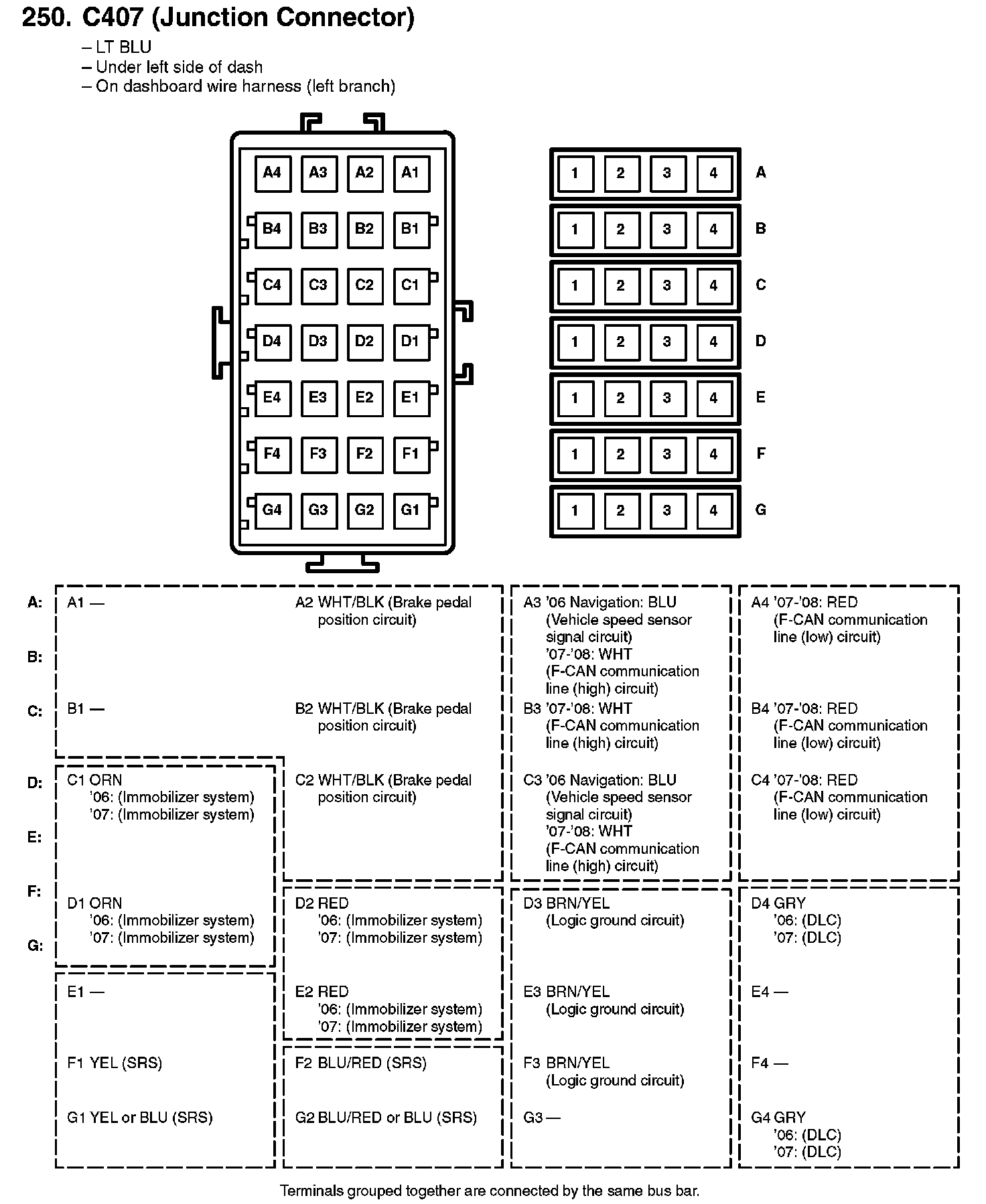

250. C407 (Junction Connector):

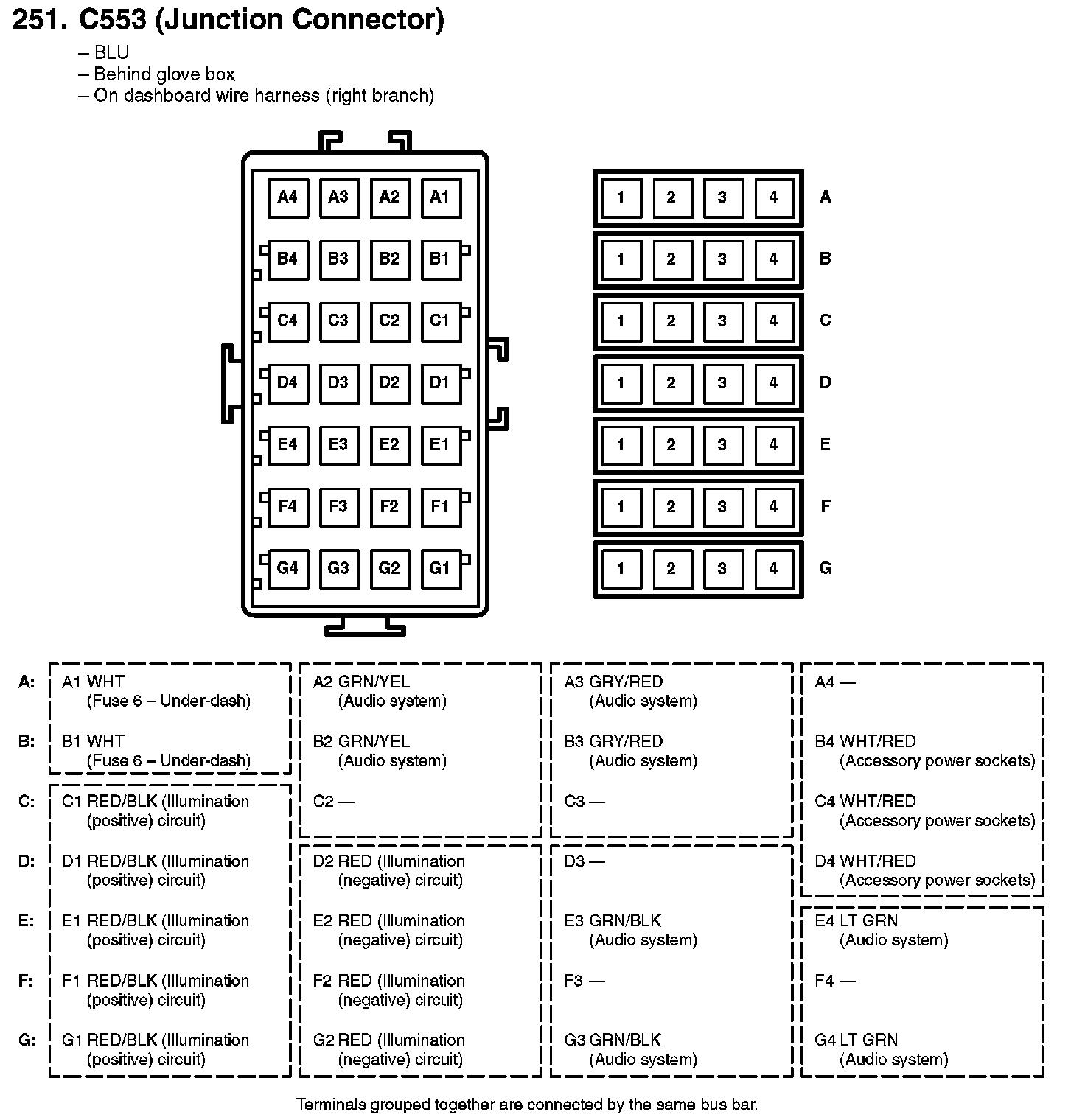

251. C553 (Junction Connector):

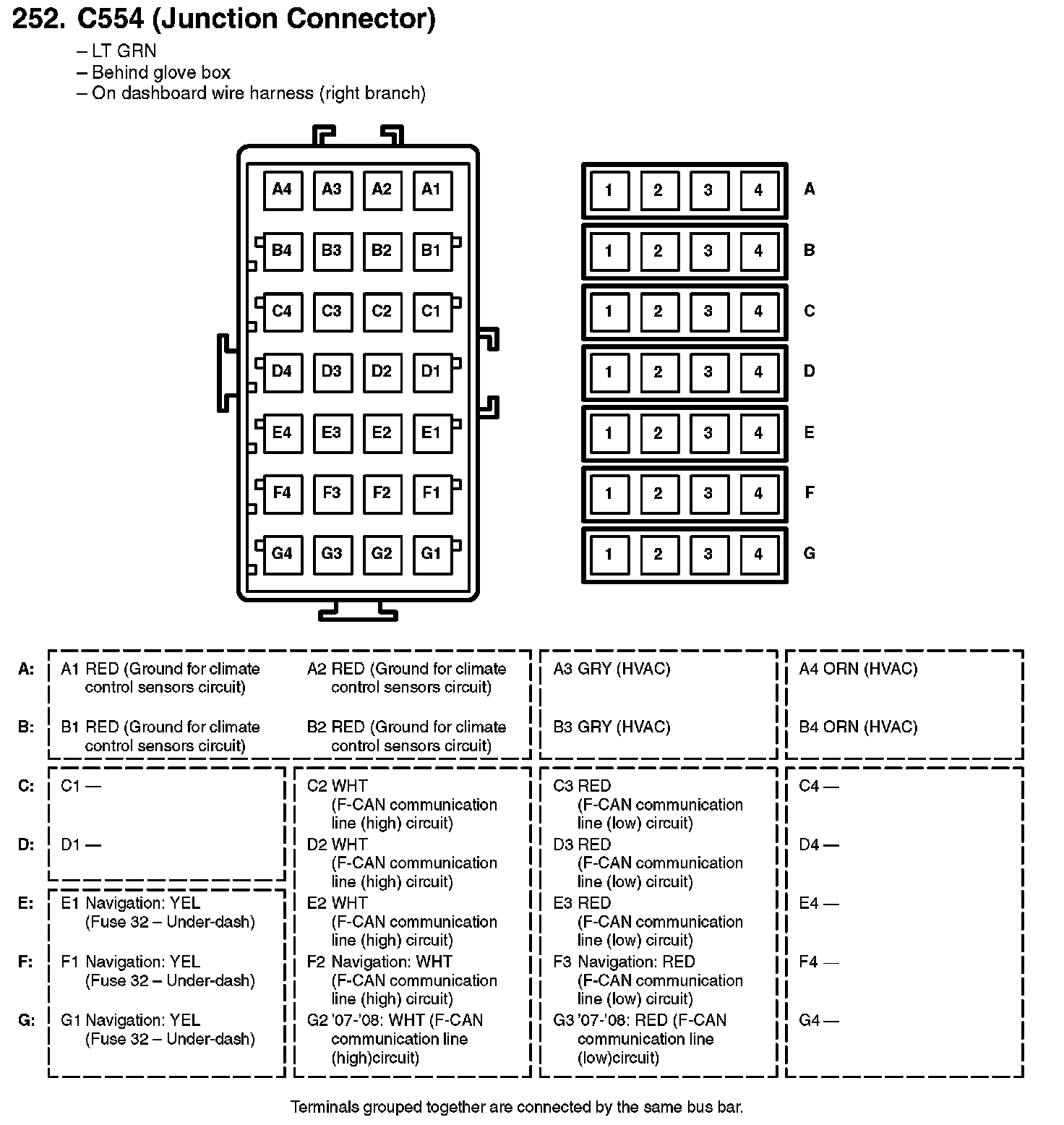

252. C554 (Junction Connector):

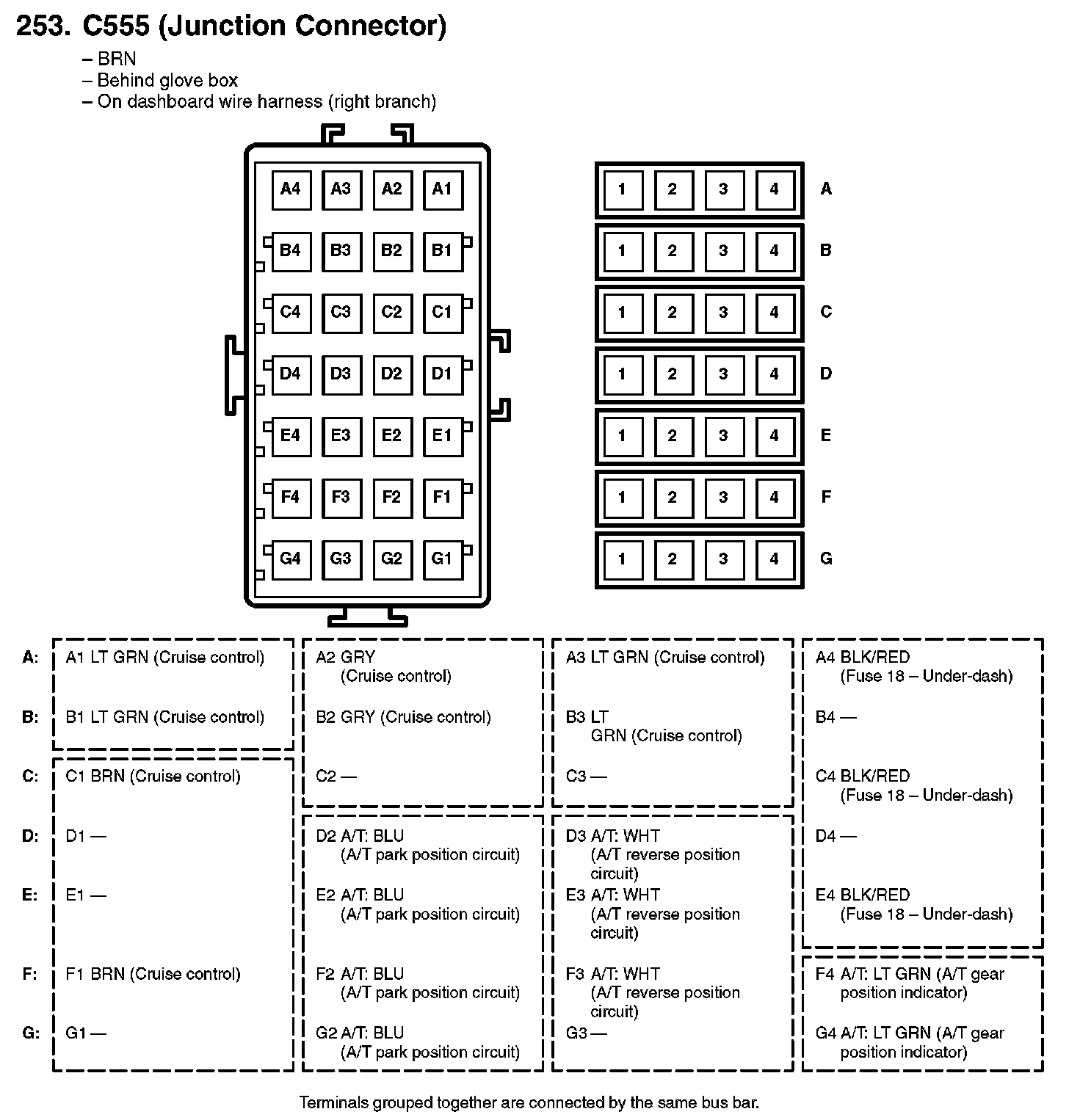

253. C555 (Junction Connector):

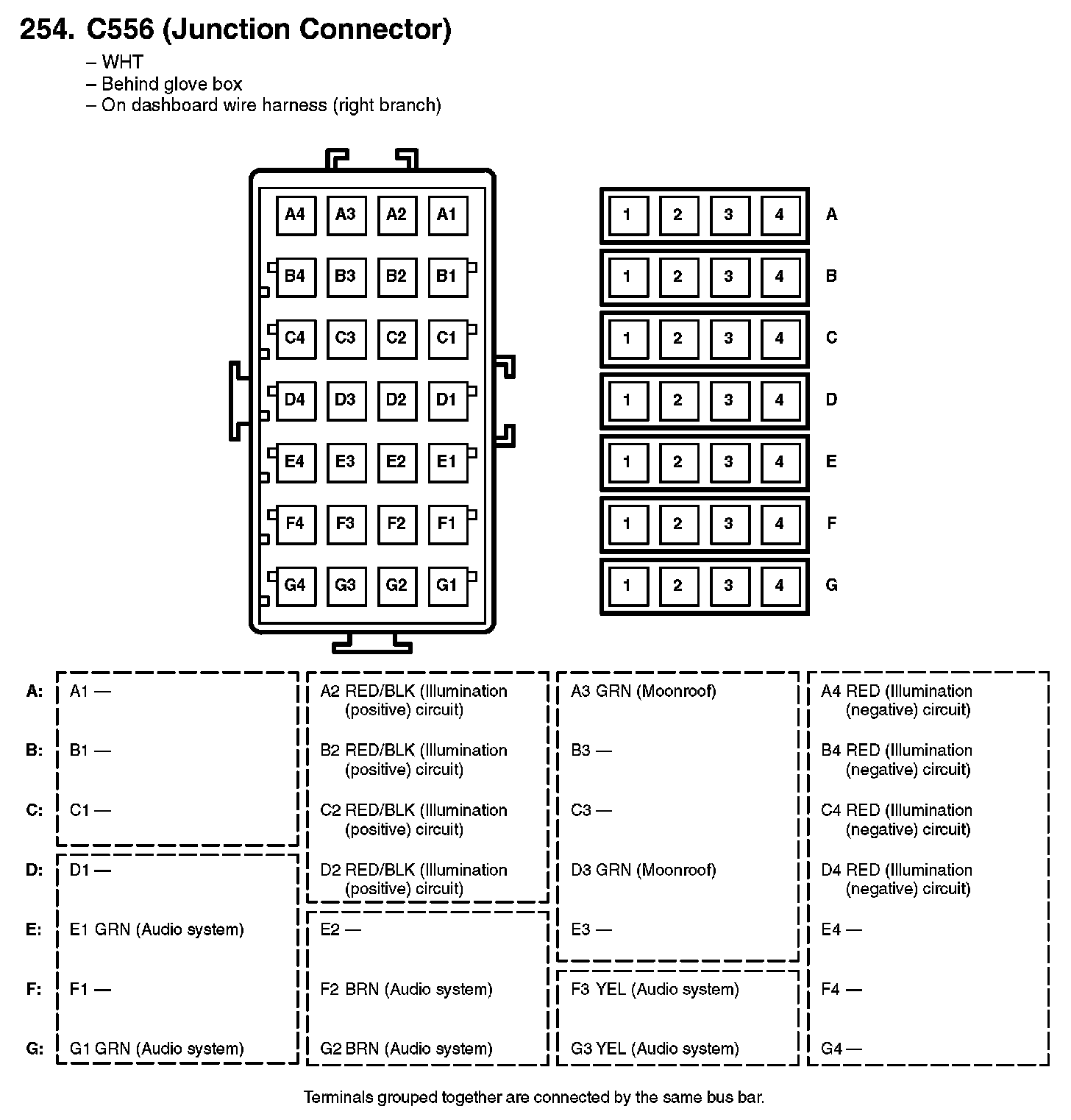

254. C556 (Junction Connector):
