PCM Electrical Connections '06 Model

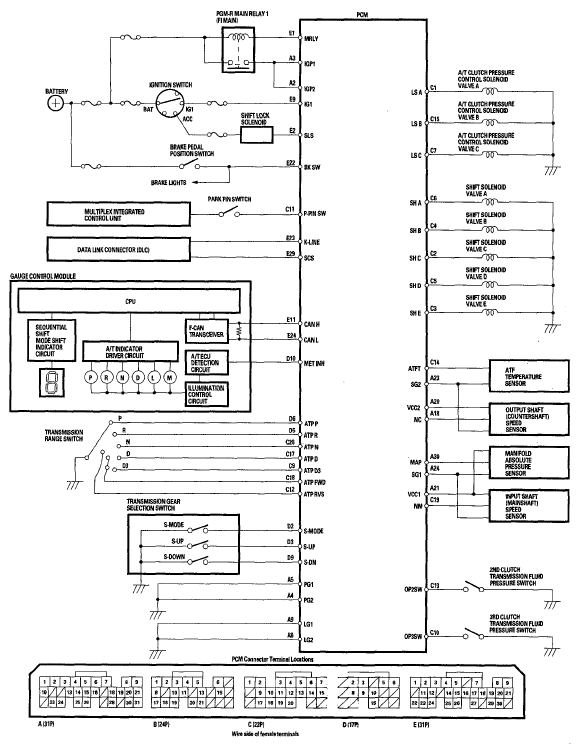

Fig 1: PCM Electrical Connections Circuit Diagram ('06 Model)

G05491169

Courtesy of AMERICAN HONDA MOTOR CO., INC.
