System Diagram

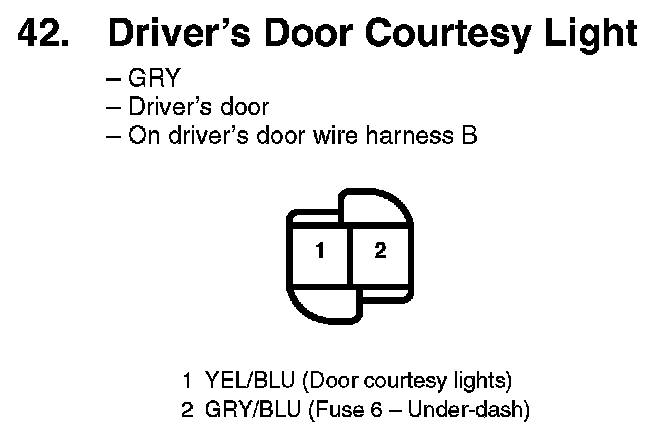

42. Driver's Door Courtesy Light:

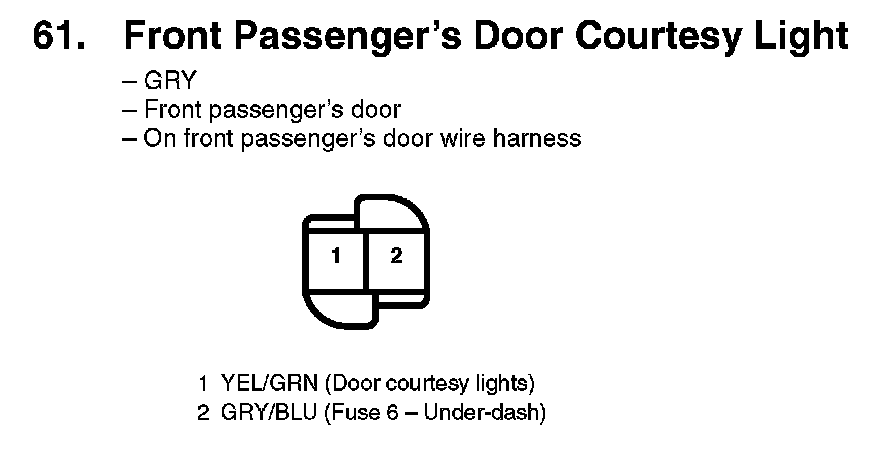

61. Front Passenger's Door Courtesy Light:

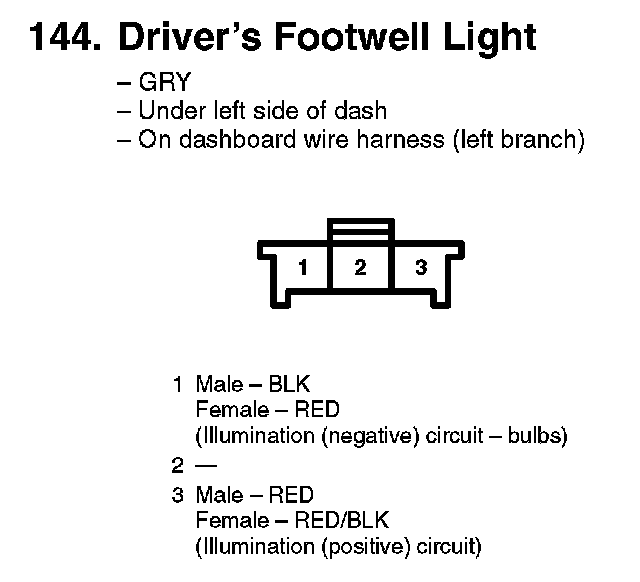

144. Driver's Footwell Light:



149. Front Passenger's Footwell Light:
