Home >> Acura >> 2007 >> TL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 176-200 >> 177

View 176-200: 177

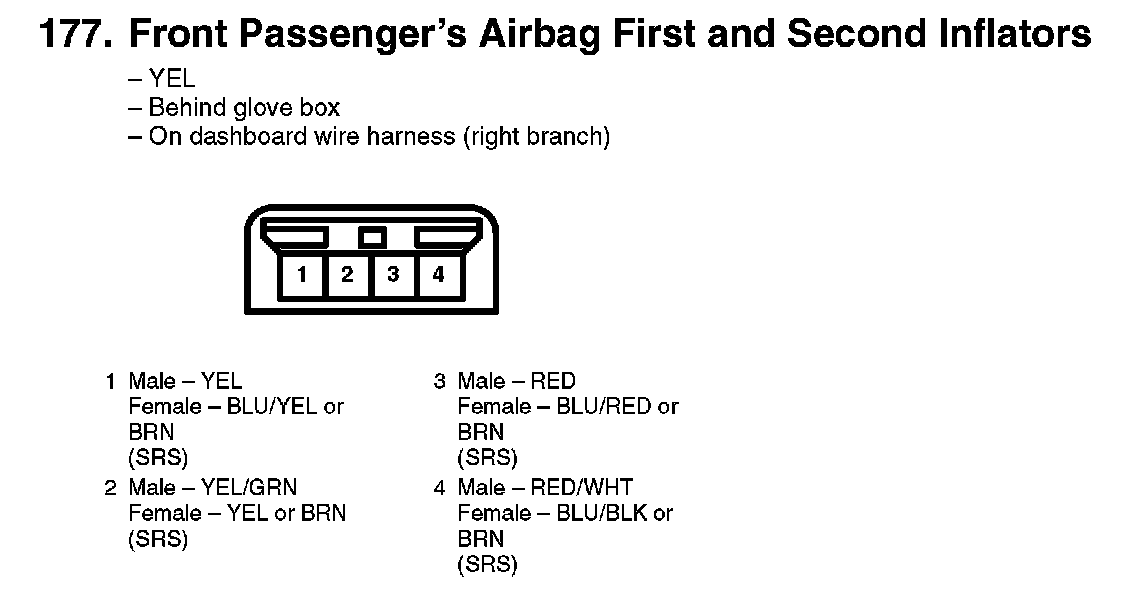

177. Front Passenger's Airbag First And Second Inflators:
