View 1-25: 17

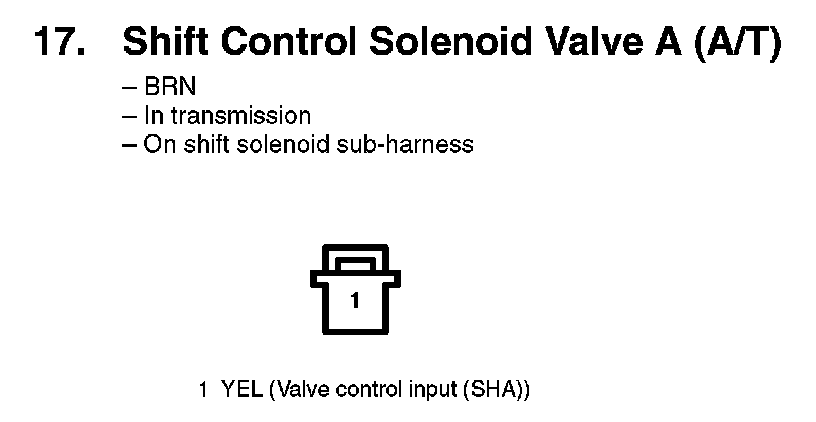

17. Shift Control Solenoid Valve A (A/T):

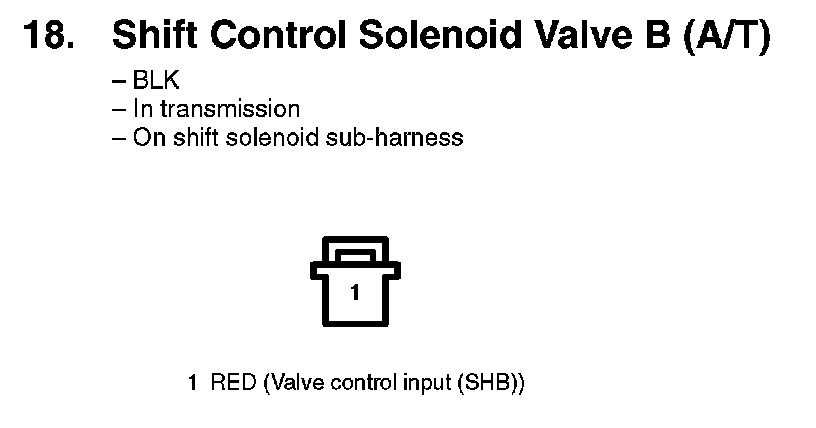

18. Shift Control Solenoid Valve B (A/T):



19. Shift Control Solenoid Valve C (A/T):

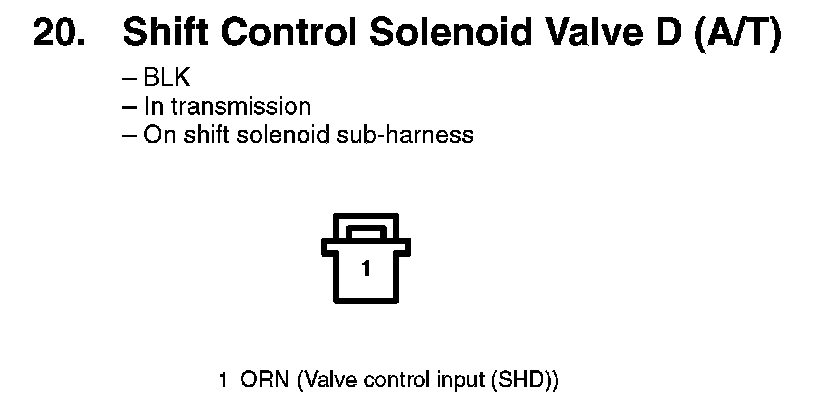

20. Shift Control Solenoid Valve D (A/T):
