Home >> Acura >> 2007 >> TL V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 301-325 >> 310

View 301-325: 310

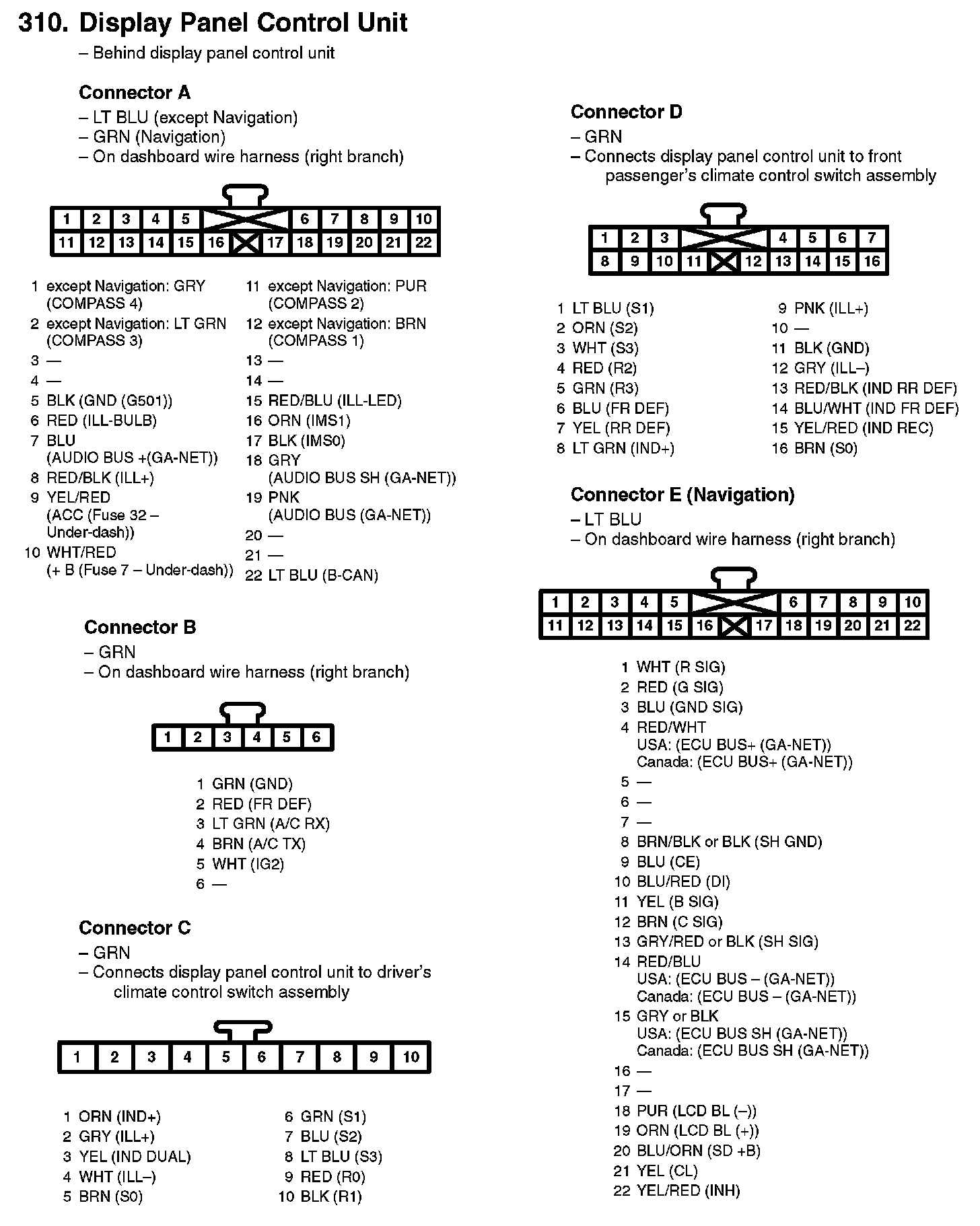

310. Display Panel Control Unit:
