Overview
>>
System Diagram
System Diagram

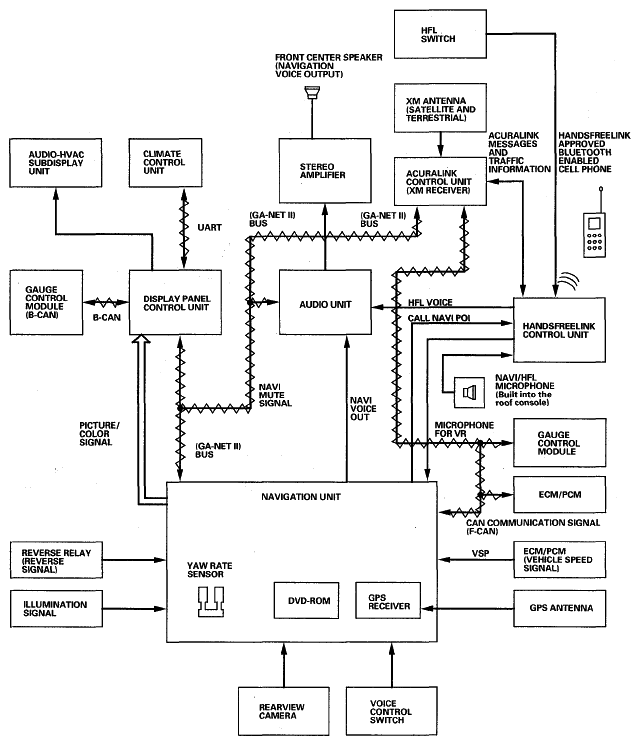

Fig 1: Navigation System - System Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
