Air Bag Control Module: Locations

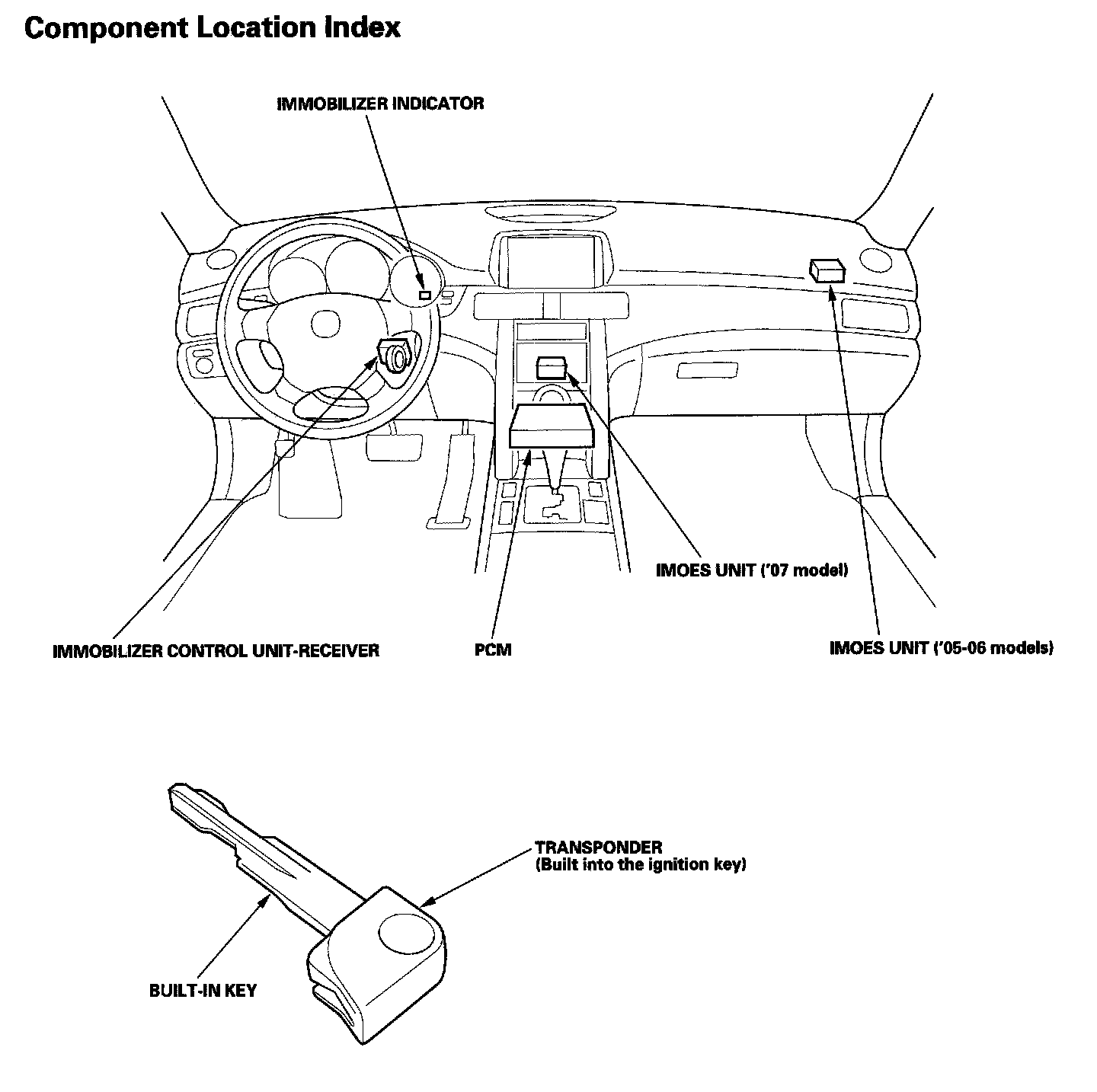

Immobilizer System Component Location Index:



Relay And Control Unit Locations Dashboard:



Relay And Control Unit Locations Seat:

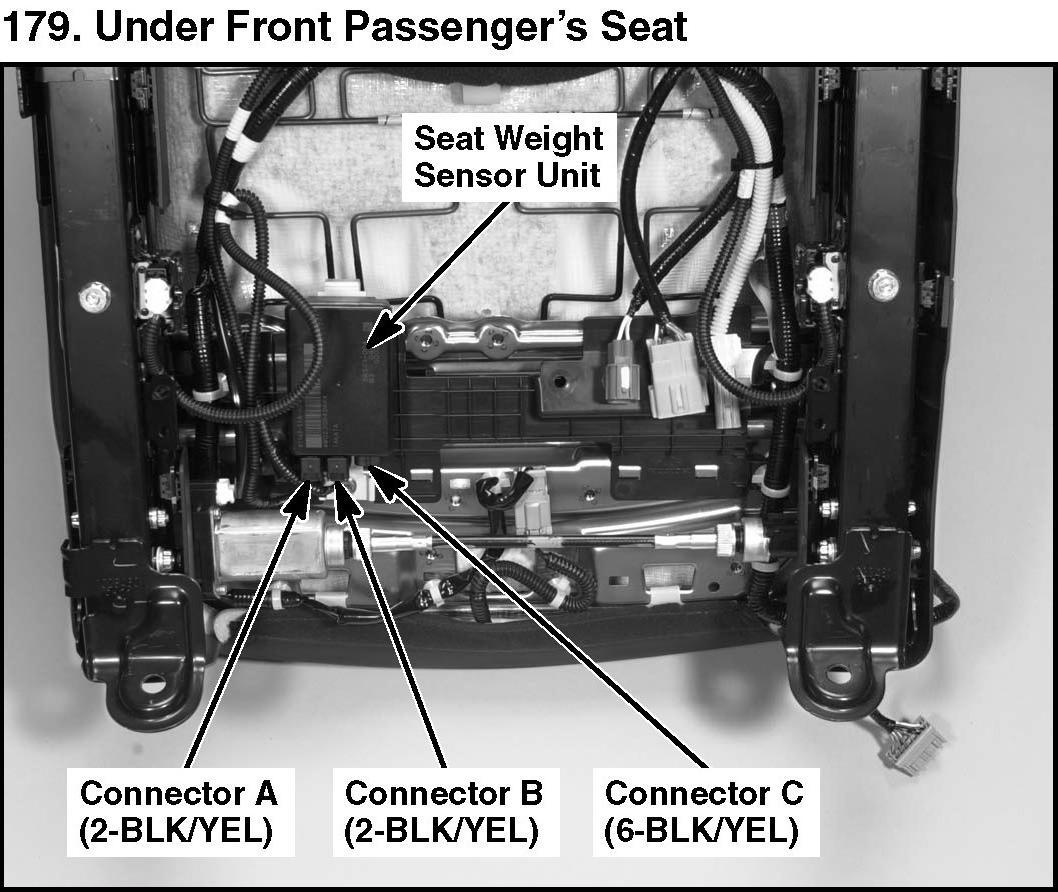

179. Under Front Passenger's Seat:

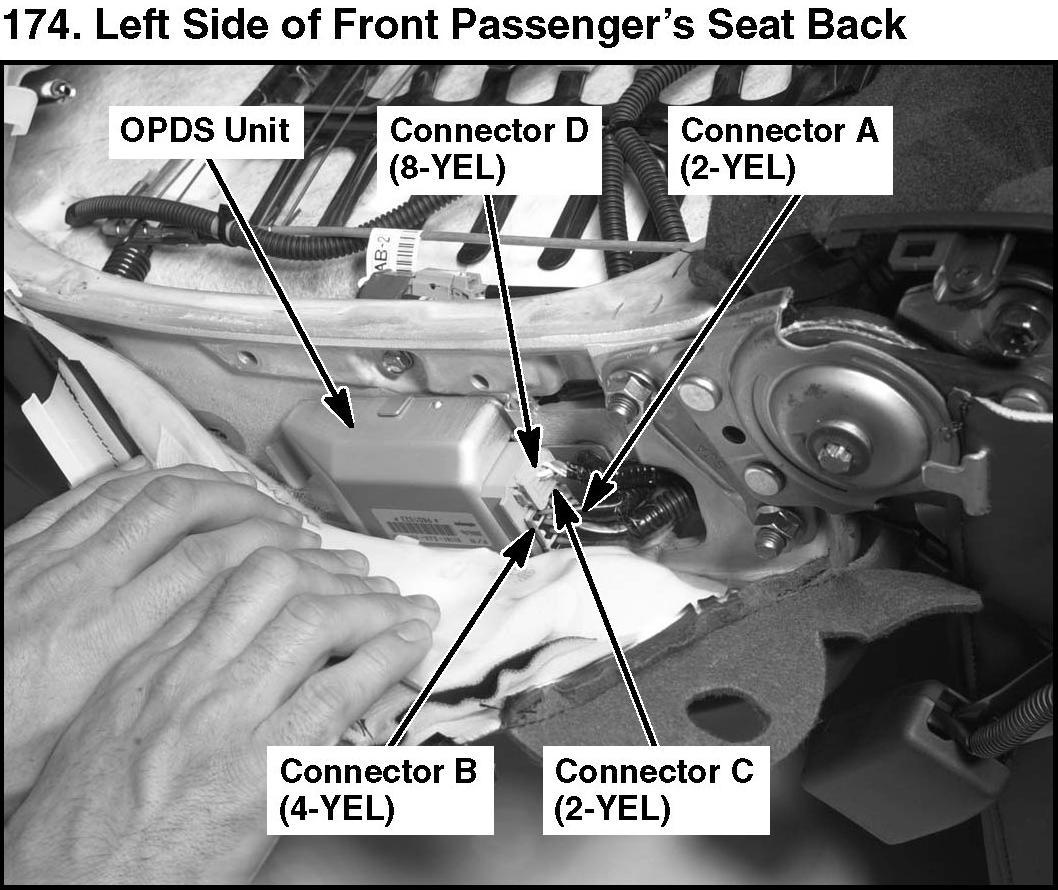

174. Left Side Of Front Passenger's Seat Back:

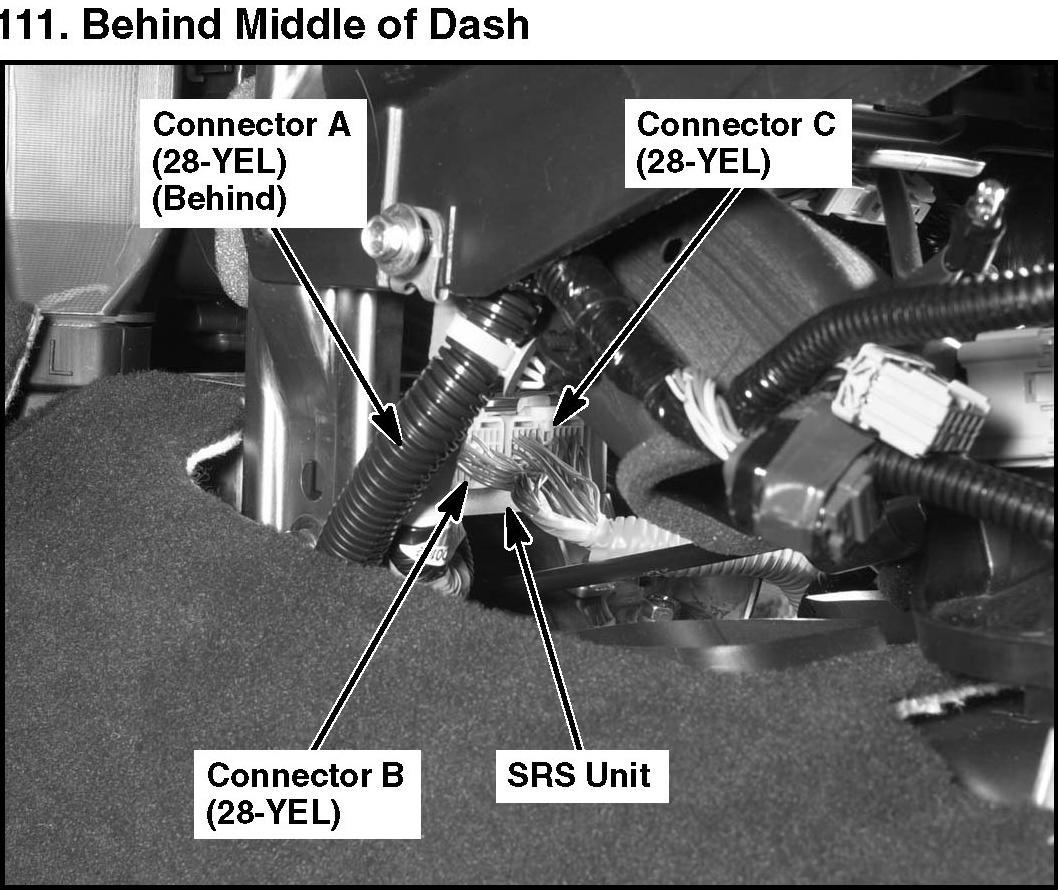

111. Behind Middle Of Dash:
