Pinout Values and Diagnostic Parameters

PCM A/T Control System Inputs and Outputs

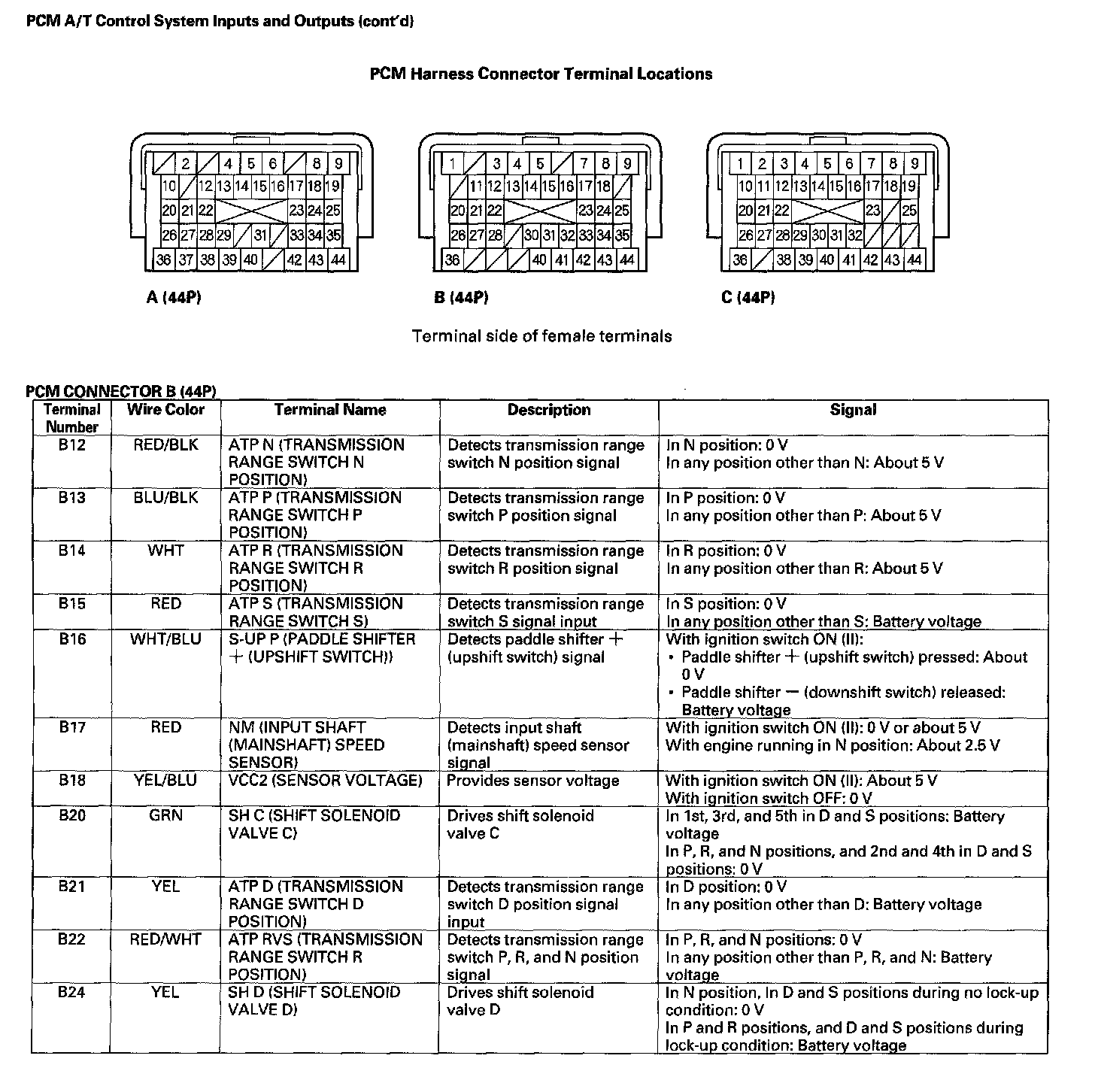

PCM A/T Control System Inputs And Outputs (Part 1):

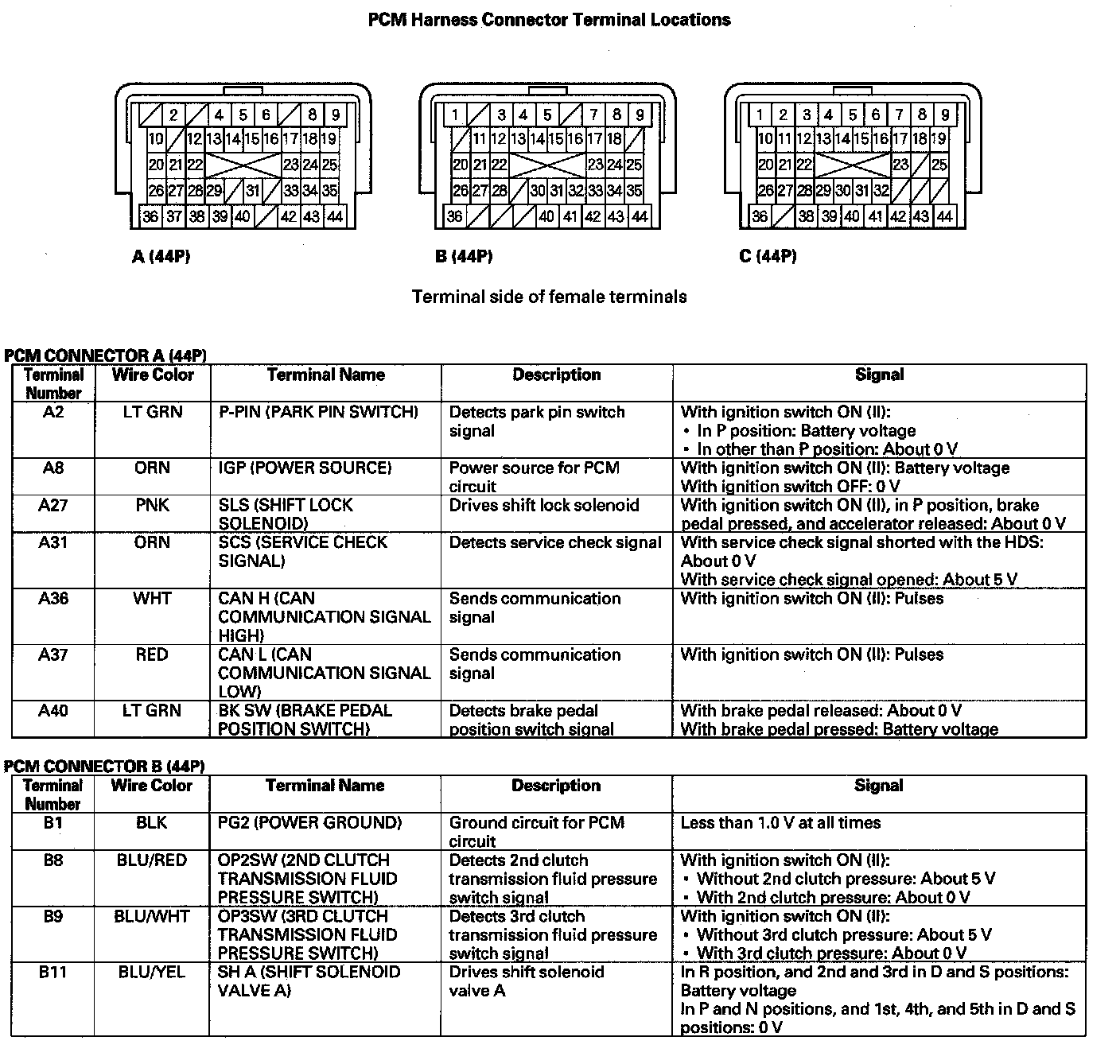

PCM A/T Control System Inputs And Outputs (Part 2):

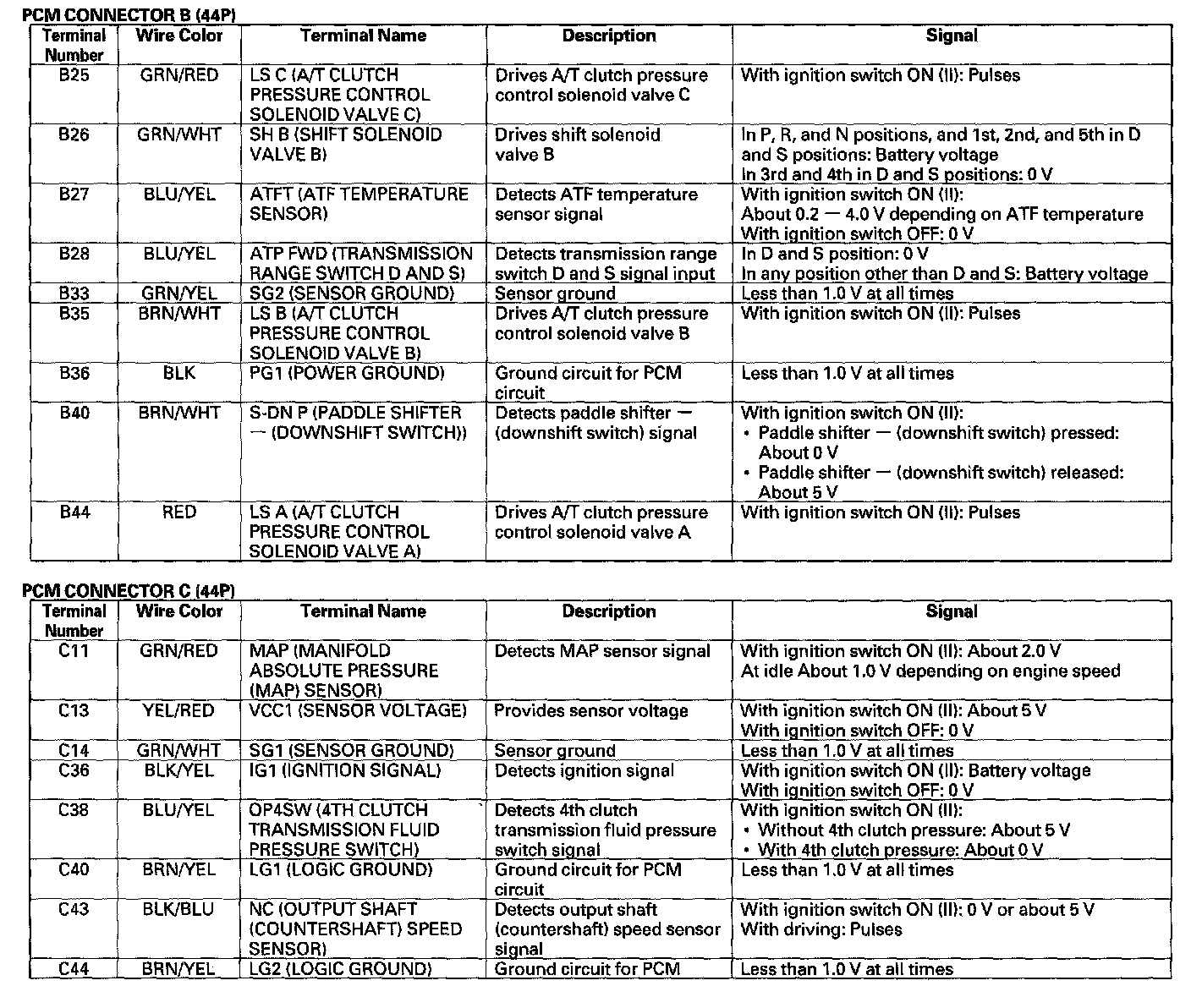

PCM A/T Control System Inputs And Outputs (Part 3):
