Cylinder Head Assembly

Component Location Index

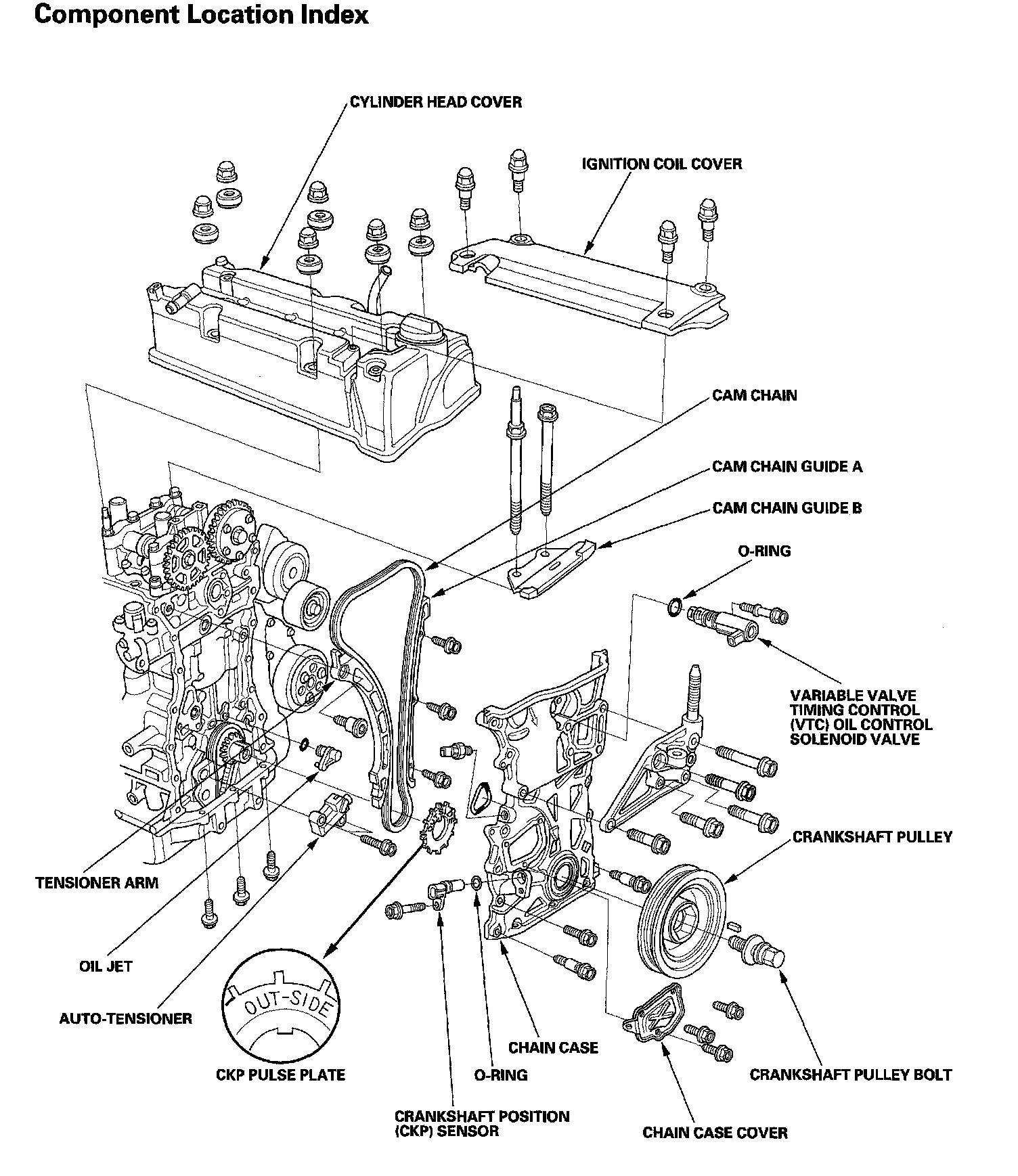

Cylinder Head Location Index (Part 1):

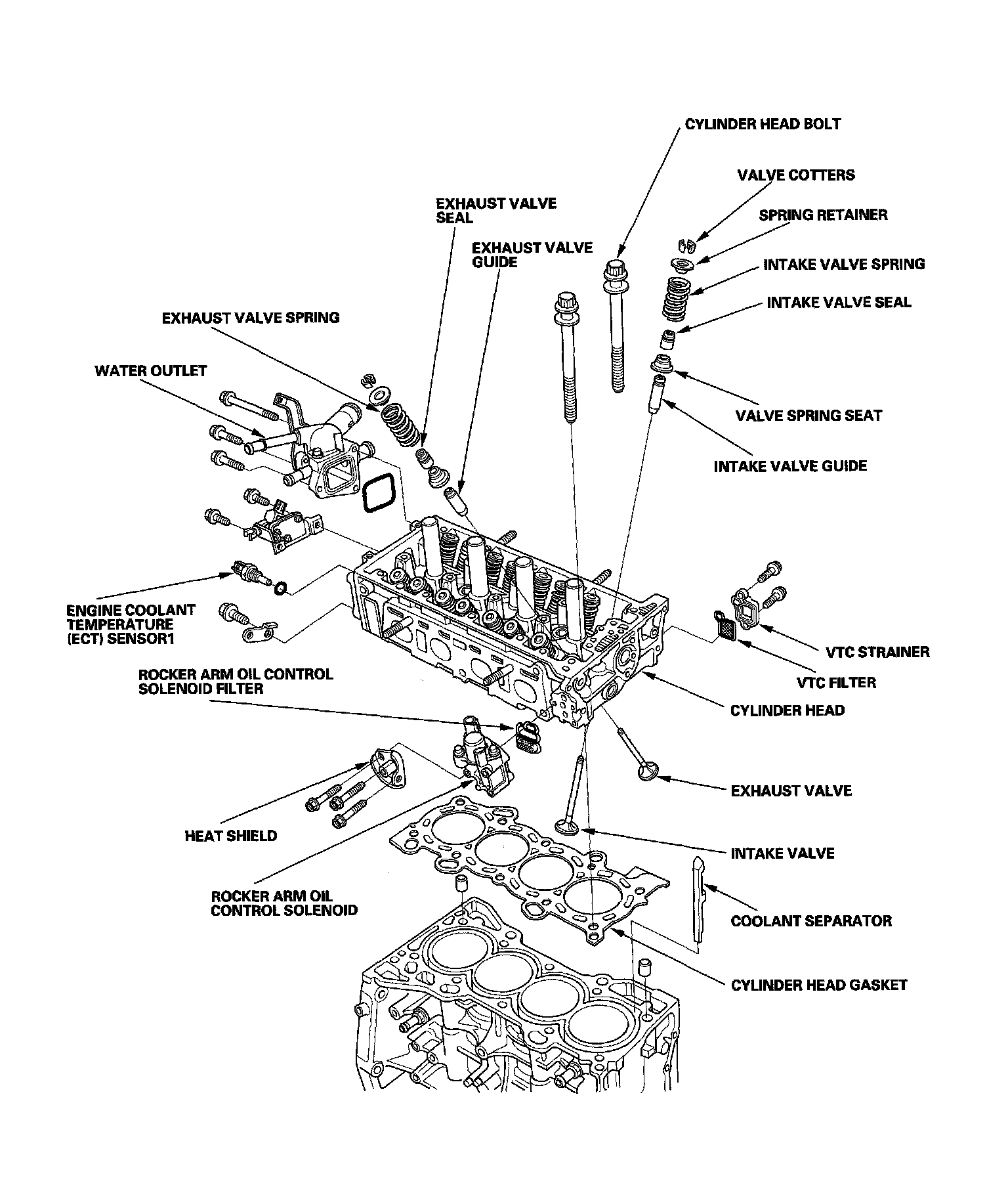

Cylinder Head Location Index (Part 2):

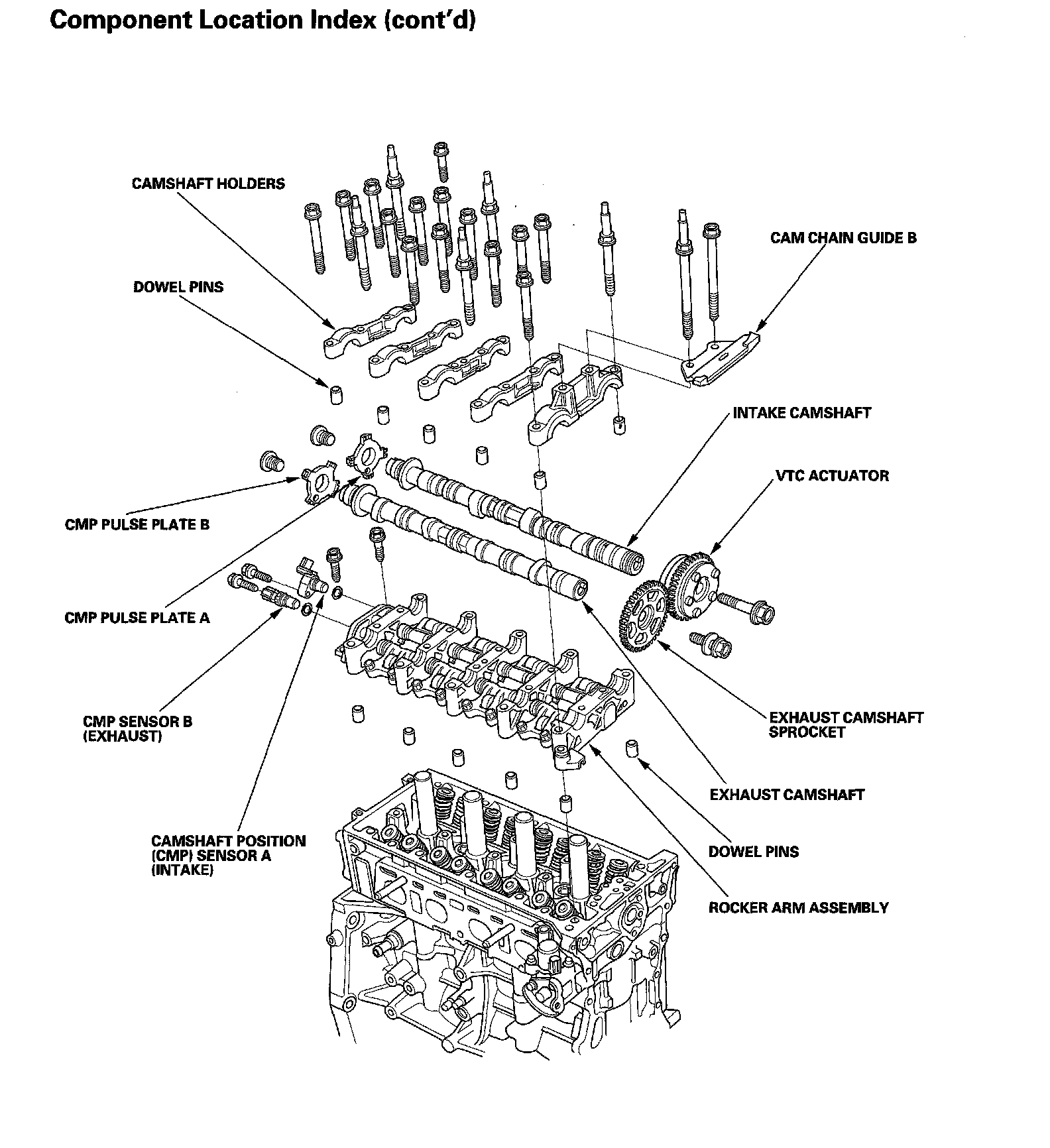

Cylinder Head Location Index (Part 3):
