Home >> Acura >> 2007 >> RDX L4-2.3L Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Module >> Diagrams

Navigation Module: Diagrams

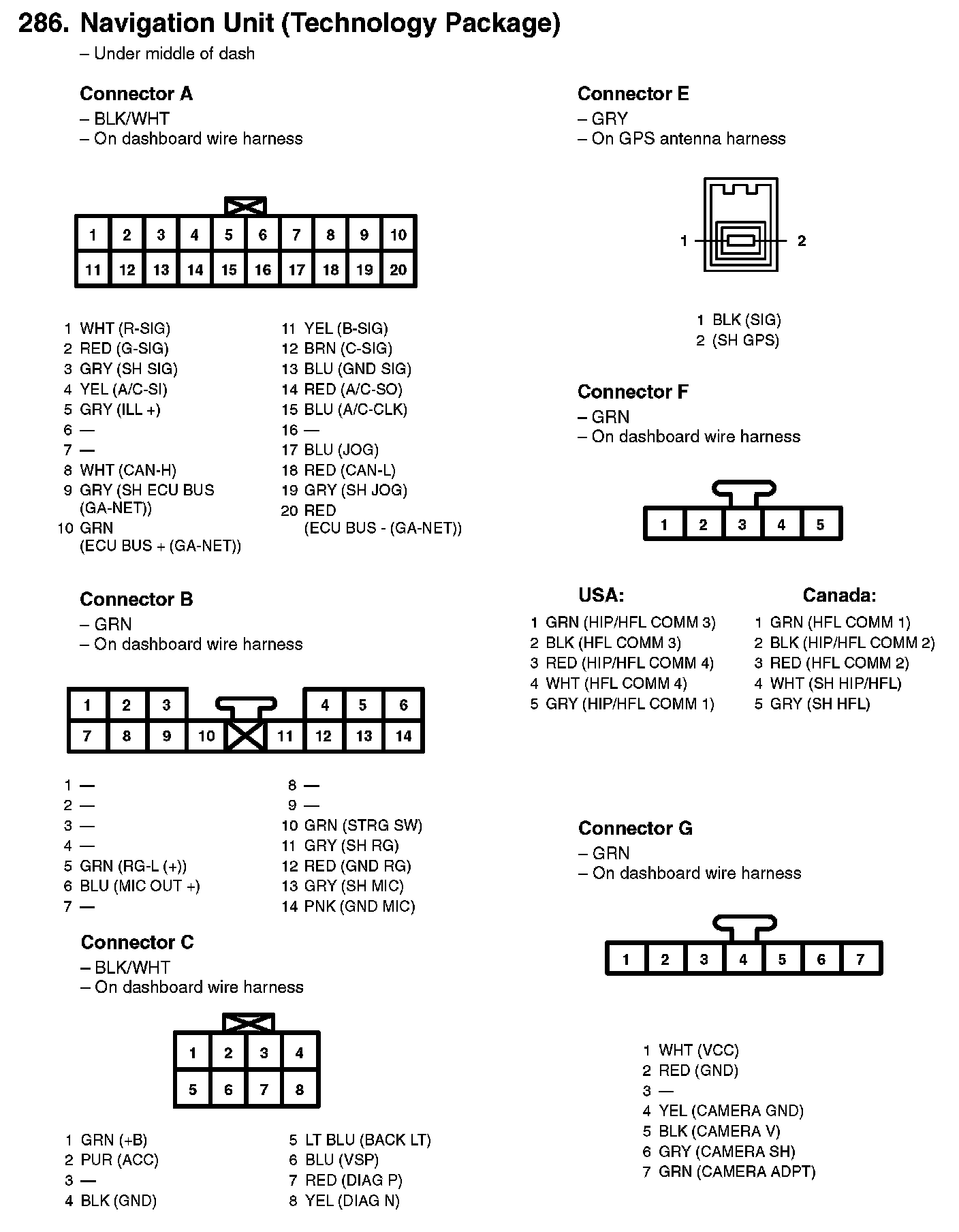

286. Navigation Unit (Technology Package):
