Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations

Power Window Switch: Locations

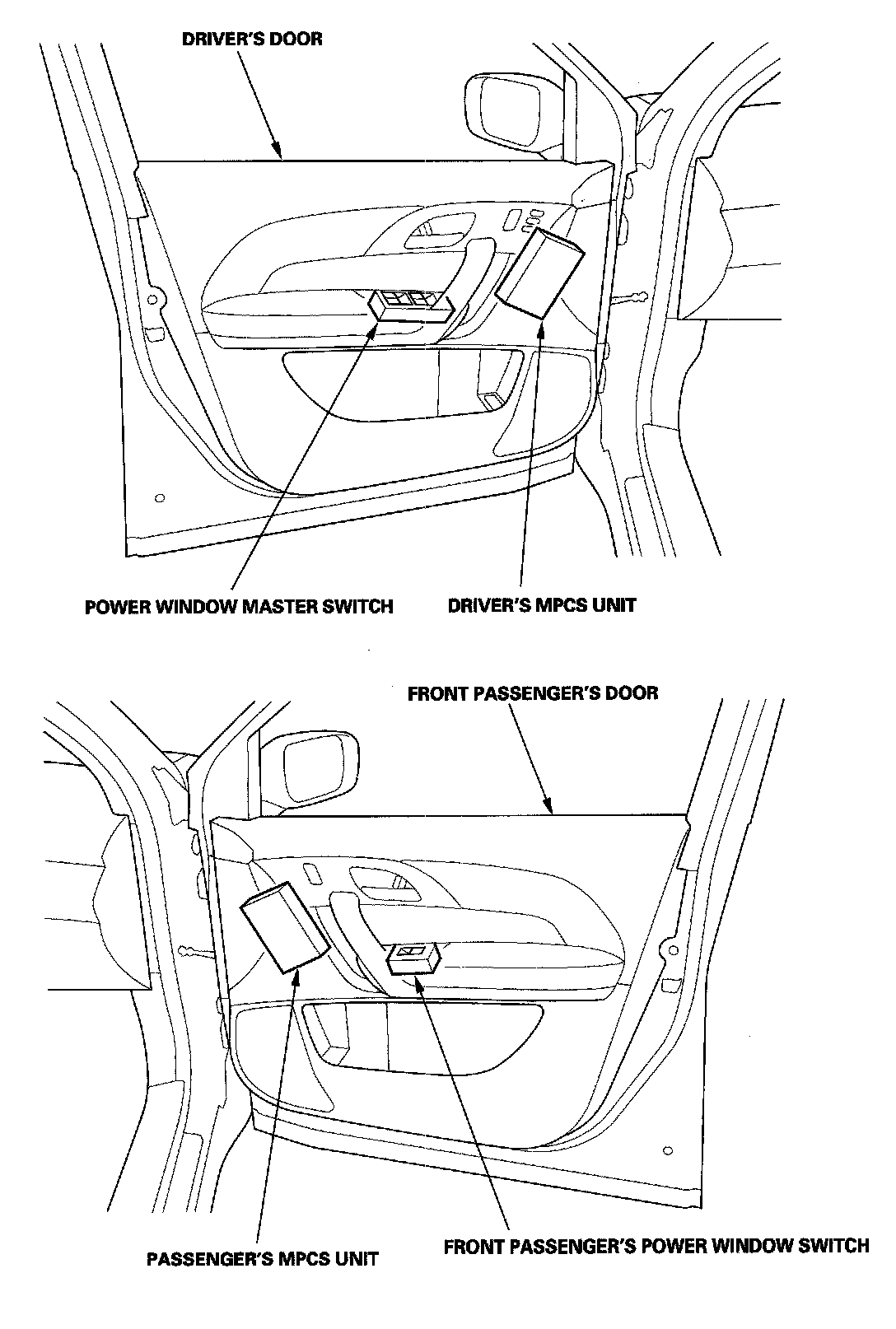

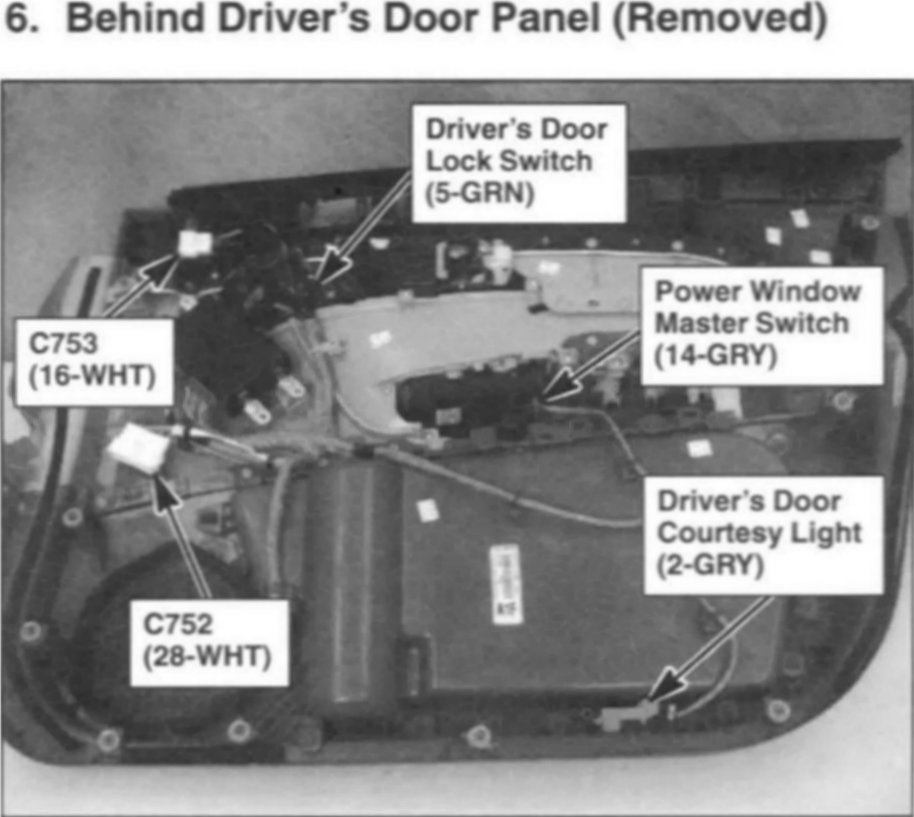

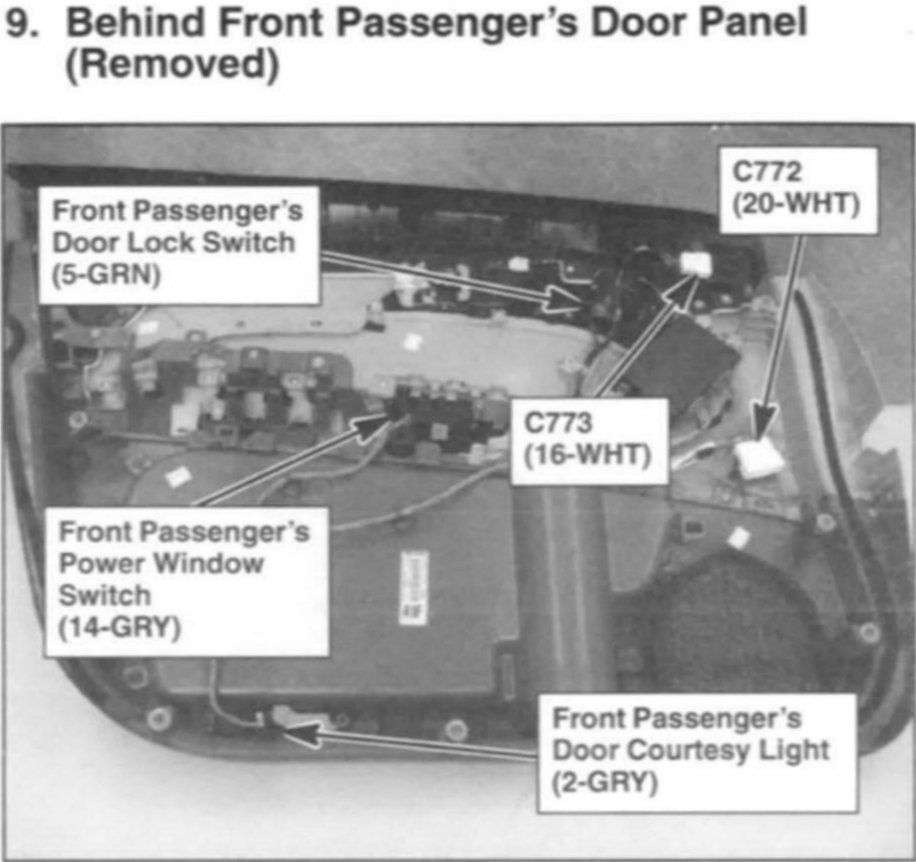

Front Door Component Location Index:

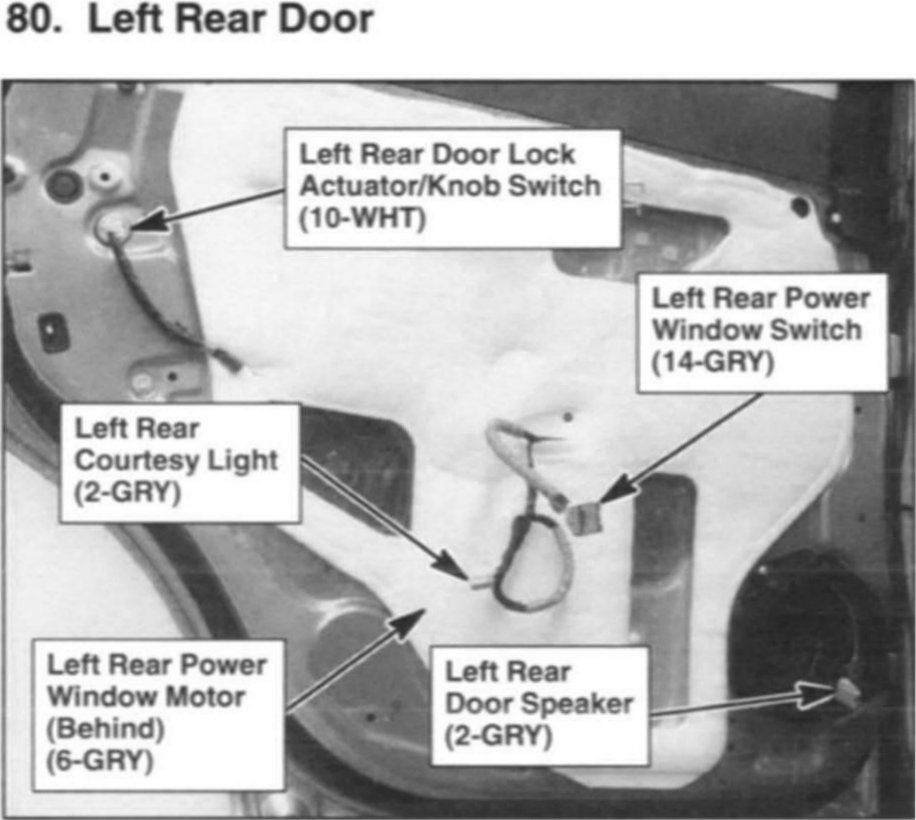

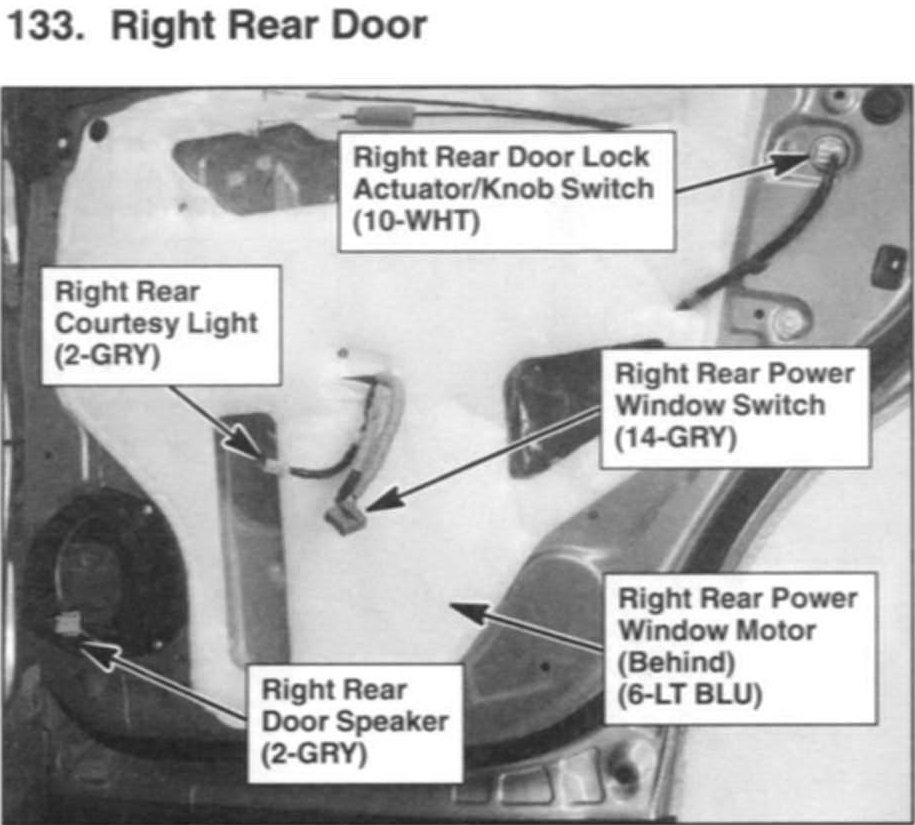

Rear Door Component Location Index:

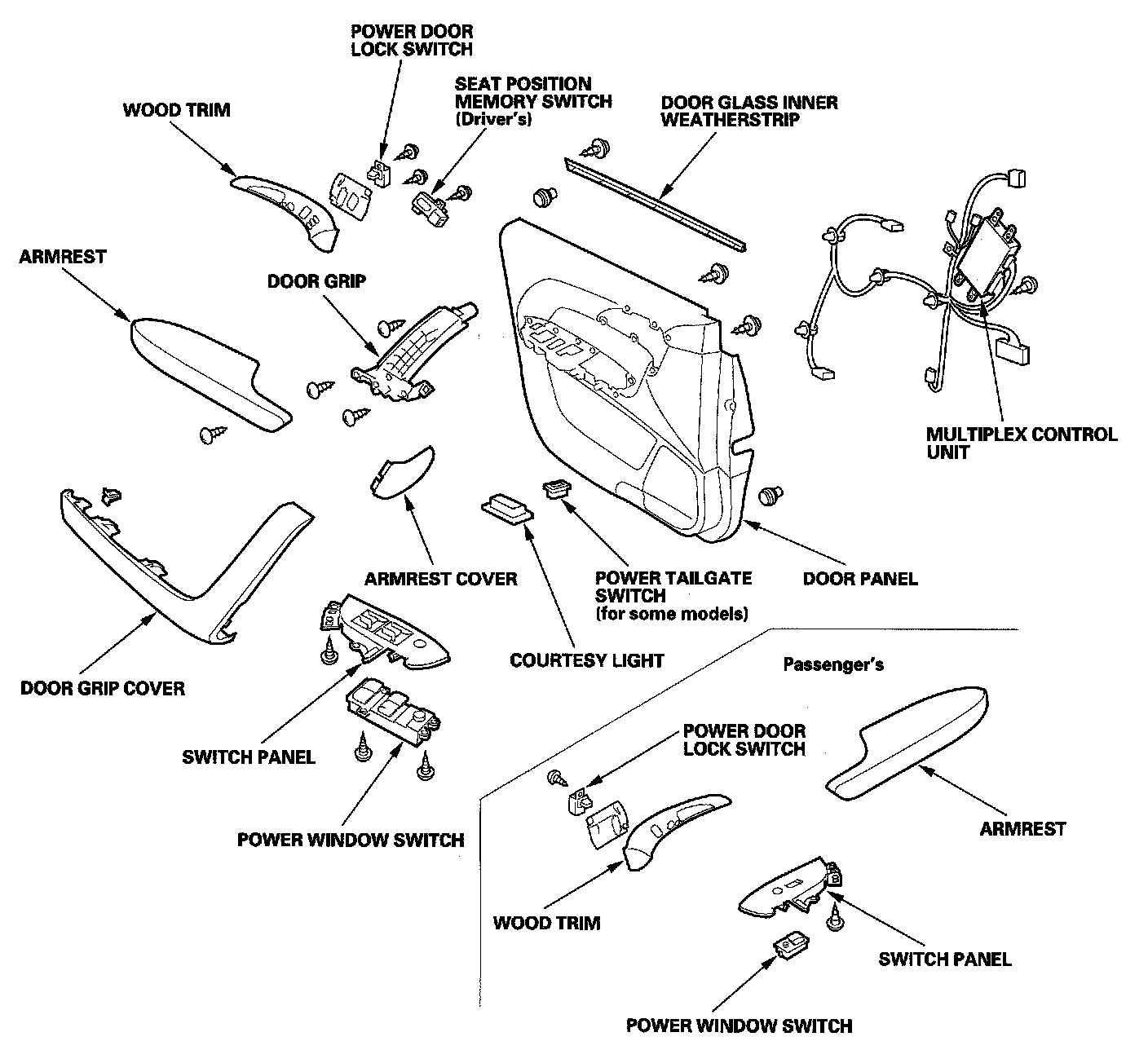

Power Windows Component Location Index:

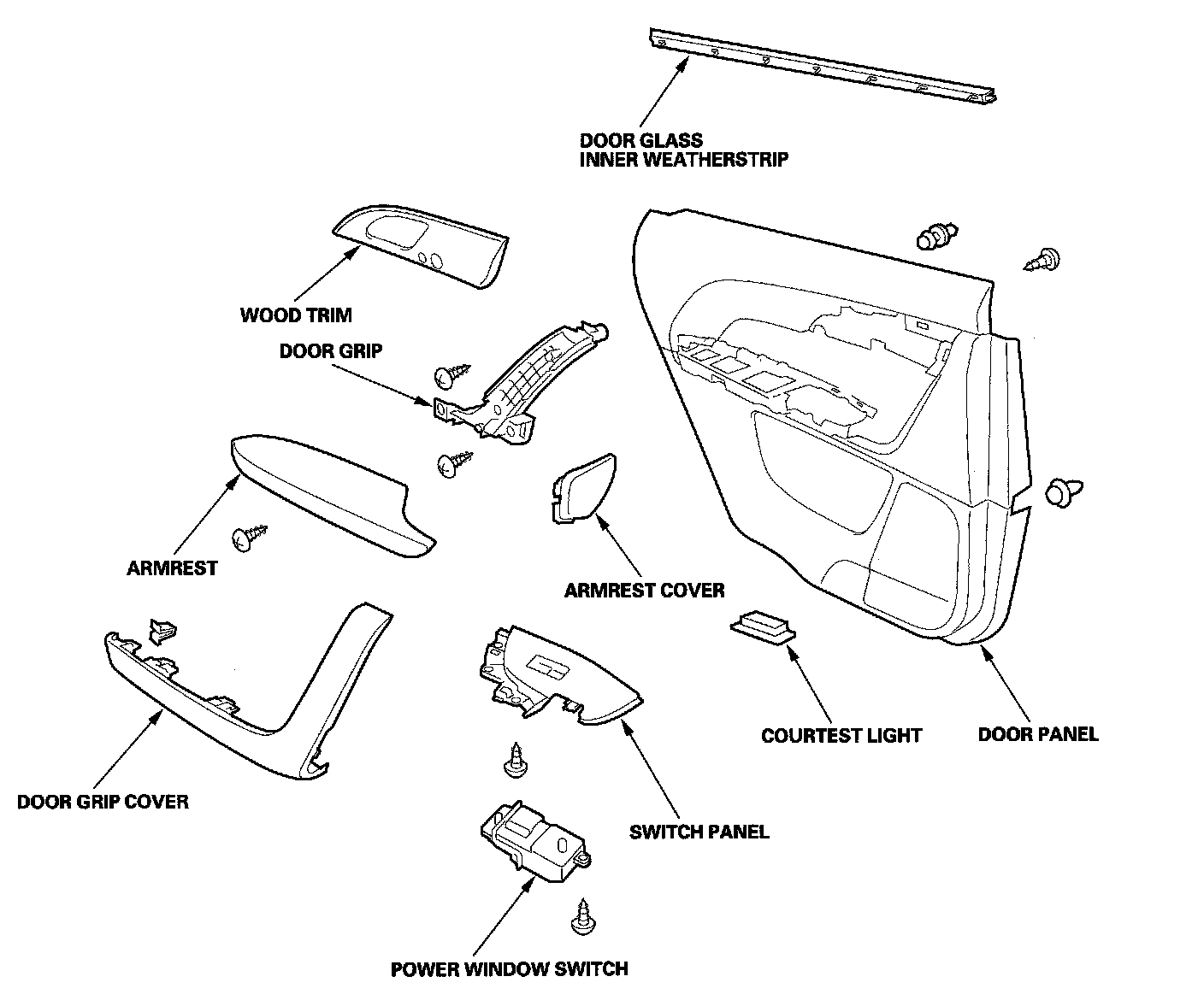

Power Windows Component Location Index:
