Control Unit: Locations

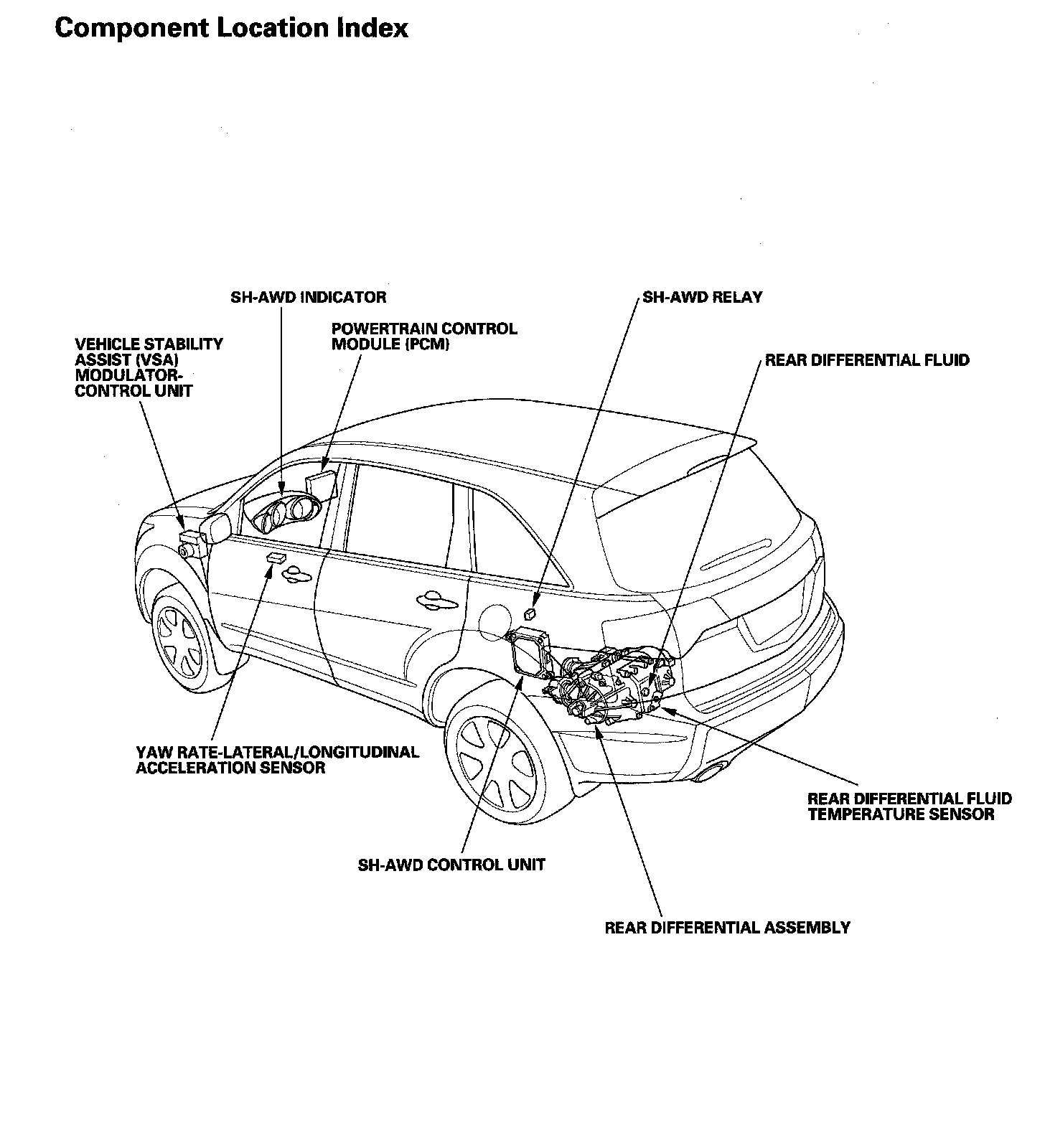

Rear Differential Component Location Index:

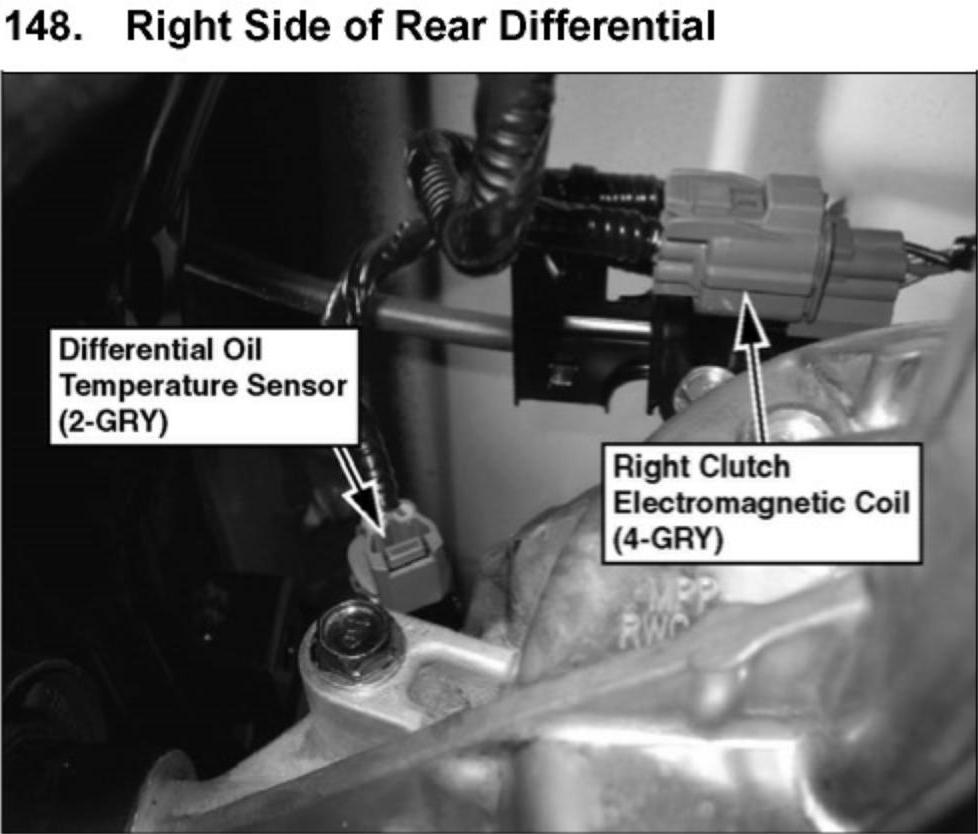

148. Right Side of Rear Differential:
