Under-Dash Fuse/Relay Box

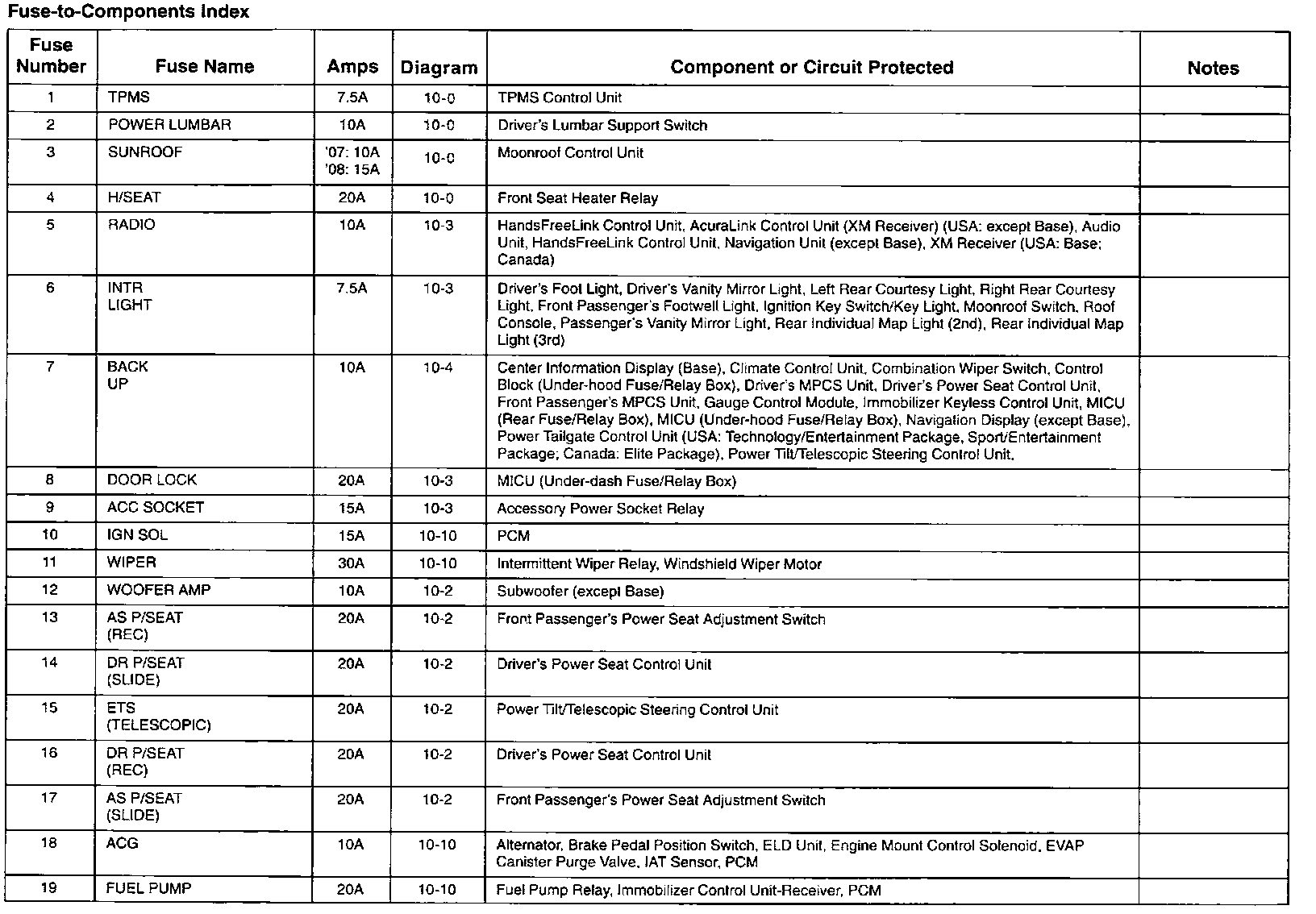

Under-dash Fuse/Relay Box Part 1:

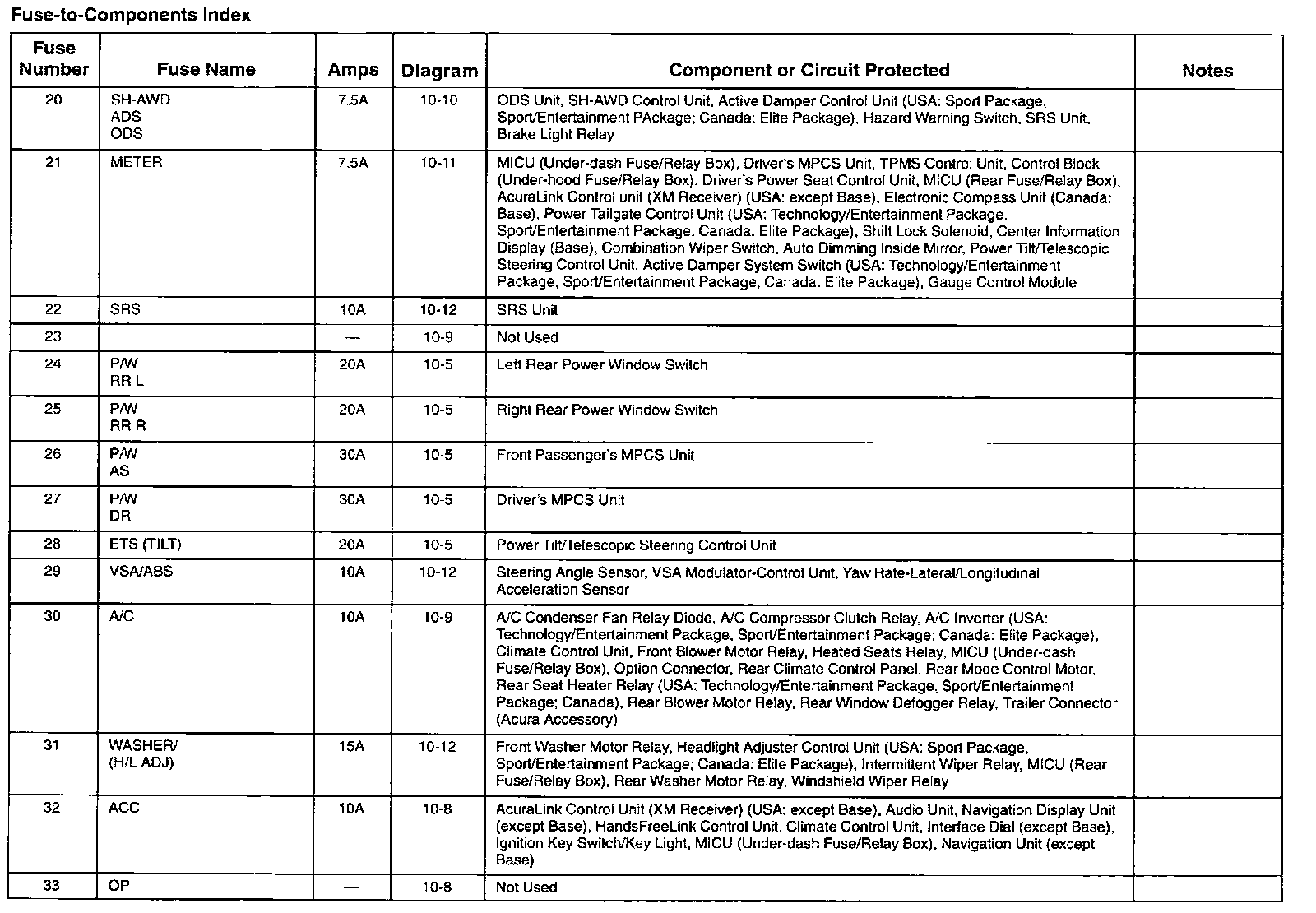

Under-dash Fuse/Relay Box Part 2:



Under-dash Fuse/Relay Box Part 3:



Under-dash Fuse/Relay Box Part 4:
