Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Under-Dash Fuse/Relay Box

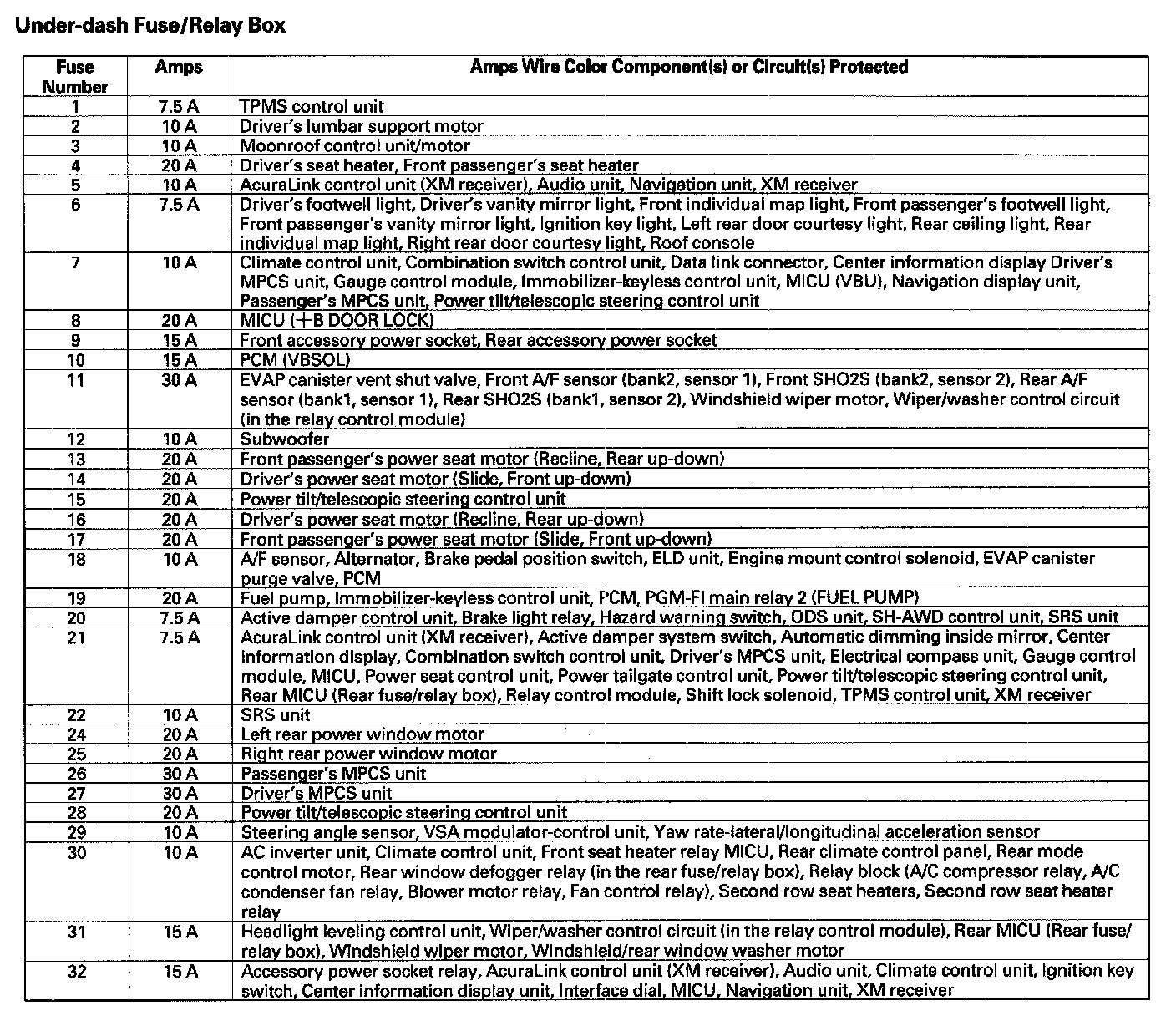

Under-Dash Fuse/Relay Box

Under-dash Fuse/Relay Box:



Under-Dash Fuse/Relay Box:
