Torque and Sequences

Flywheel mounting bolt torque, tighten in a crisscross pattern in several steps

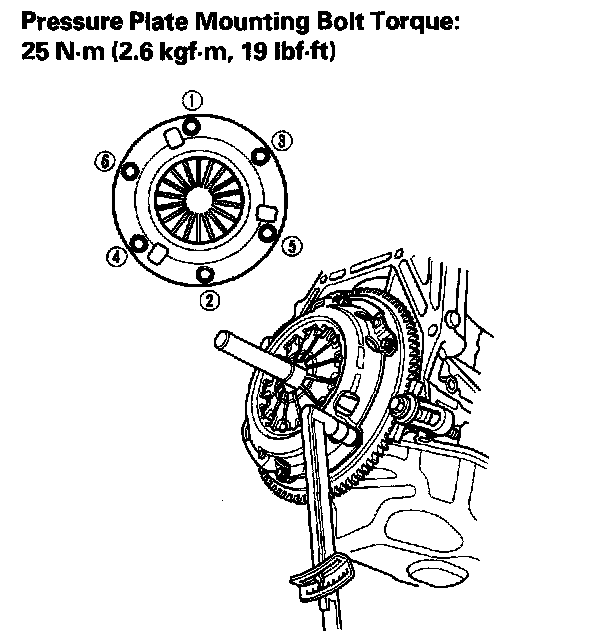

Pressure Plate mounting bolt torque, tighten in a crisscross pattern in several steps to prevent warping the diaphragm spring

For information regarding Clutch Overhaul Specifications, refer to Service and Repair, Procedures. Service and Repair
