Pinout Values and Diagnostic Parameters

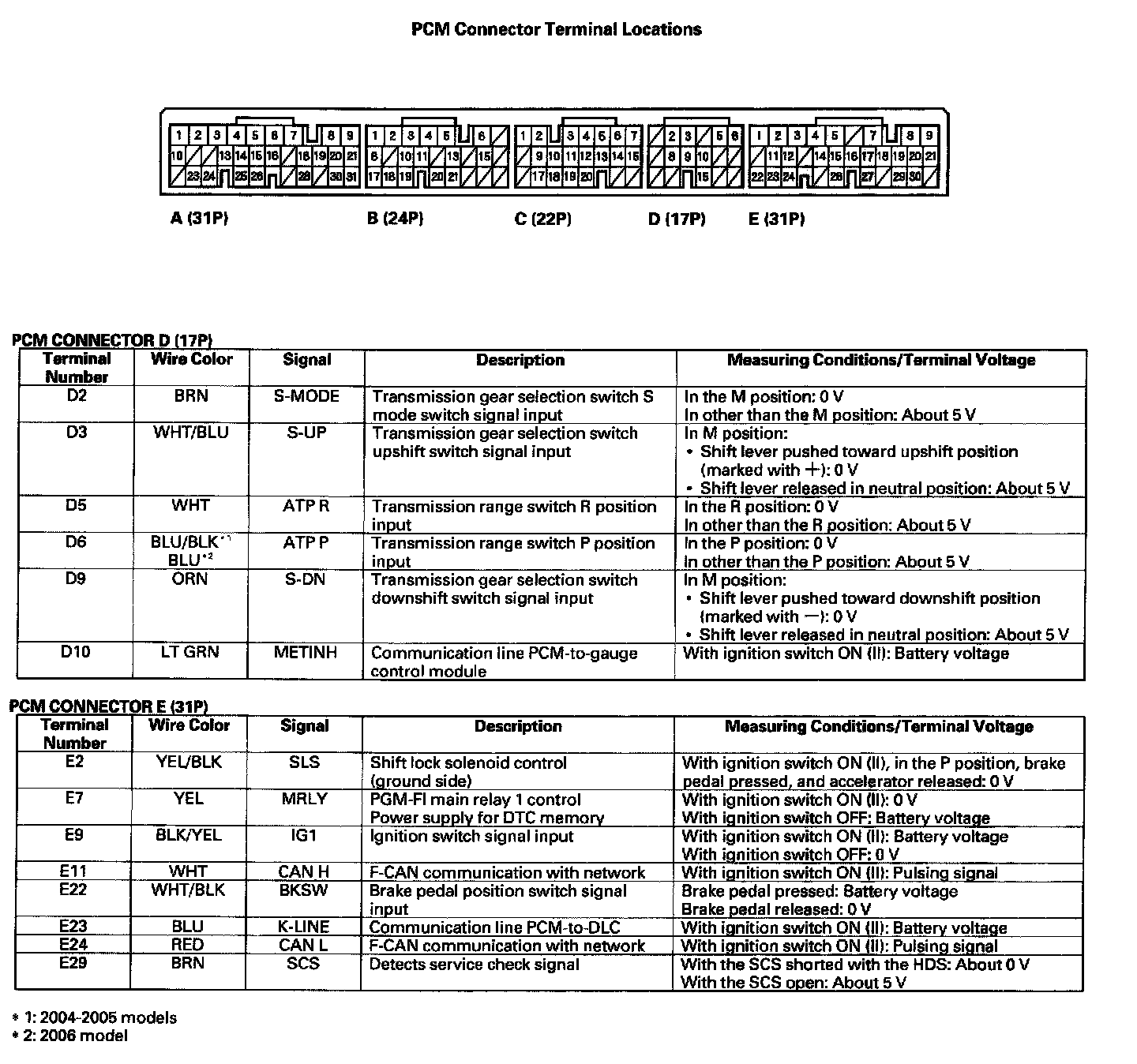

PCM Inputs and Outputs:

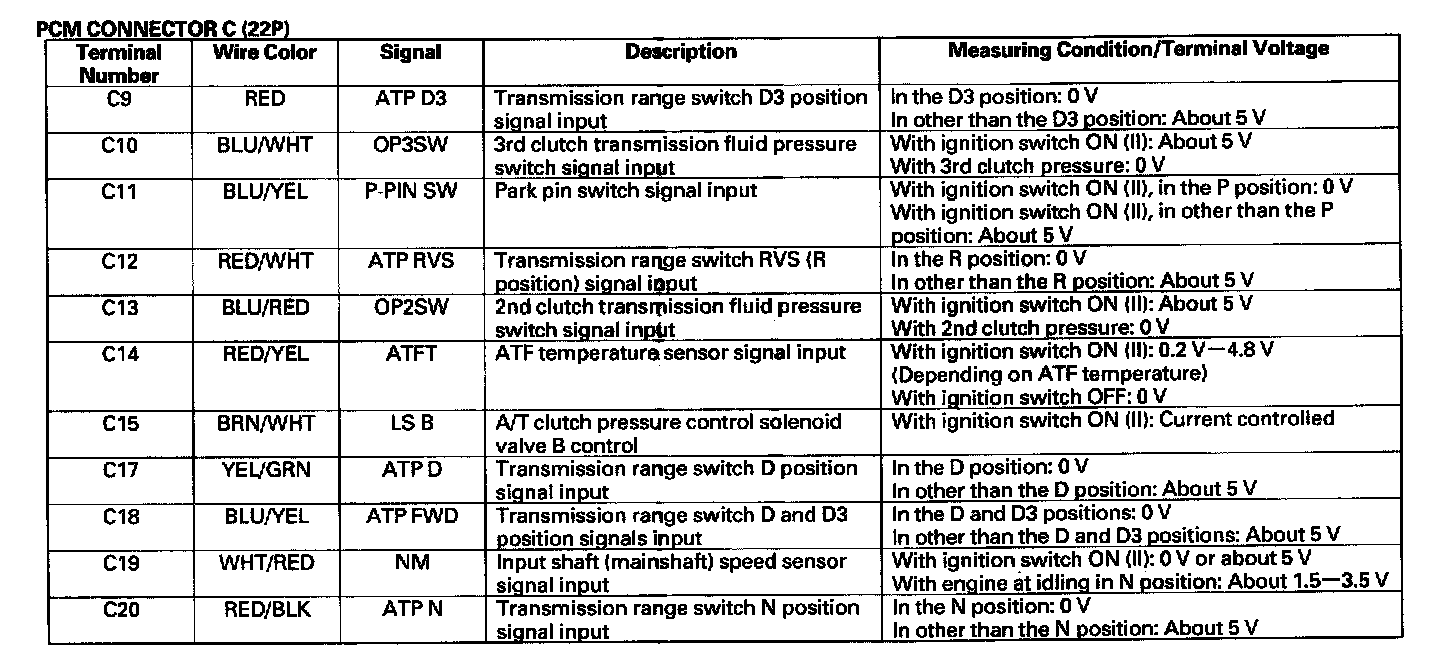

PCM Inputs and Outputs:

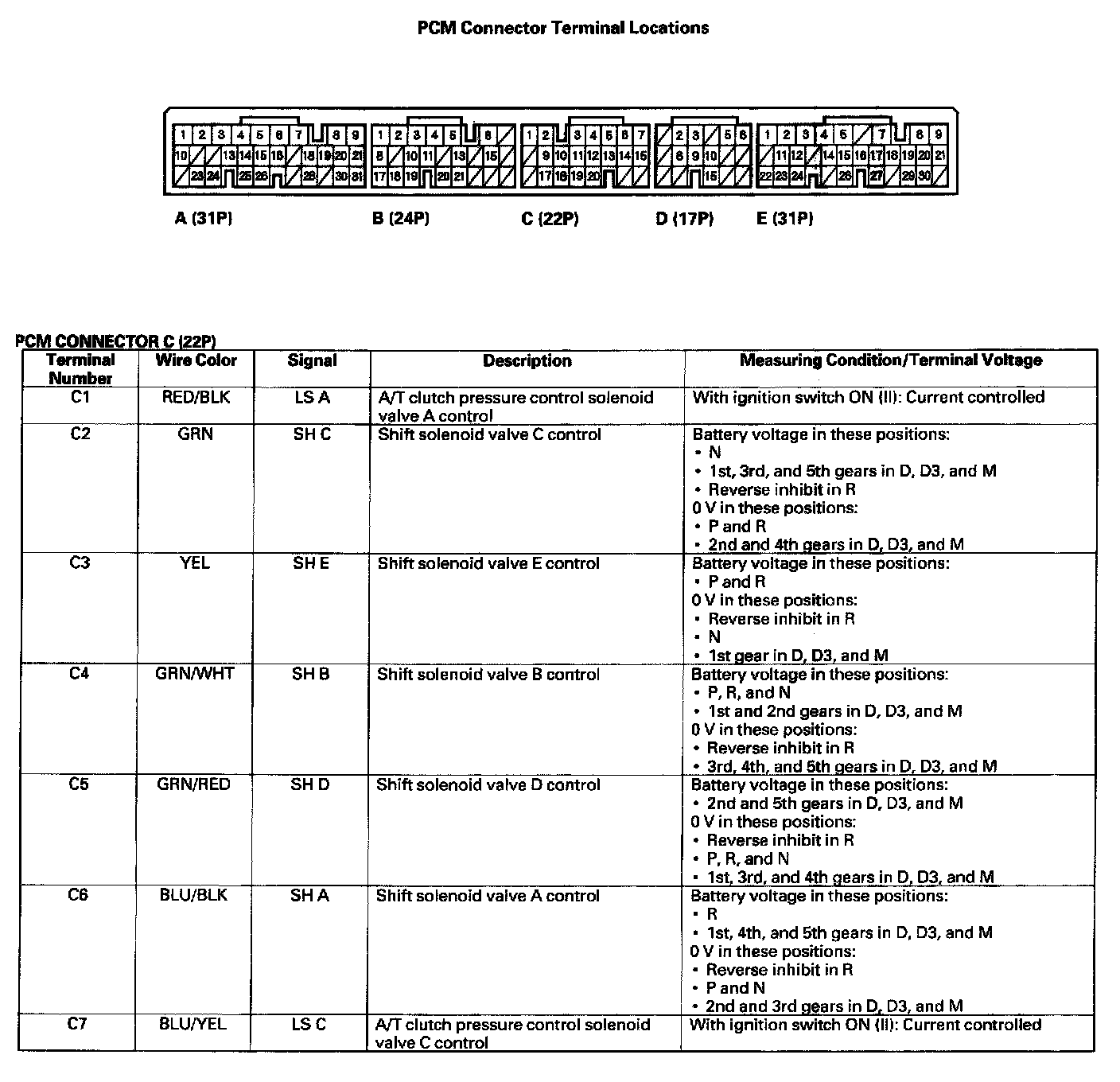

PCM Inputs and Outputs:

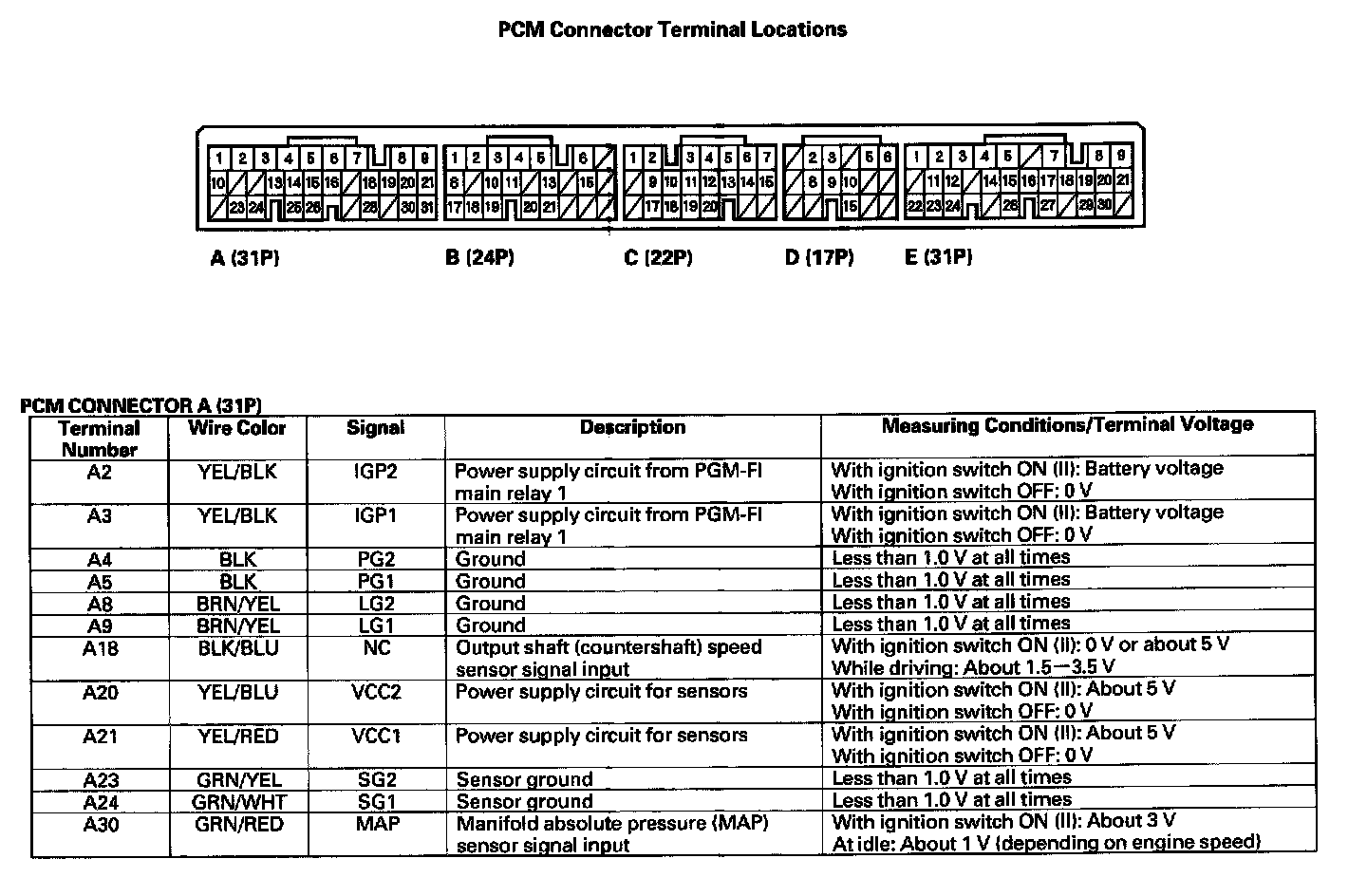

PCM Inputs and Outputs:
