Home >> Acura >> 2006 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Valve Body

Valve Body

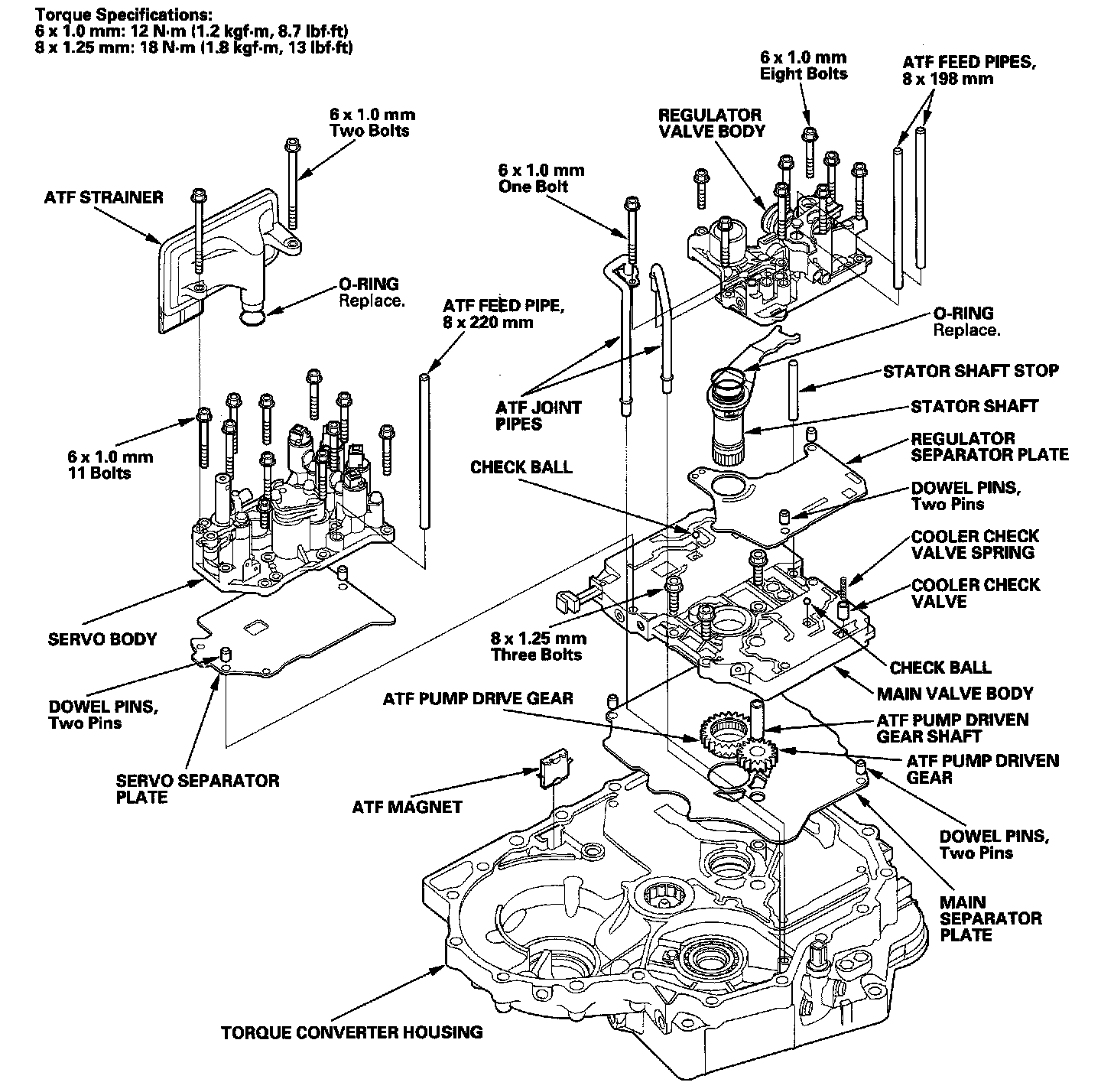

Valve Body and ATF Strainer:
