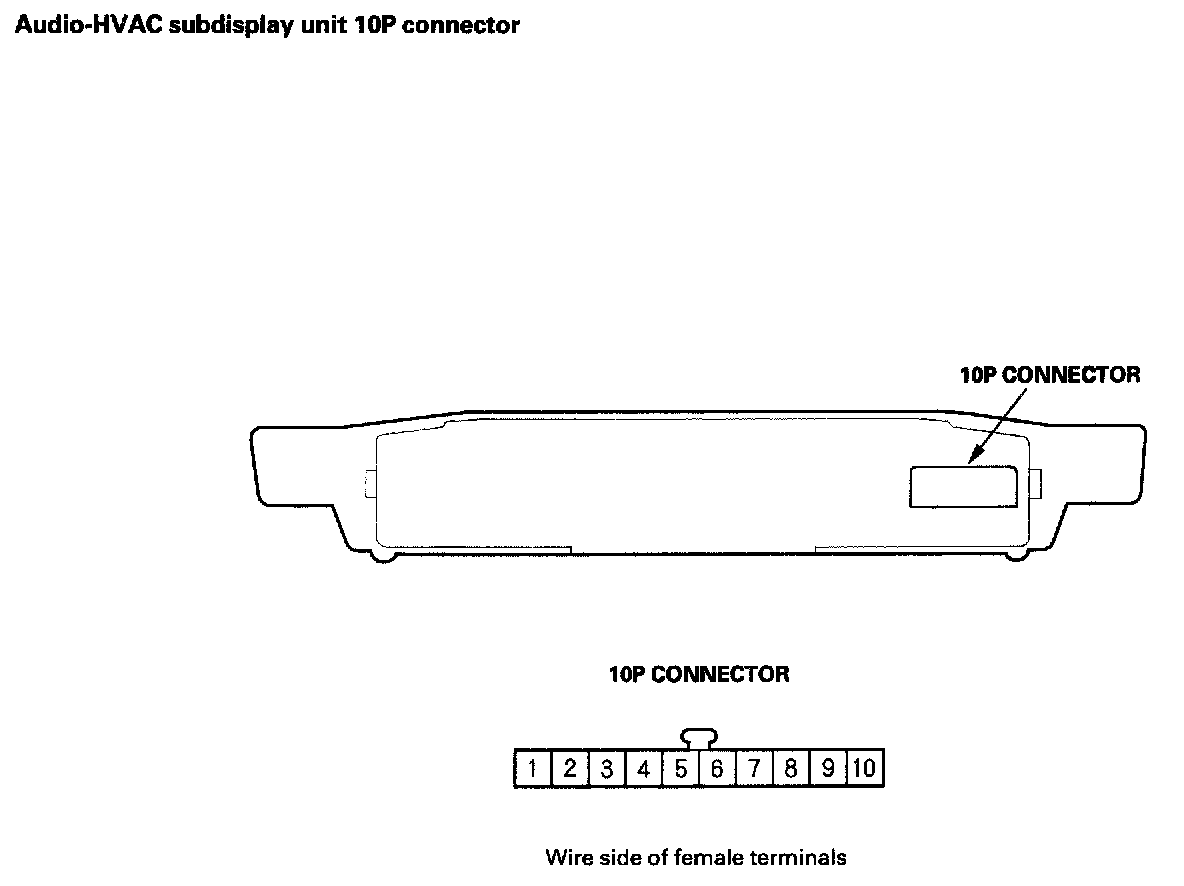

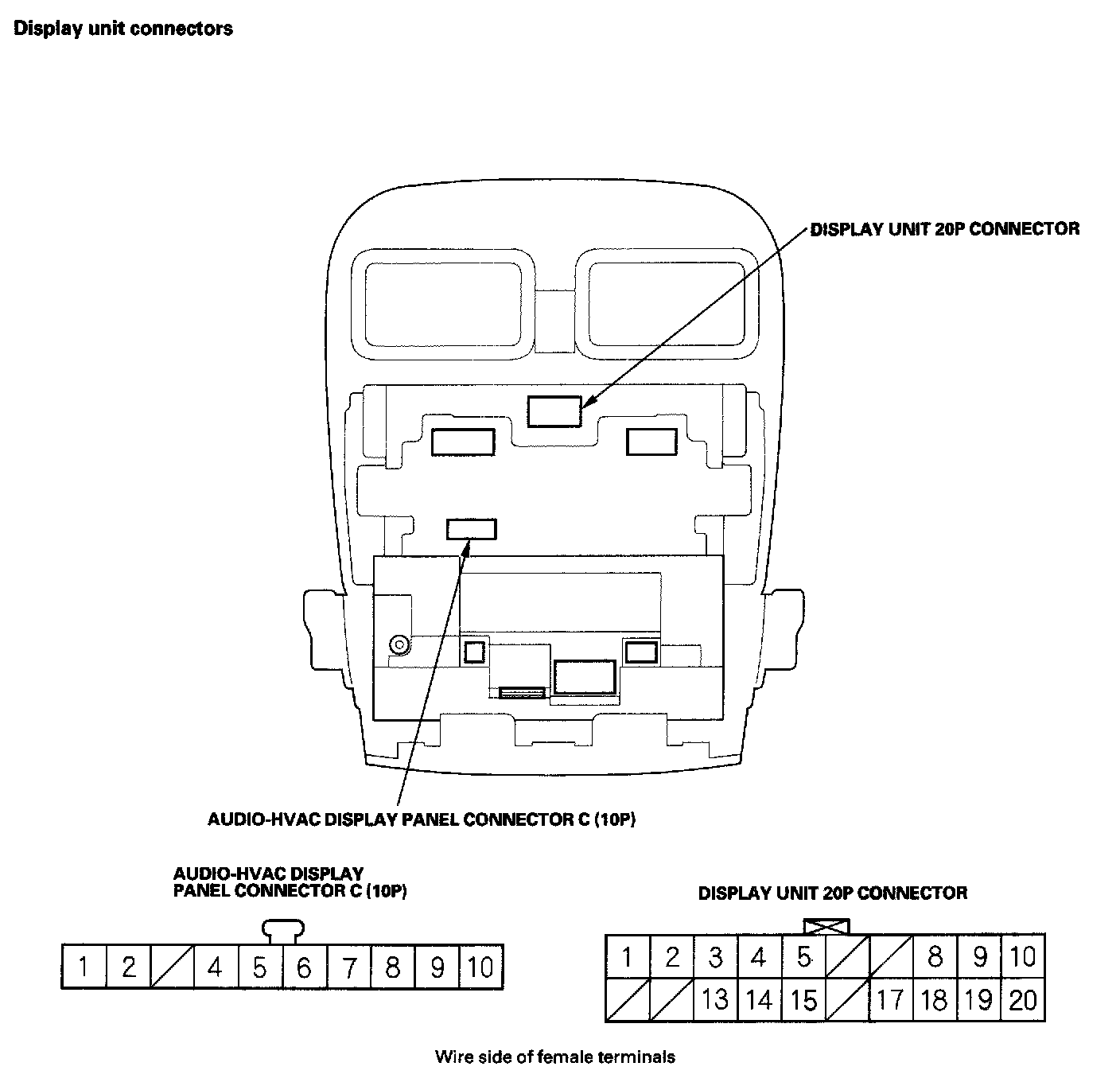

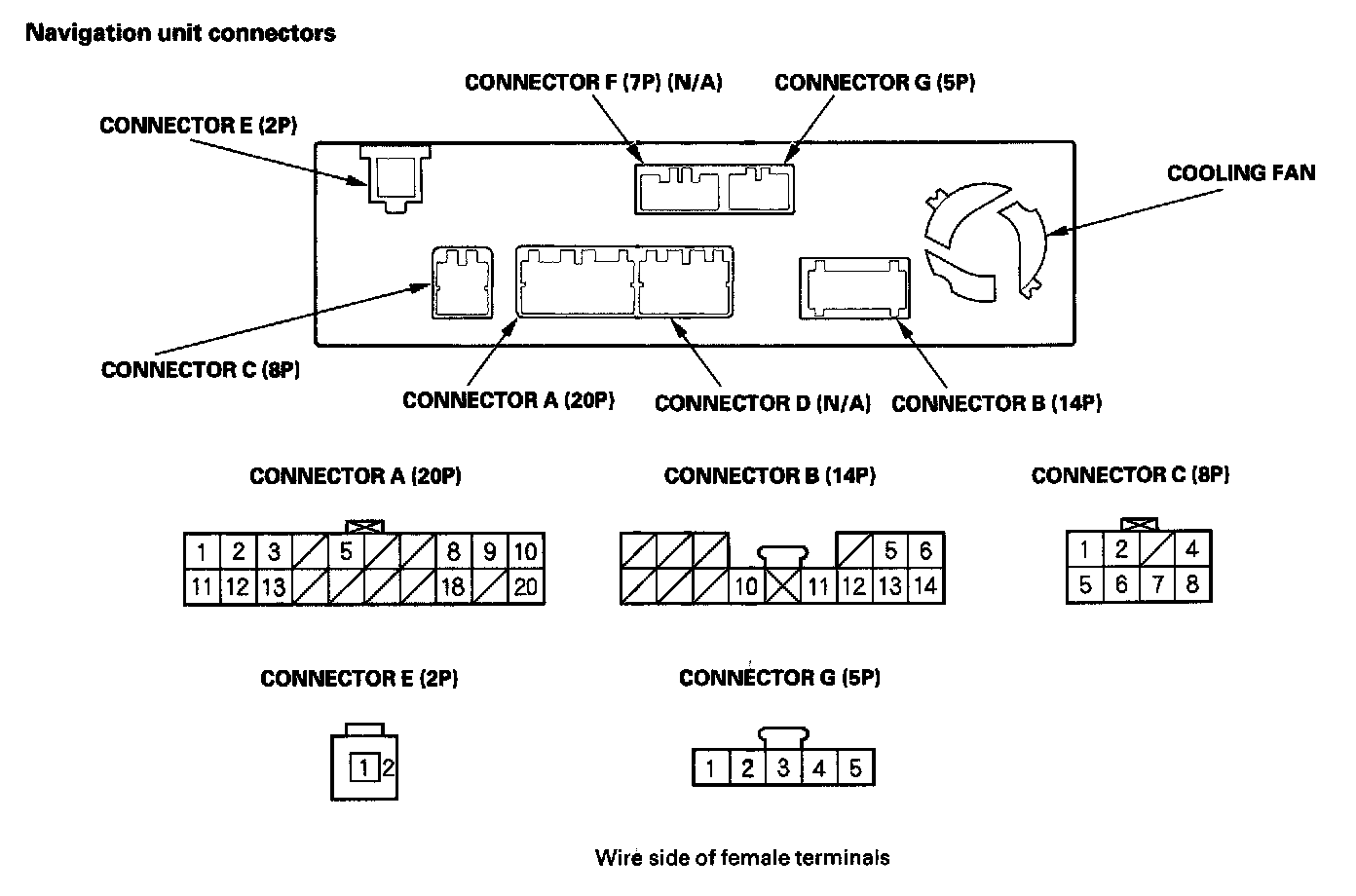

Wire Side of Female Terminals

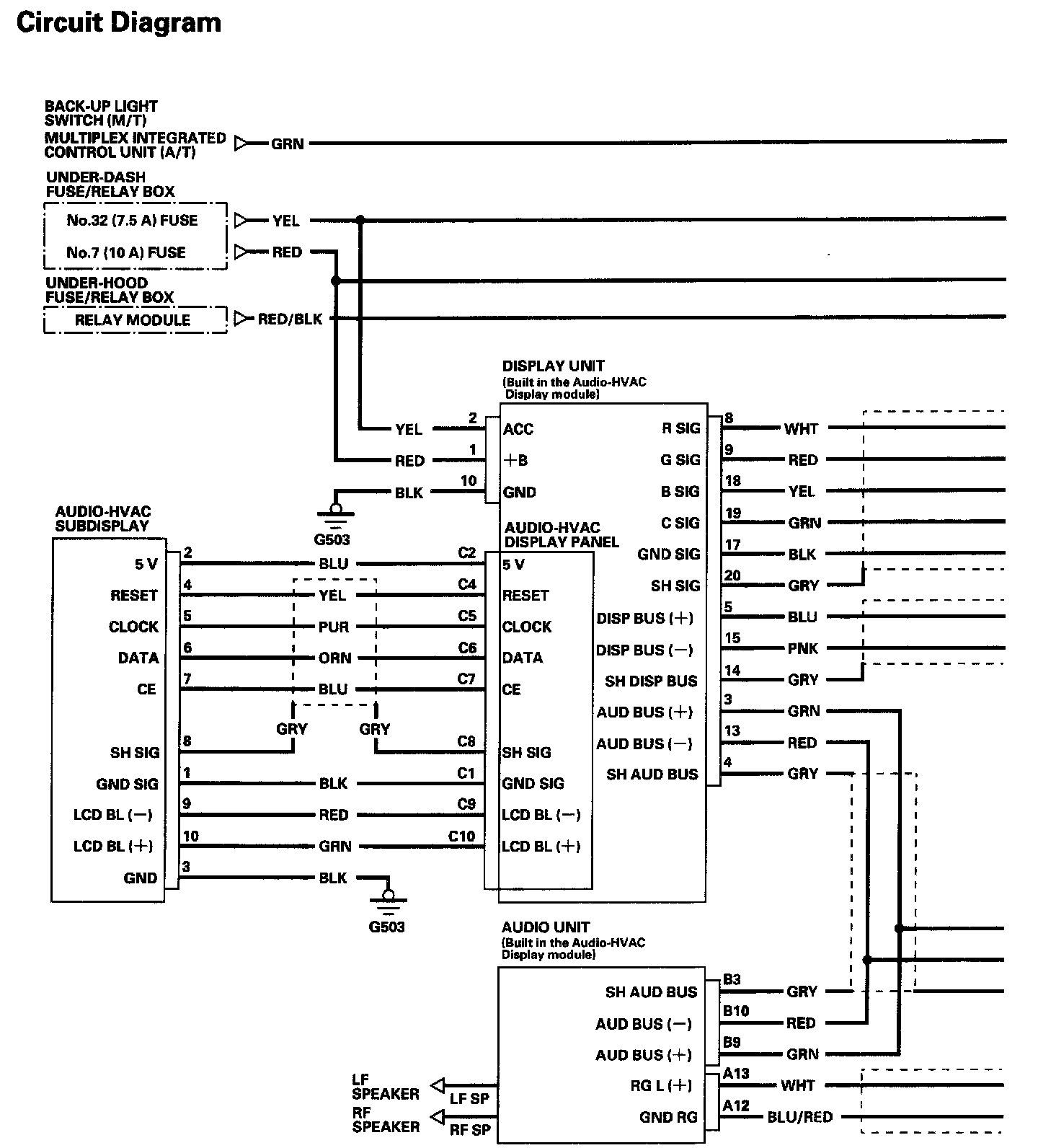

Navigation System - Circuit Diagram Part 1:

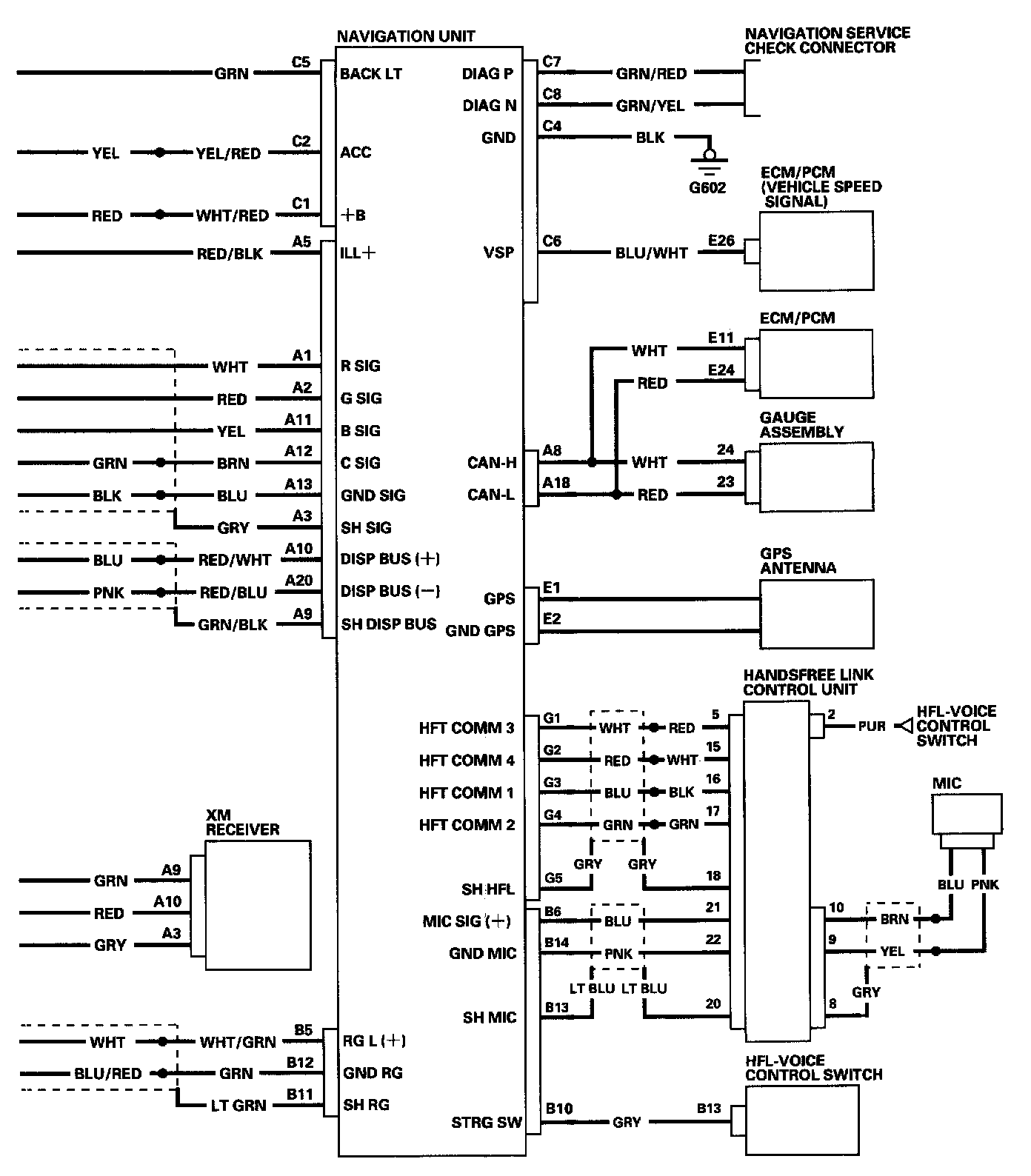

Navigation System - Circuit Diagram Part 2:



Navigation System - Circuit Diagram Part 3:



Navigation System - Circuit Diagram Part 4:



Navigation System - Circuit Diagram Part 5:
