Overhaul Specifications

OVERHAUL

Valve Body And ATF Strainer:





Valve Body

Mainshaft:





Mainshaft

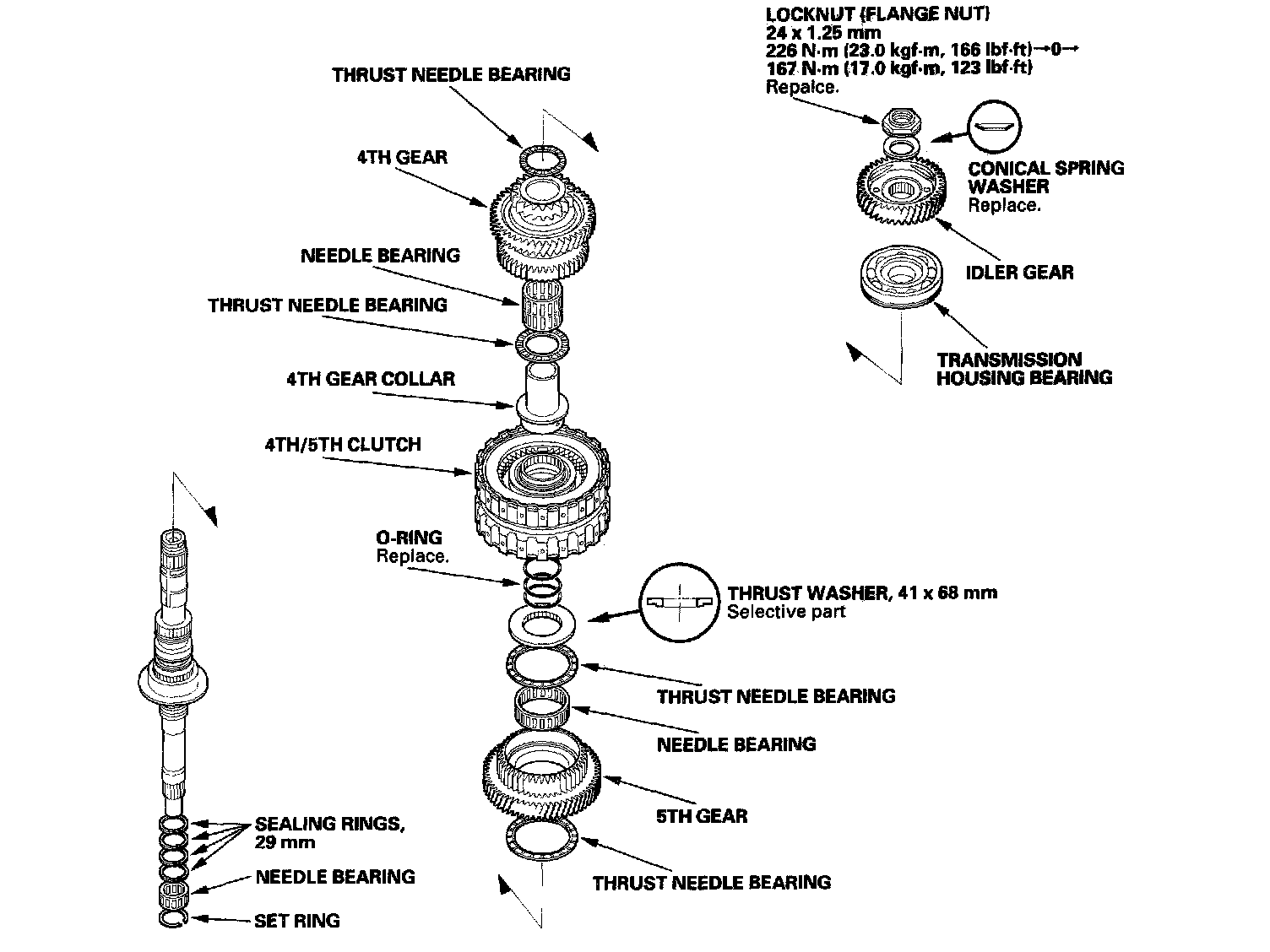

Countershaft:





Countershaft

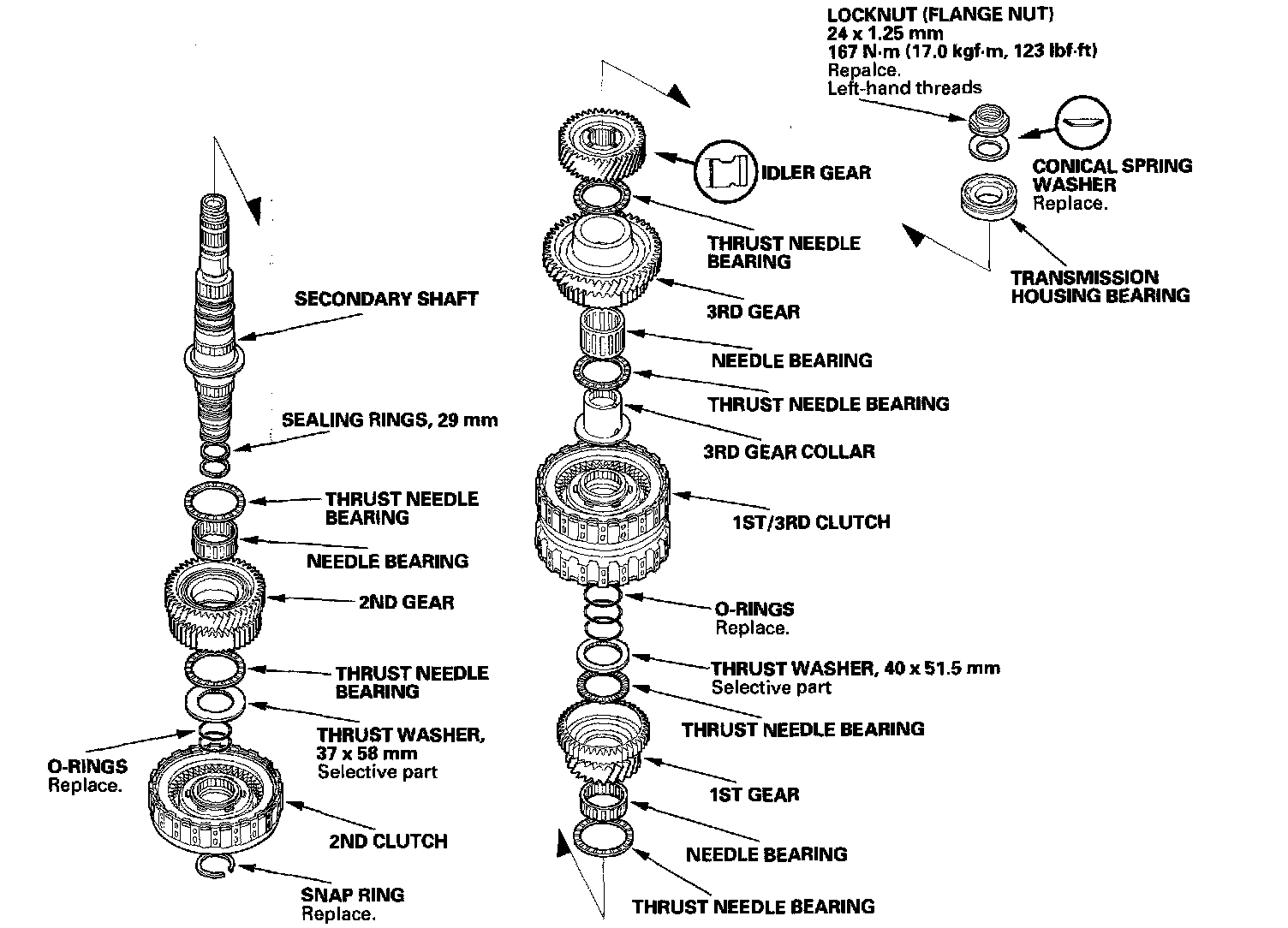

Secondary Shaft:





Secondary Shaft
