Under-dash Fuse/Relay Box
Under-dash Fuse/Relay Box

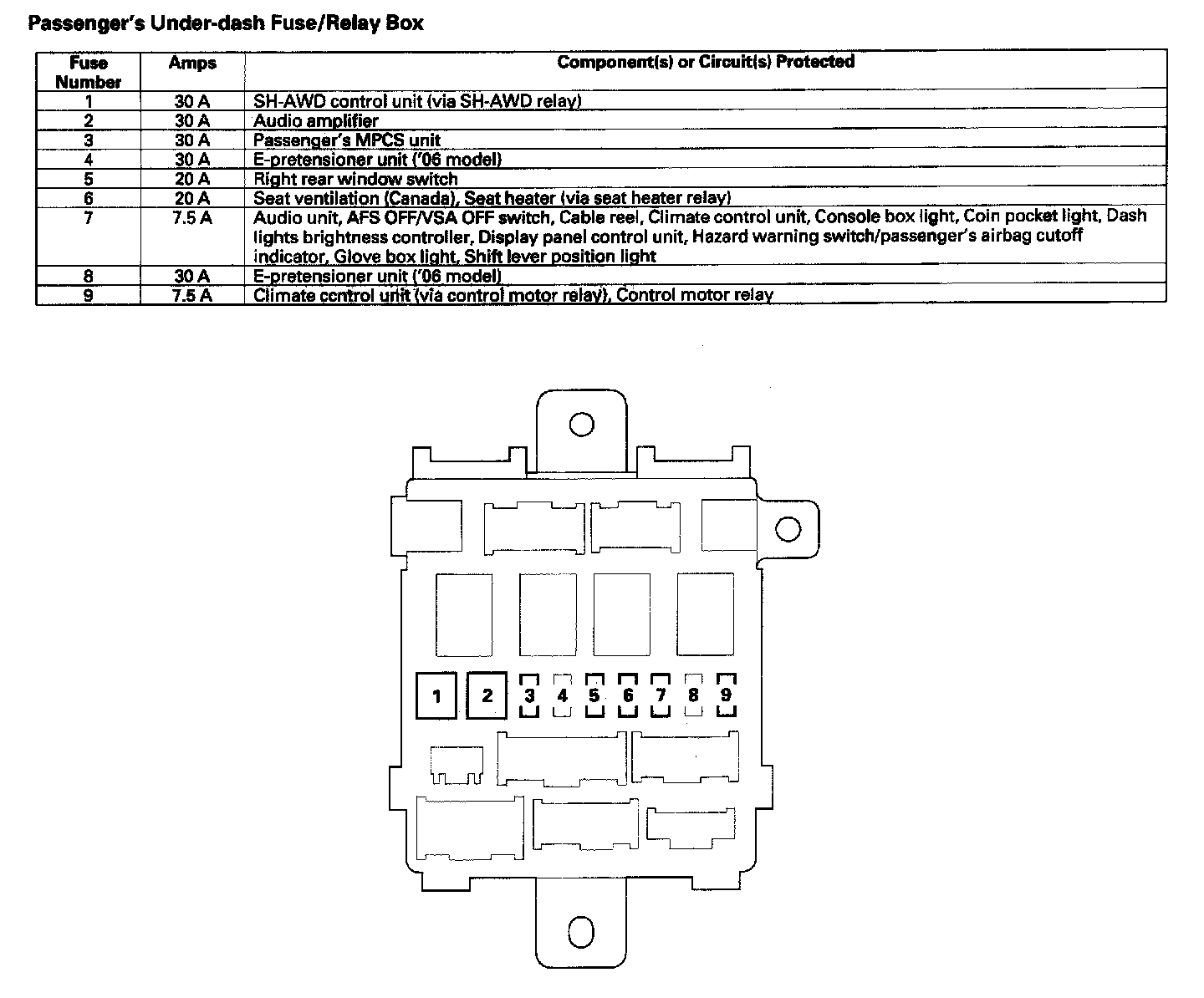

passenger's Under-dash Fuse/Relay Box:

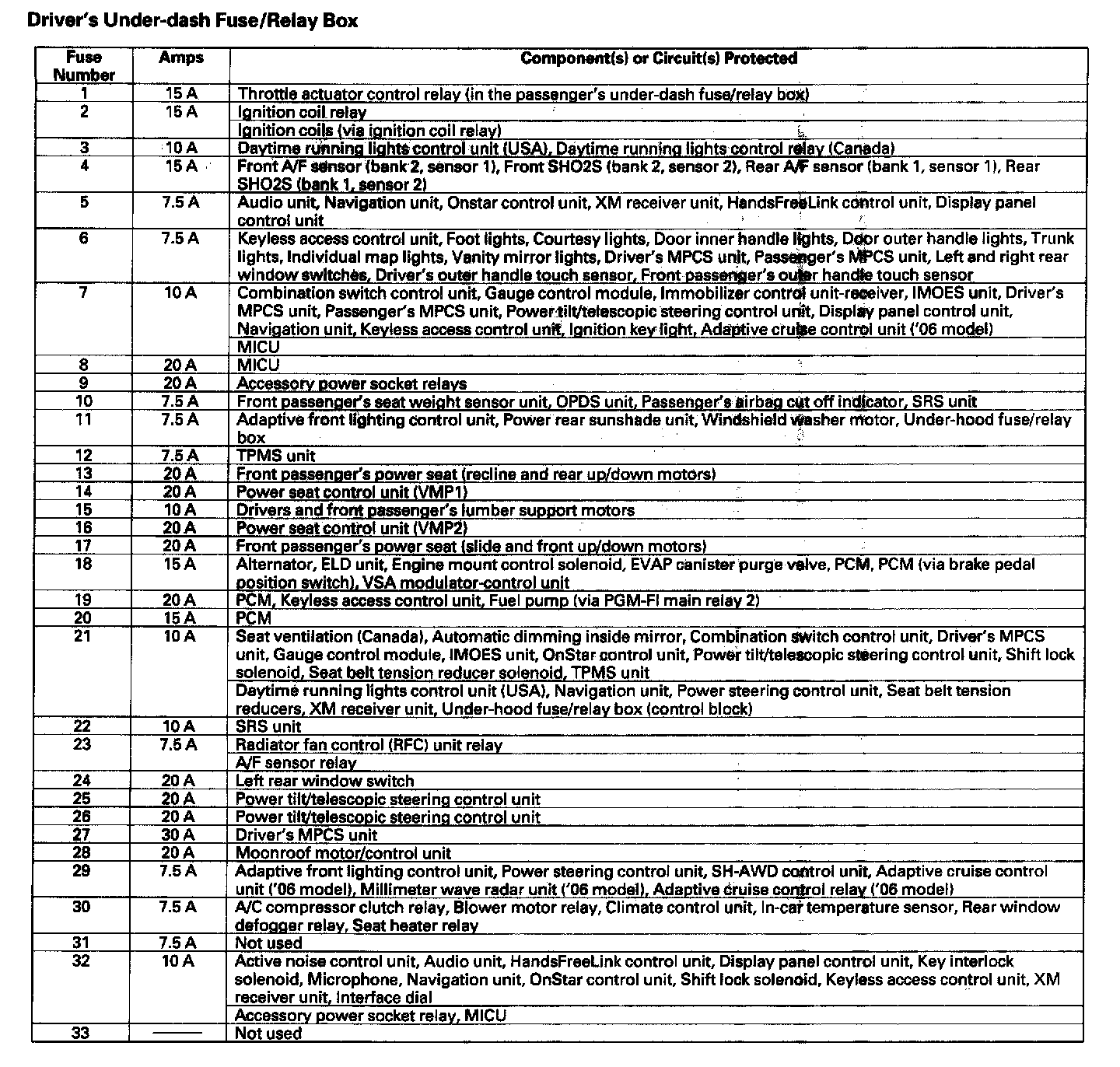

Driver's Under-dash Fuse/Relay Box:
Driver's Under-dash Fuse/Relay Box:
