Air Bag Control Module: Locations

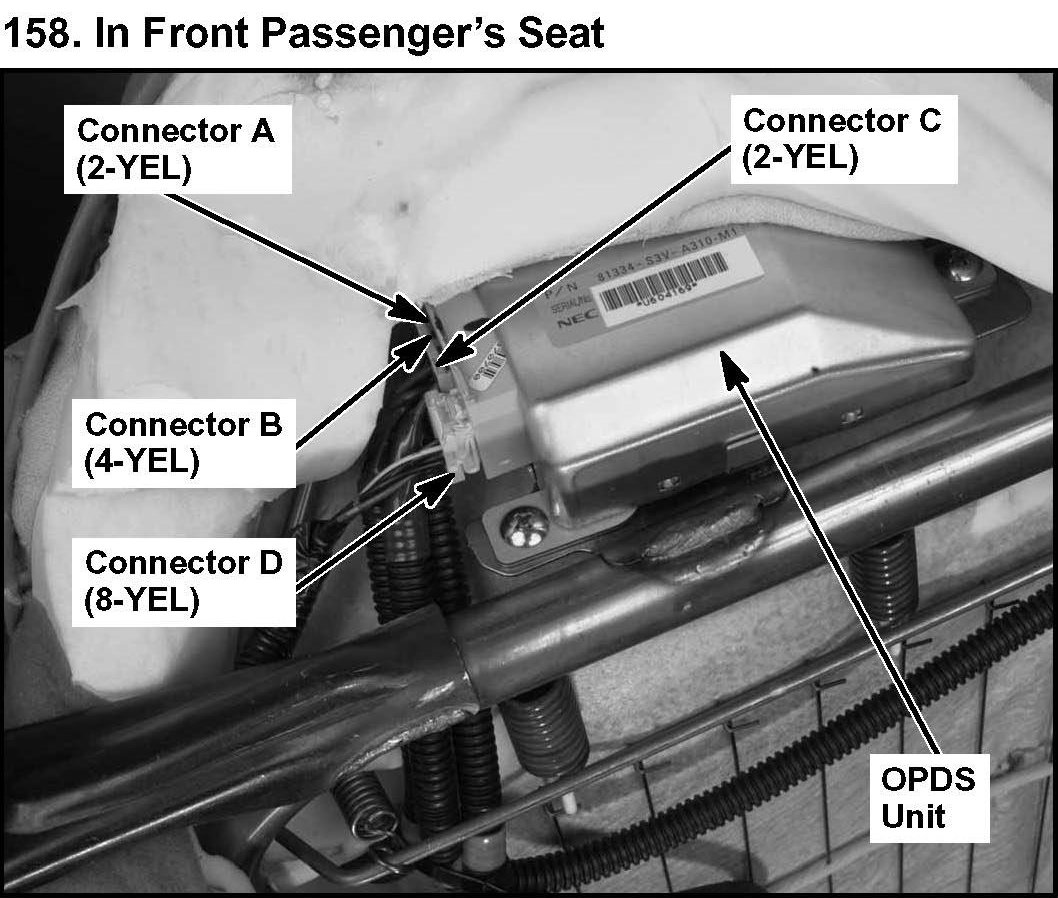

158. In Front Passenger's Seat:

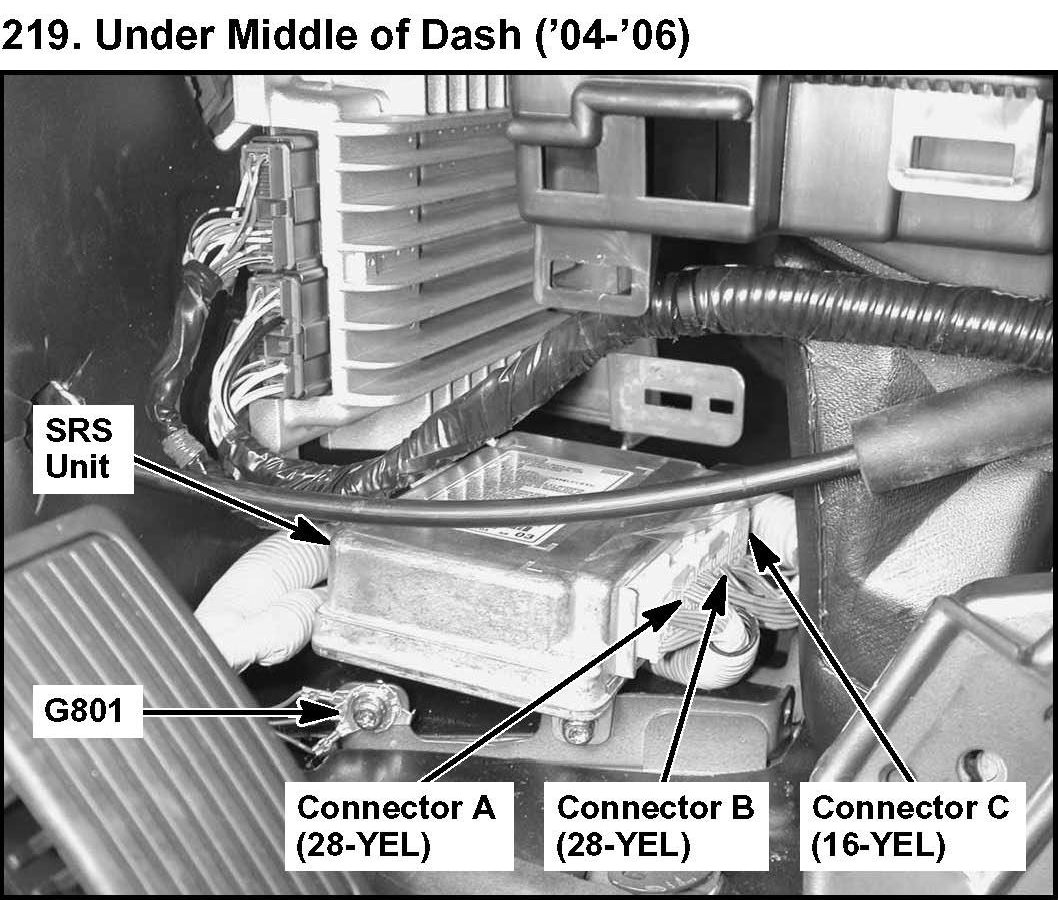

219. Under Middle of Dash:



Relay And Control Unit Locations - Dashboard Part 2:



Relay And Control Unit Locations - Seats:

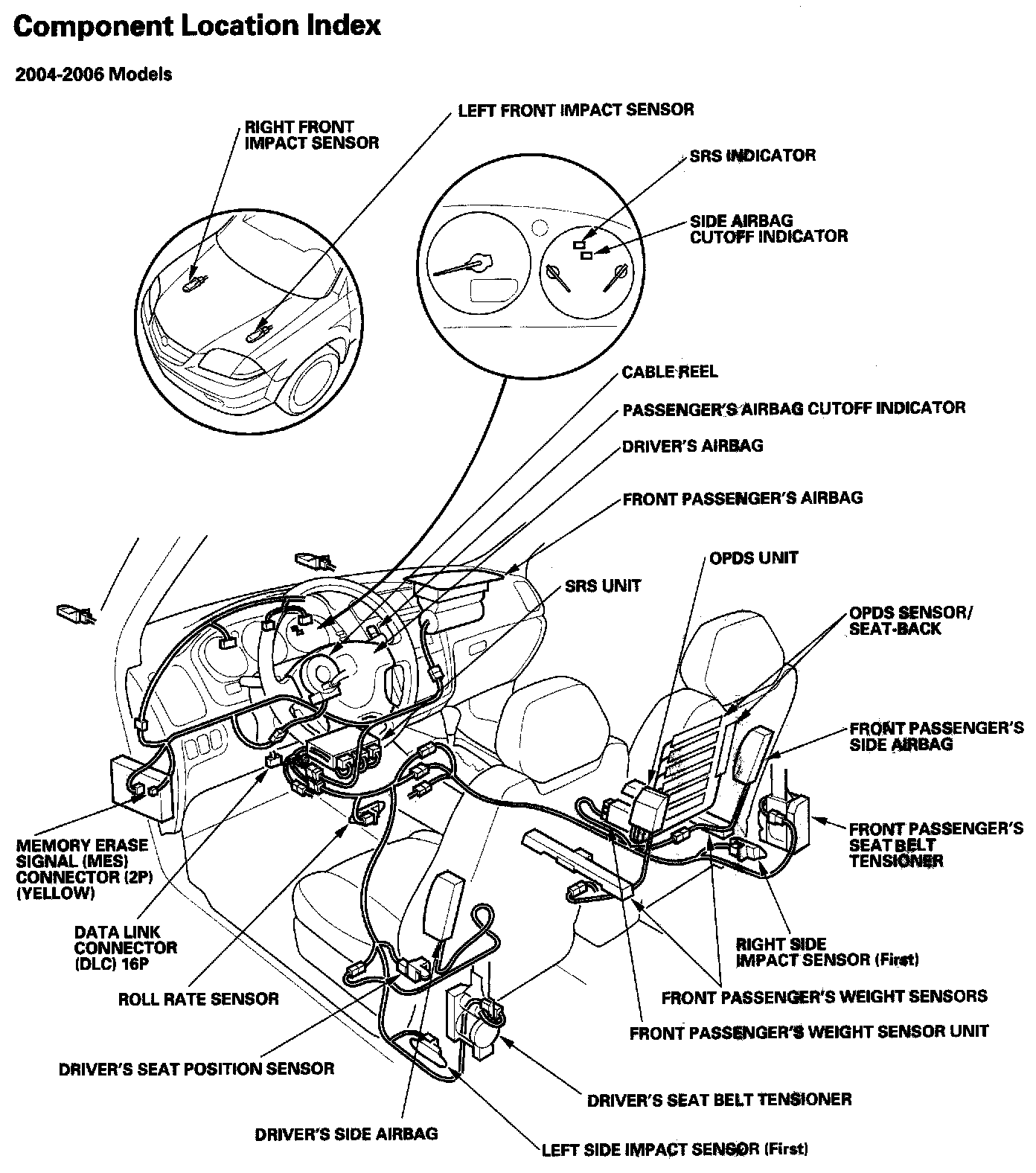

SRS - Component Location Index:
