Connector Views
163. Multiplex Control Inspection Connector:
328. Multiplex Control Unit, Door:

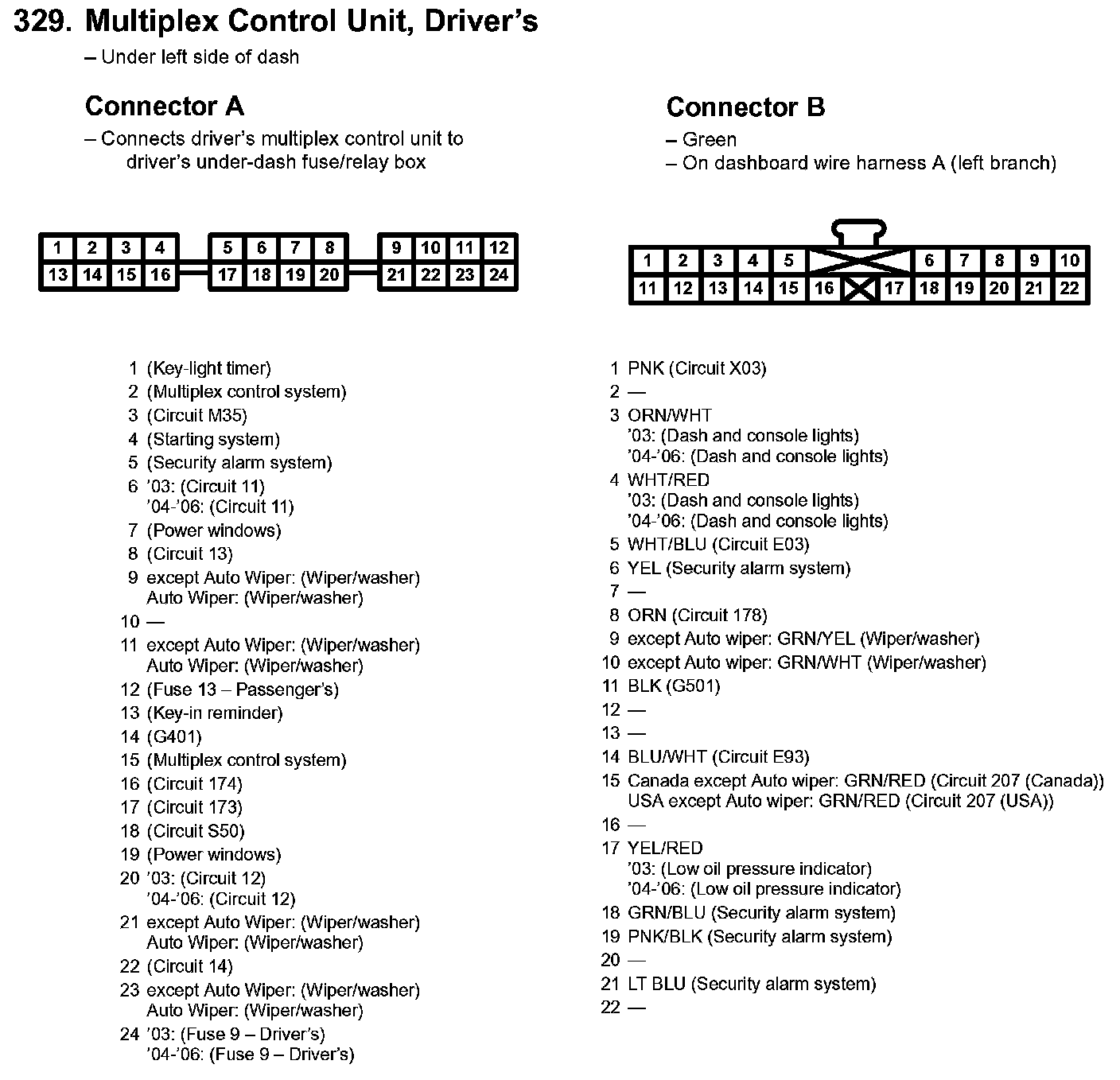

329. Multiplex Control Unit, Driver's:

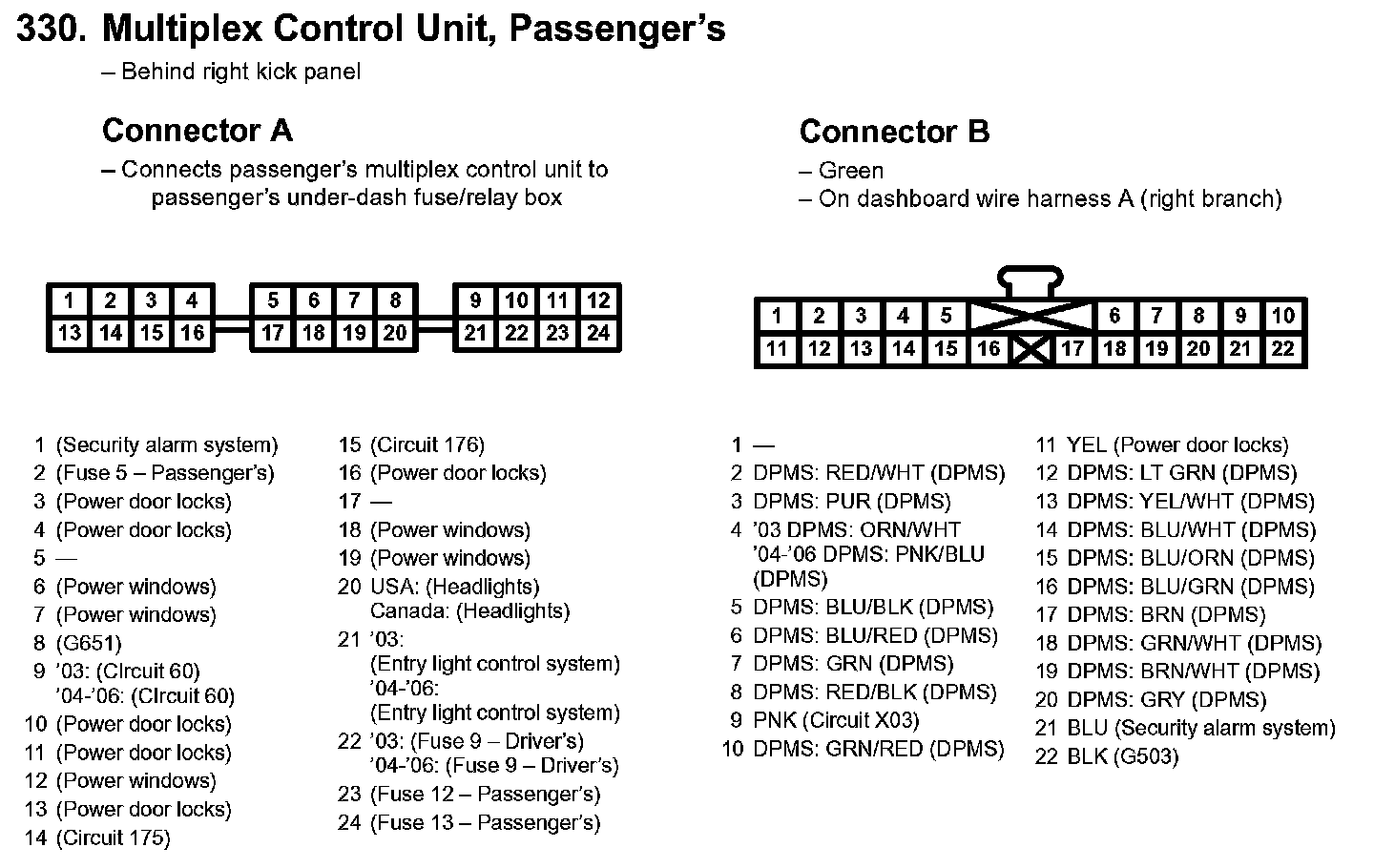

330. Multiplex Control Unit, Passenger's:
