Fuse Block

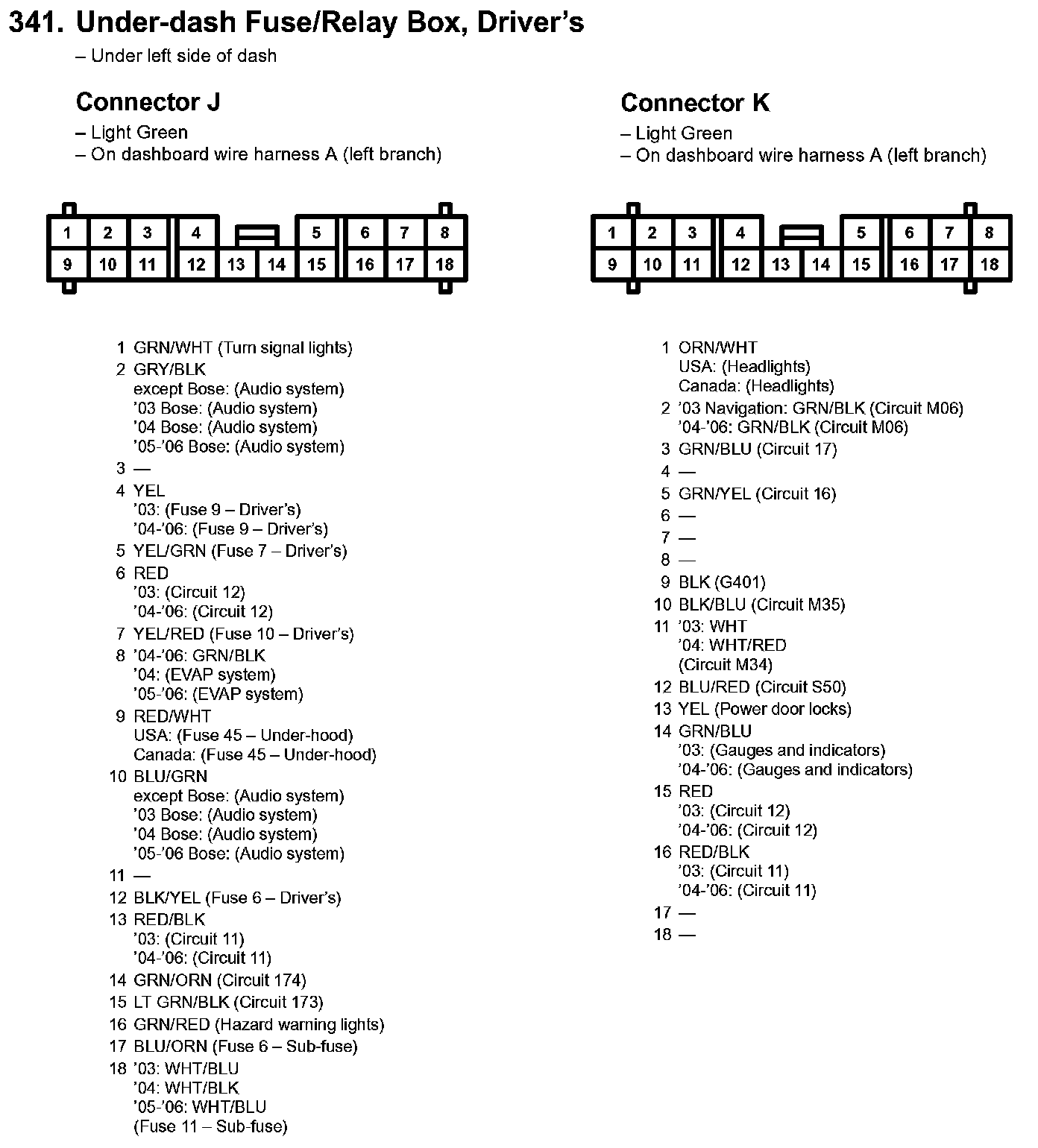

341. Under-dash Fuse/Relay Box, Driver's:

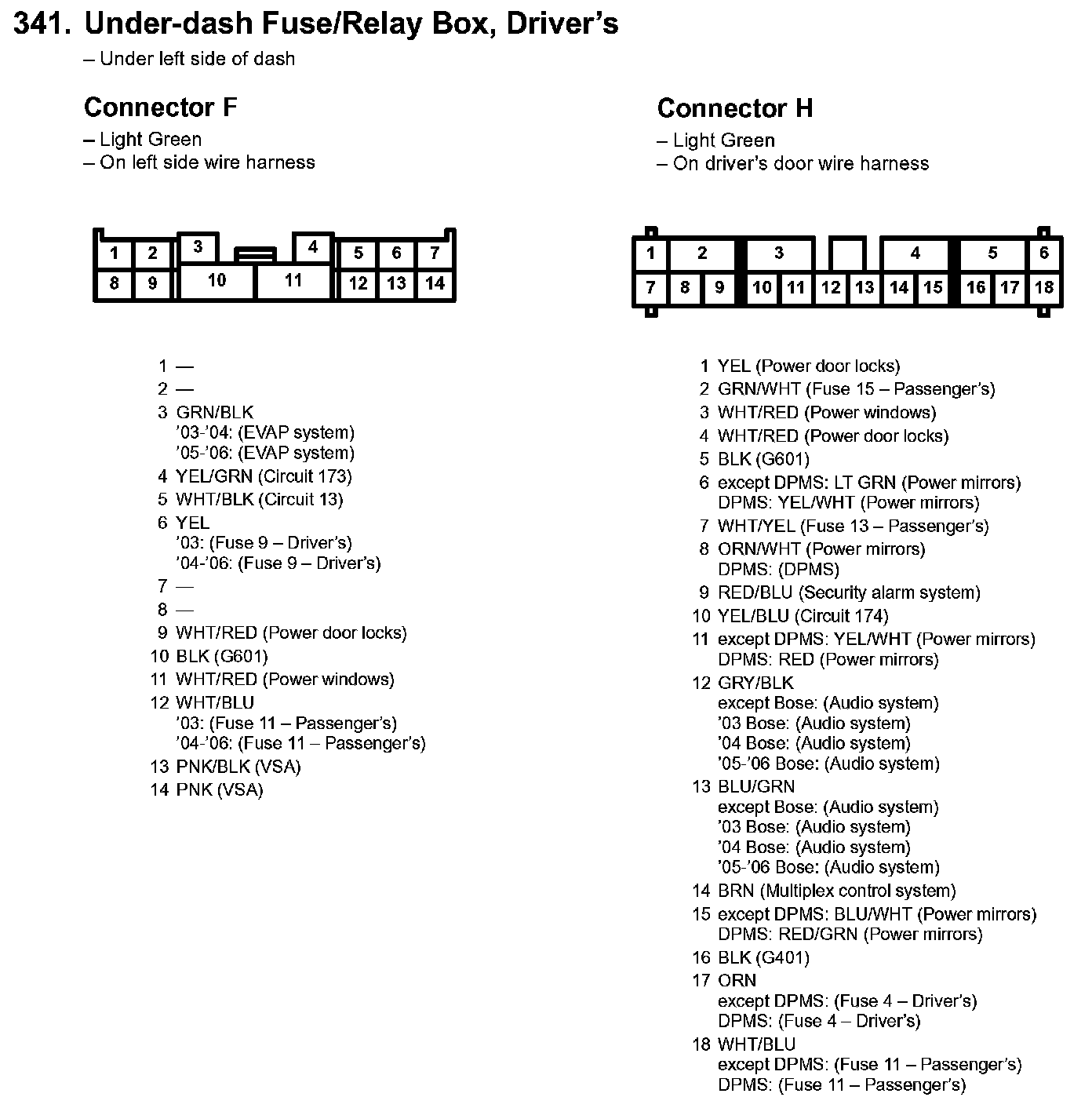

341. Under-dash Fuse/Relay Box, Driver's:

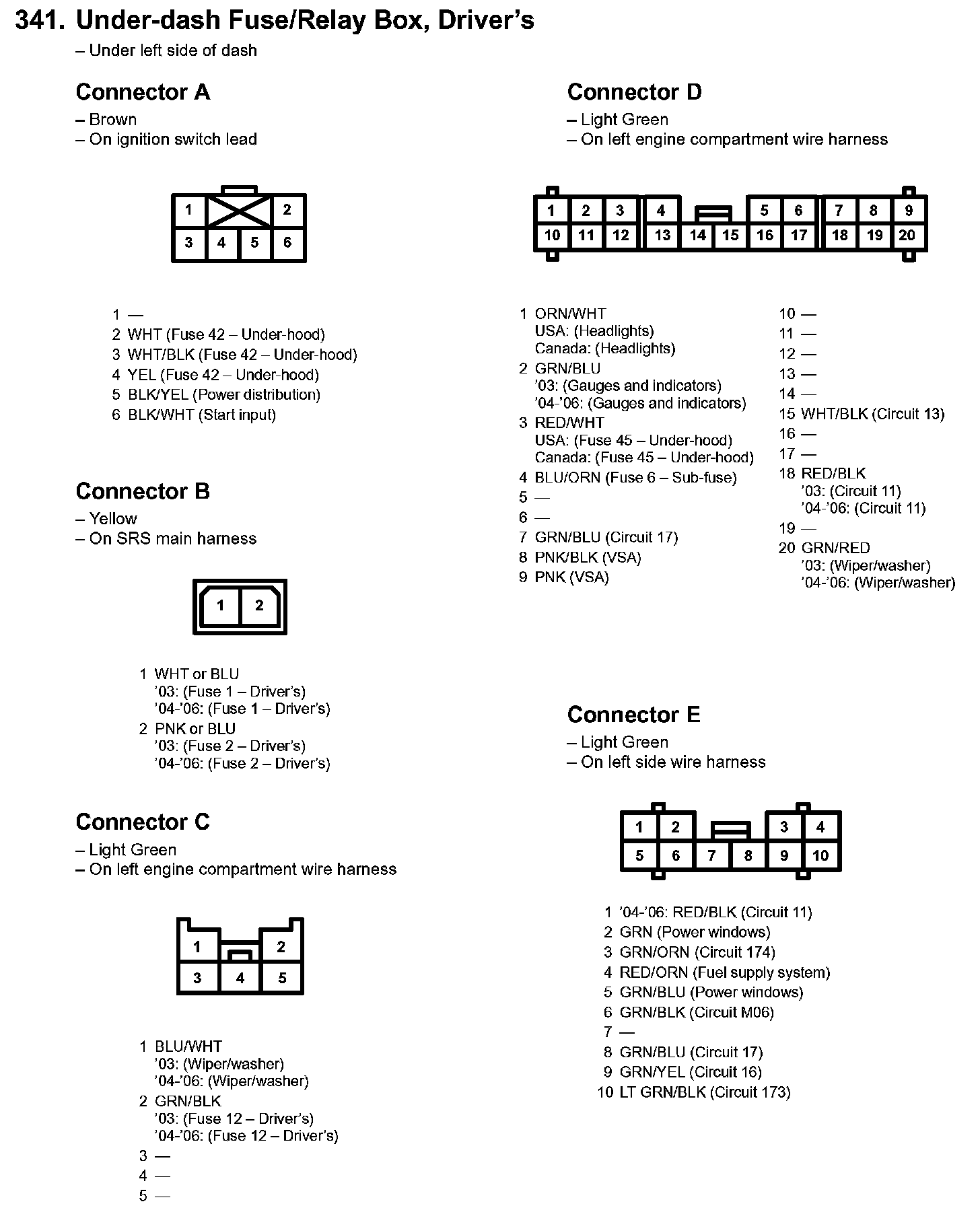

341. Under-dash Fuse/Relay Box, Driver's:

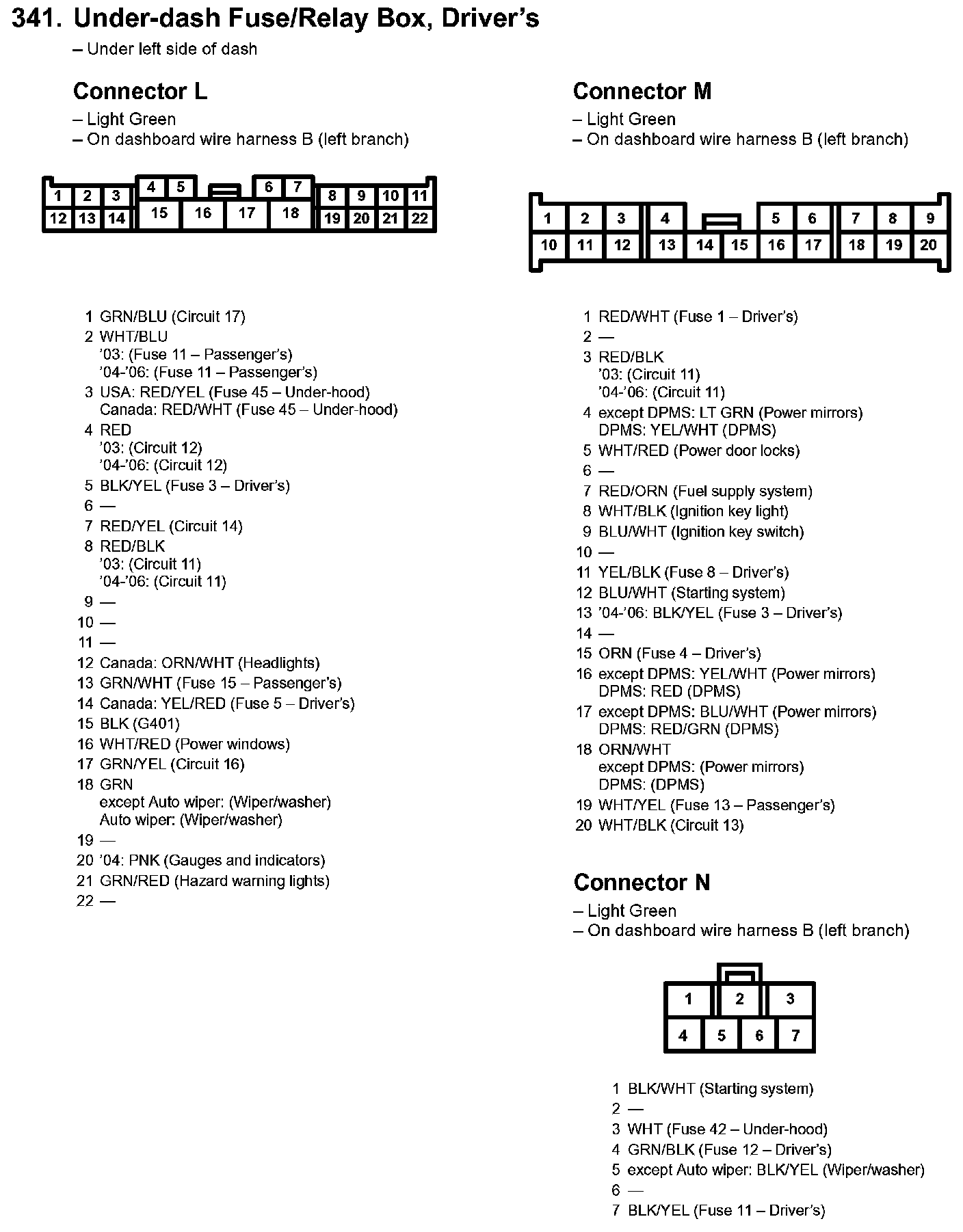

341. Under-dash Fuse/Relay Box, Driver's:



341. Under-dash Fuse/Relay Box, Driver's:

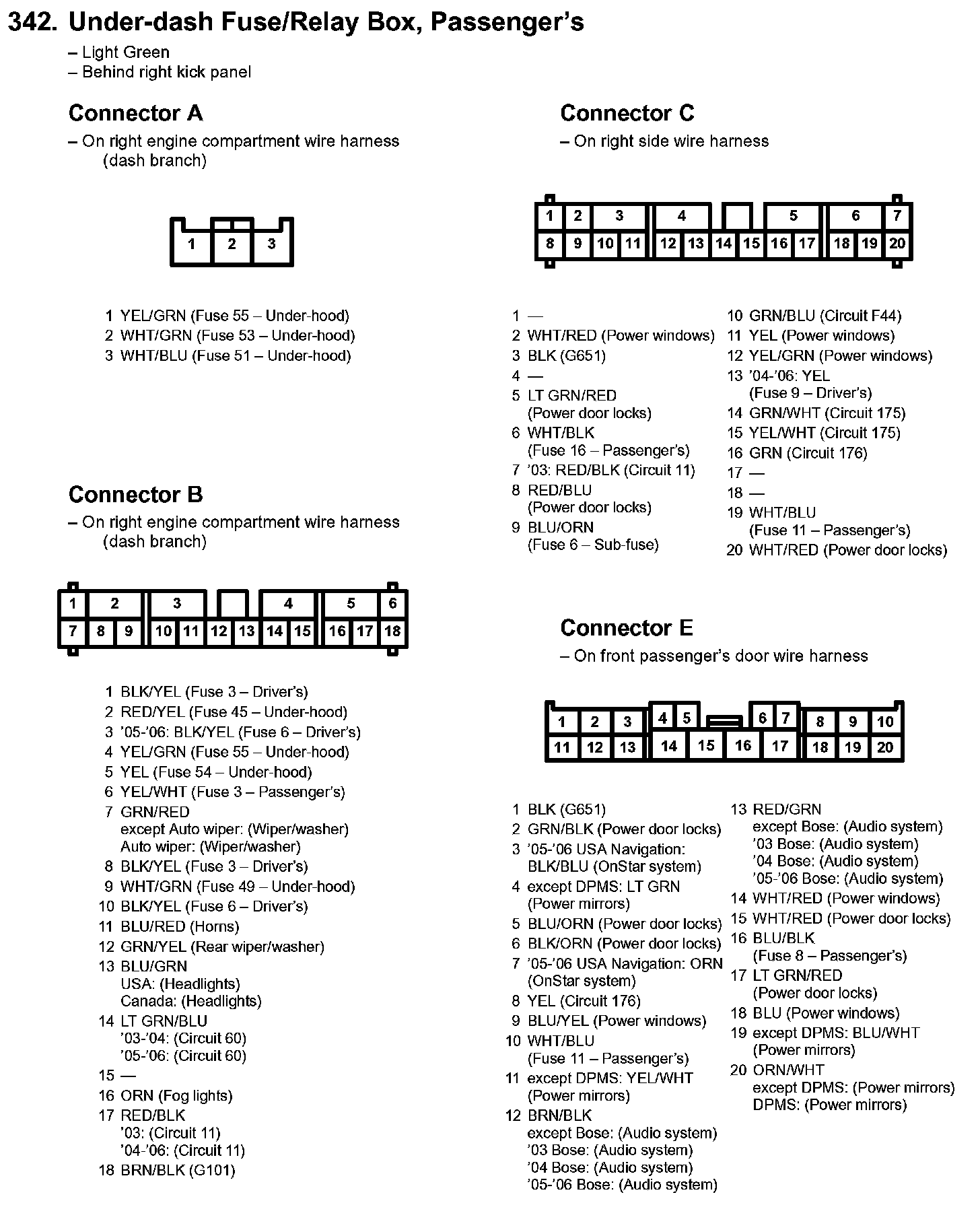

342. Under-dash Fuse/Relay Box, Passenger's:

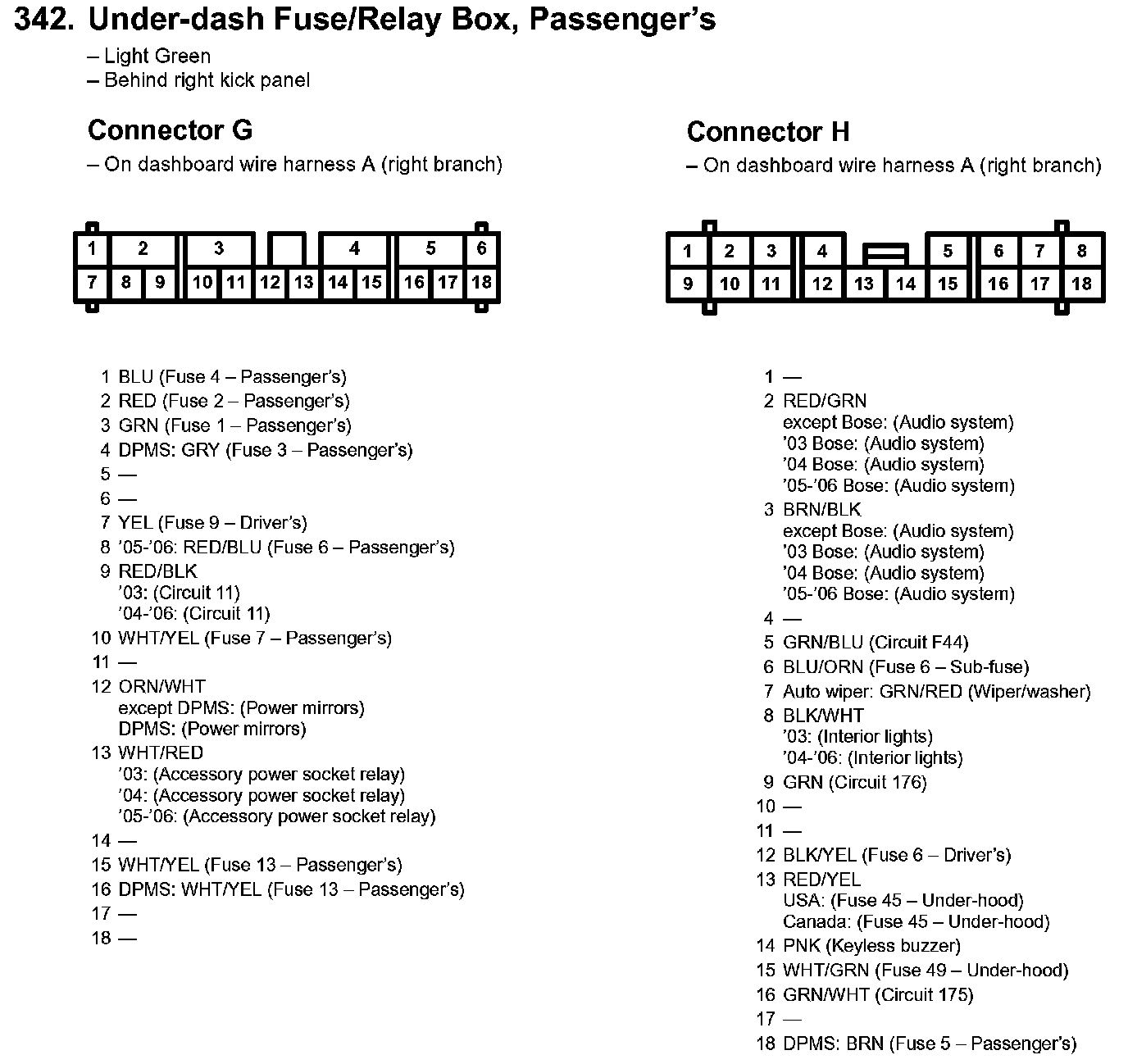

342. Under-dash Fuse/Relay Box, Passenger's:

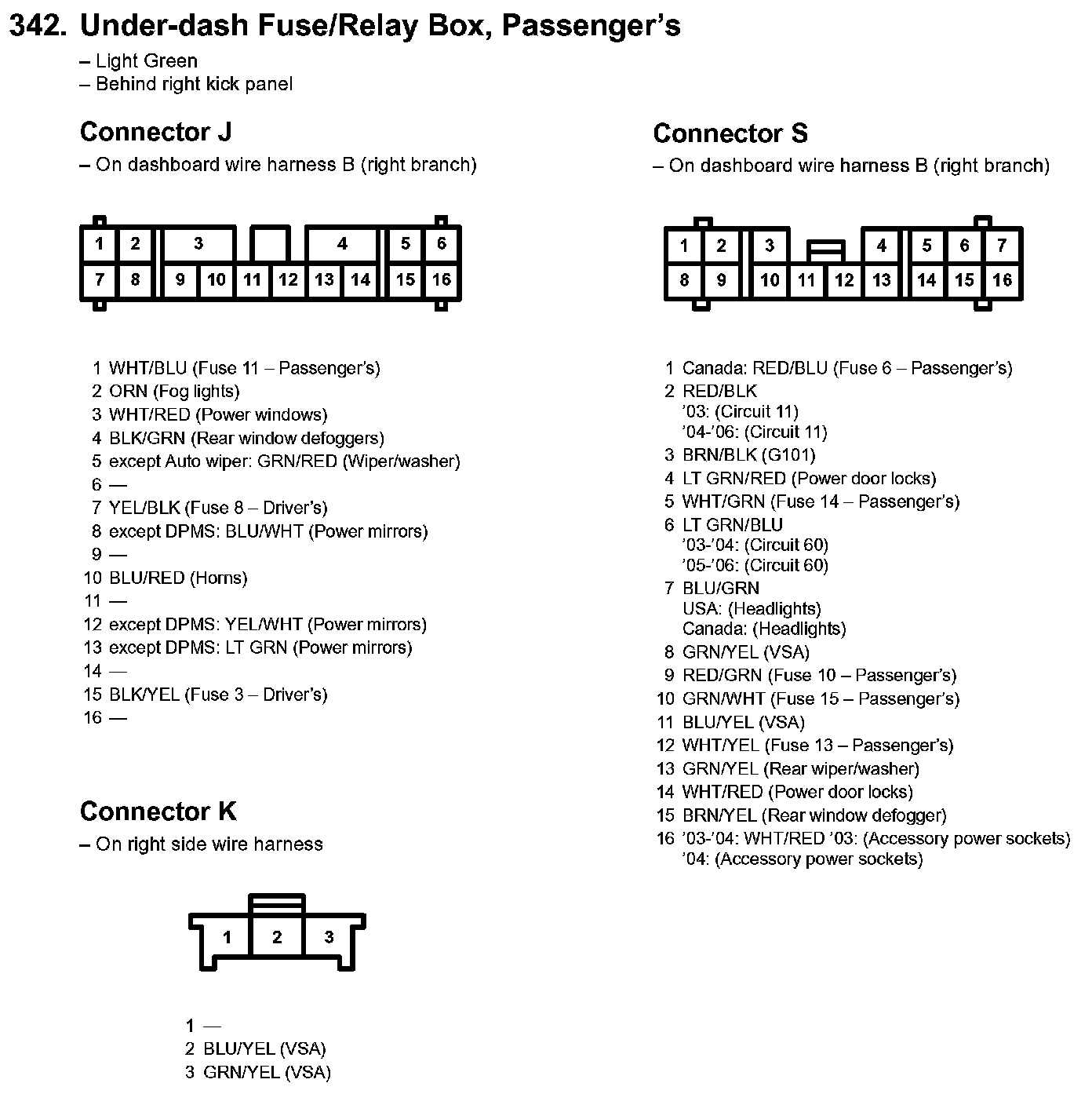

342. Under-dash Fuse/Relay Box, Passenger's:

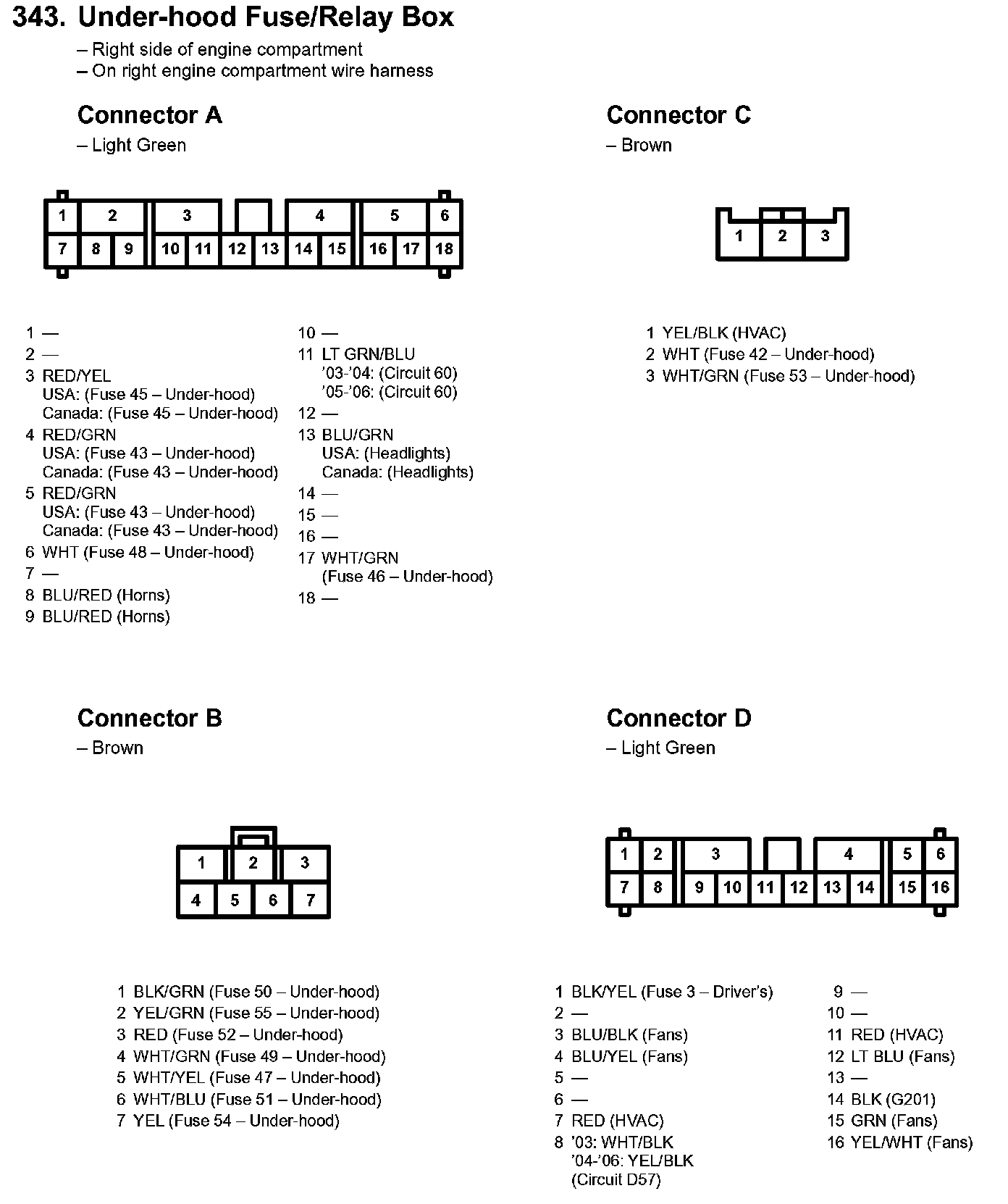

343. Under-hood Fuse/Relay Box:
