Home >> Acura >> 2006 >> MDX V6-3.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Module >> Locations

Navigation Module: Locations

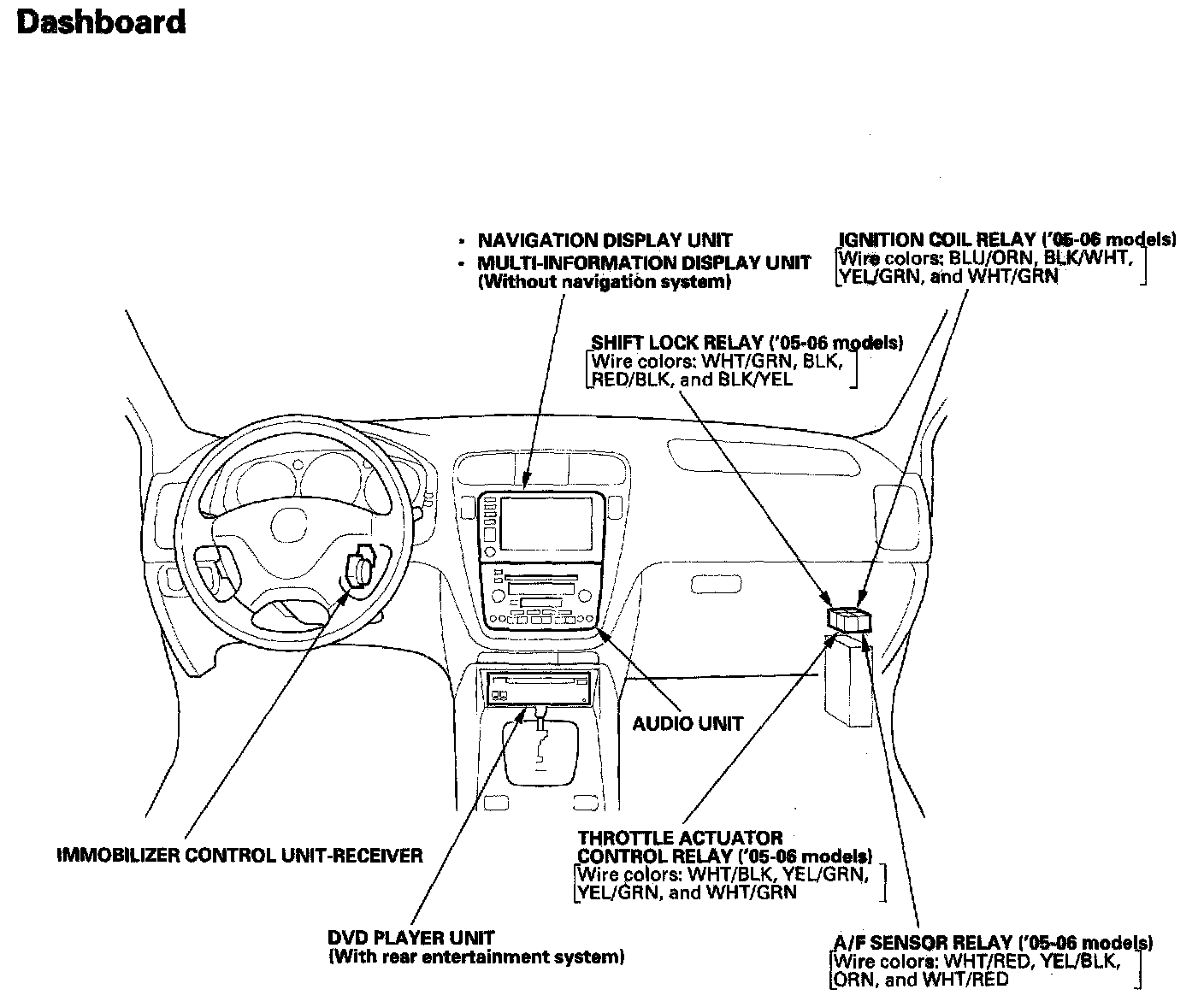

Relay And Control Unit Locations - Dashboard Part 3:



Relay And Control Unit Locations - Seats:

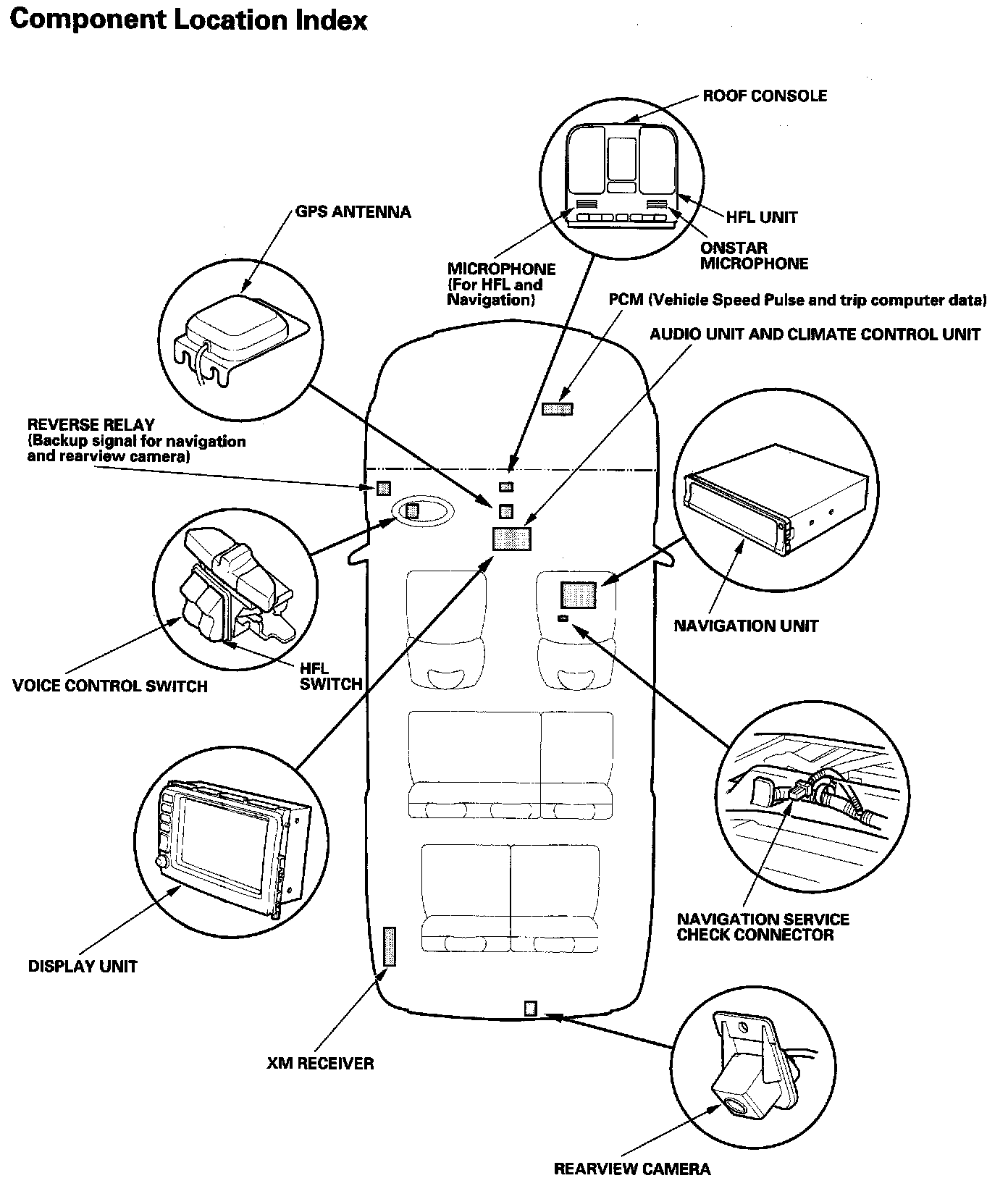

Navigation System - Component Location Index:
