Home >> Acura >> 2005 >> TSX L4-2.4L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Traction Control Module >> Locations

Traction Control Module: Locations

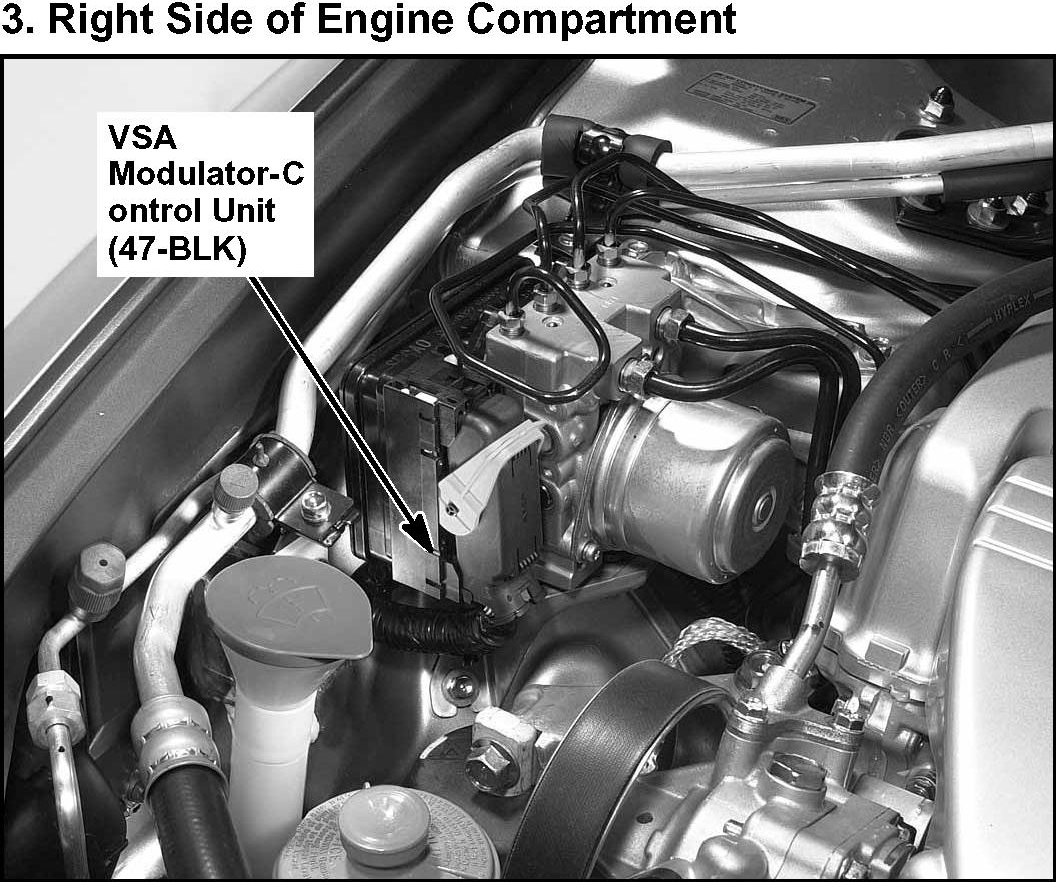

3. Right Side Of Engine Compartment:

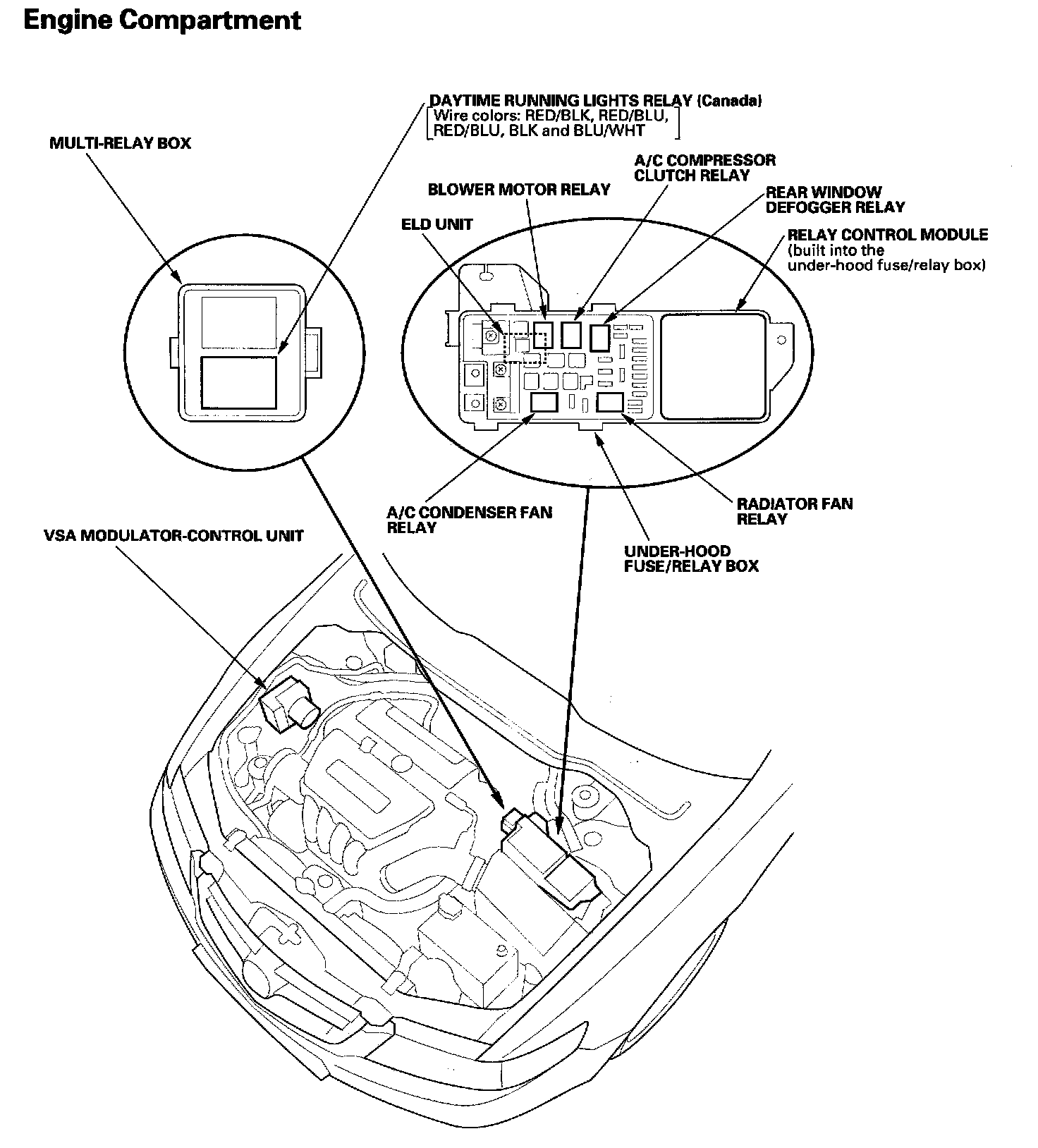

Relay And Control Unit Locations - Engine Compartment:
