Automatic Transmission/Transaxle
>>
Shift Interlock, A/T
Shift Interlock, A/T

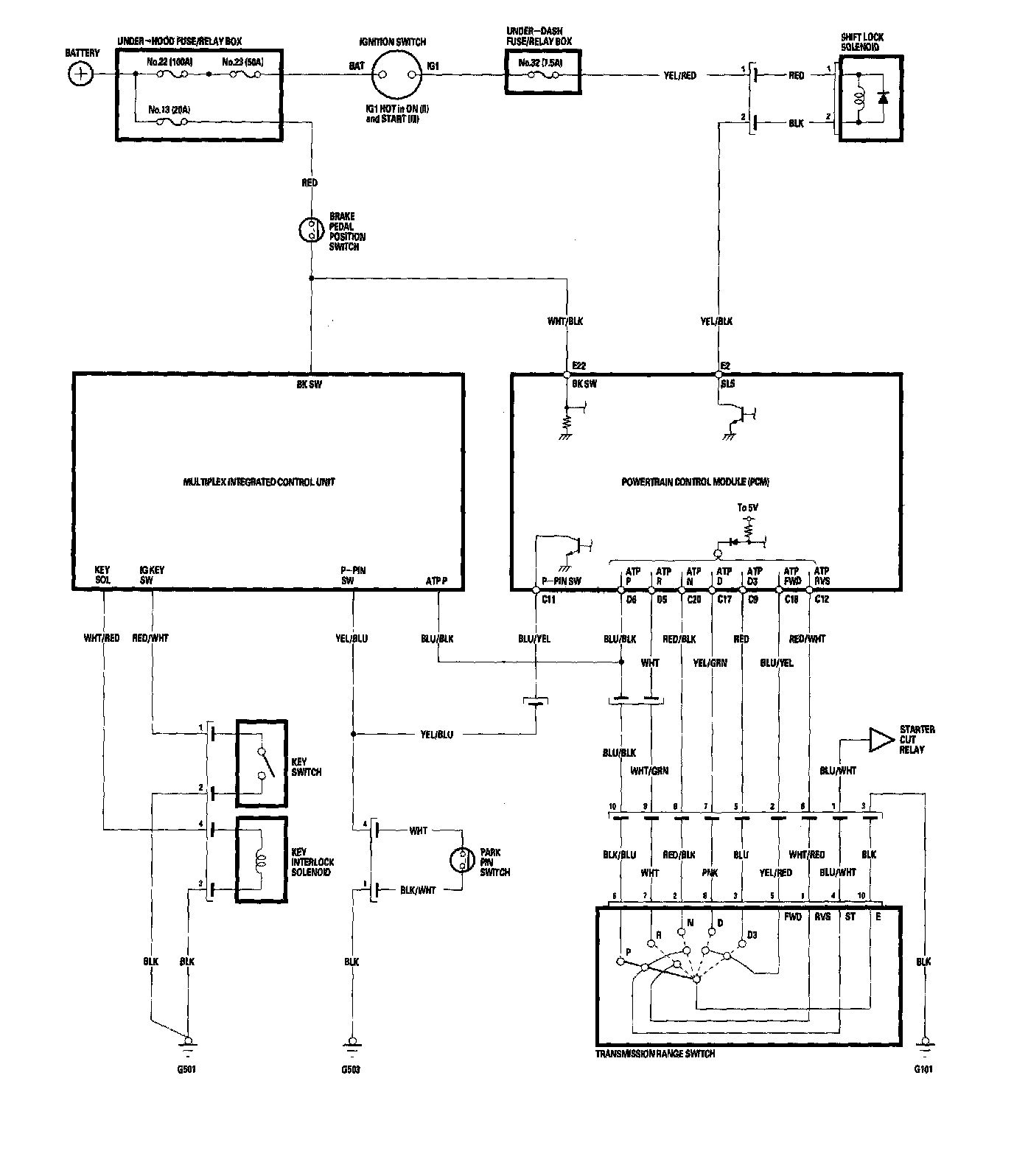

A/T Interlock System Circuit:
