Starting and Charging: Locations

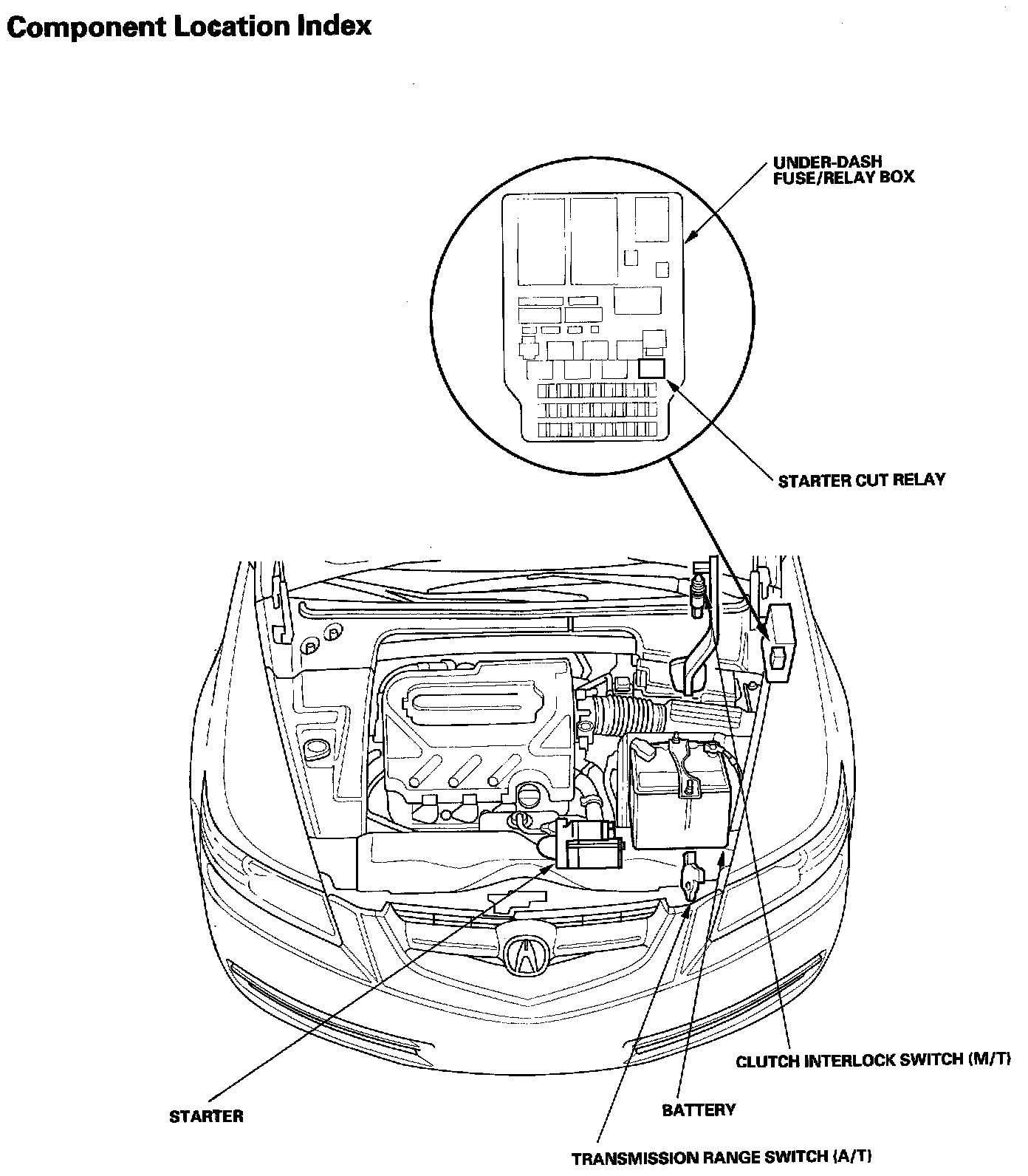

Starting System - Component Location Index:

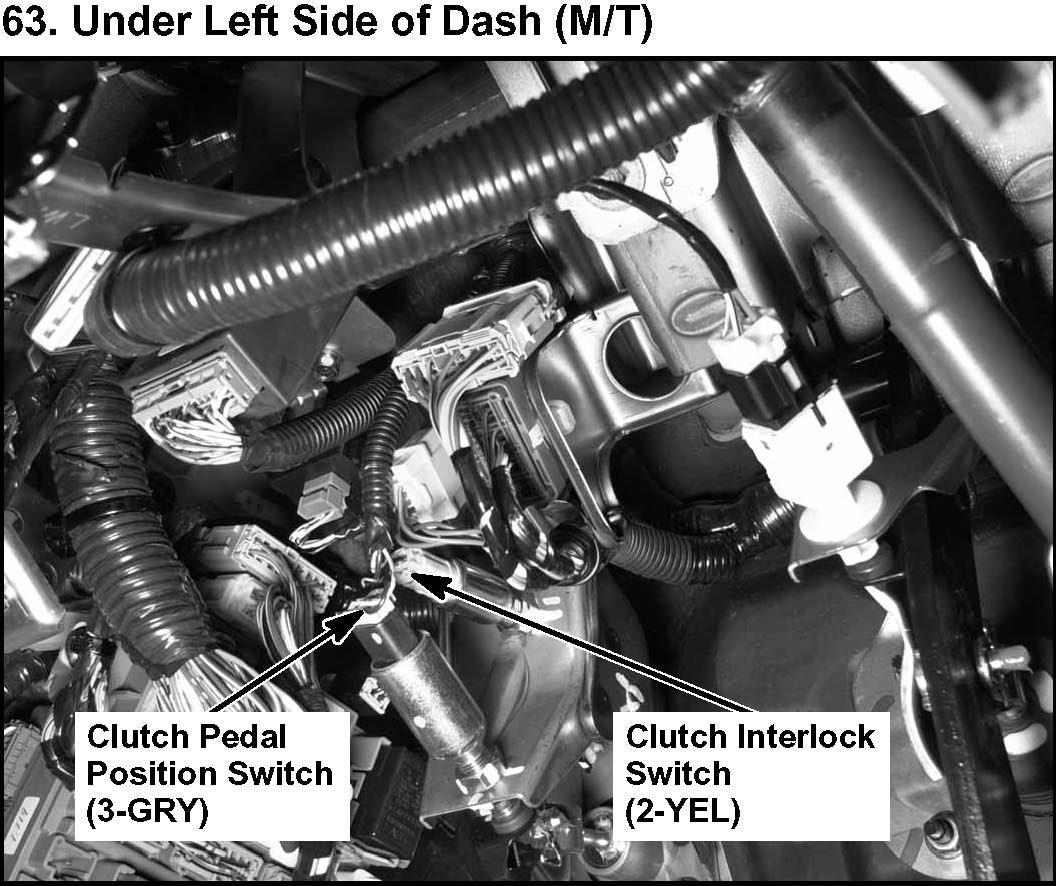

63. Under Left Side of Dash (M/T):
