Knock Sensor Subharness

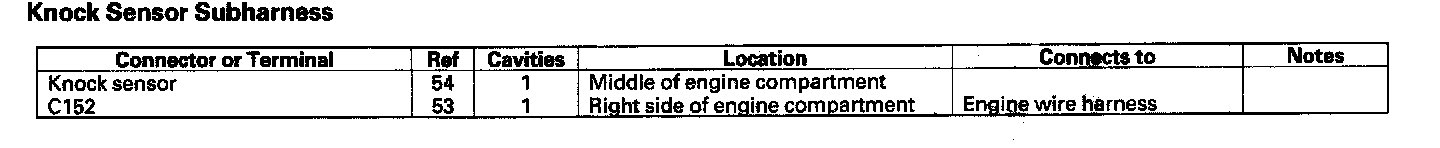

Knock Sensor Subharness

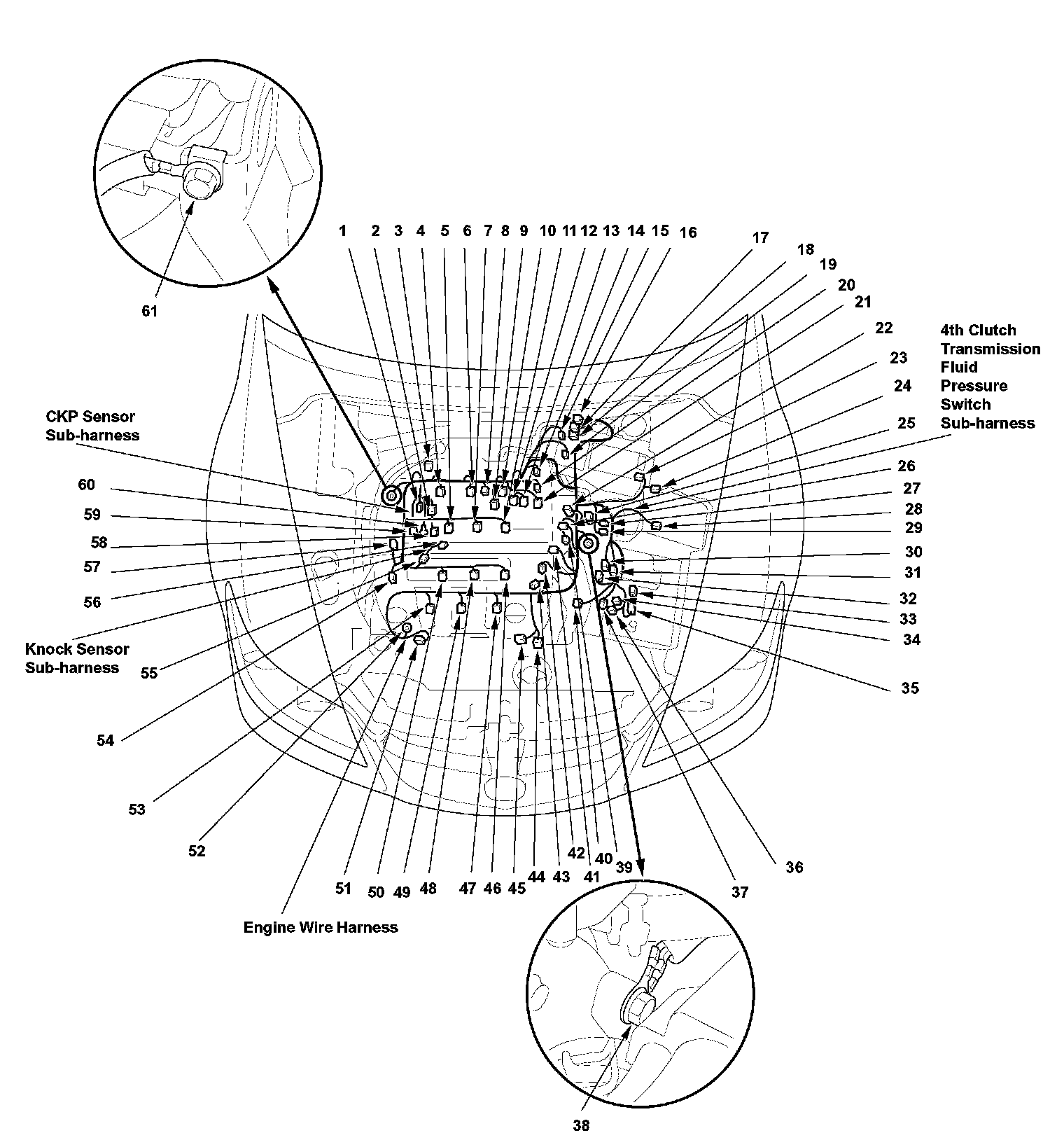

Harness Location View:

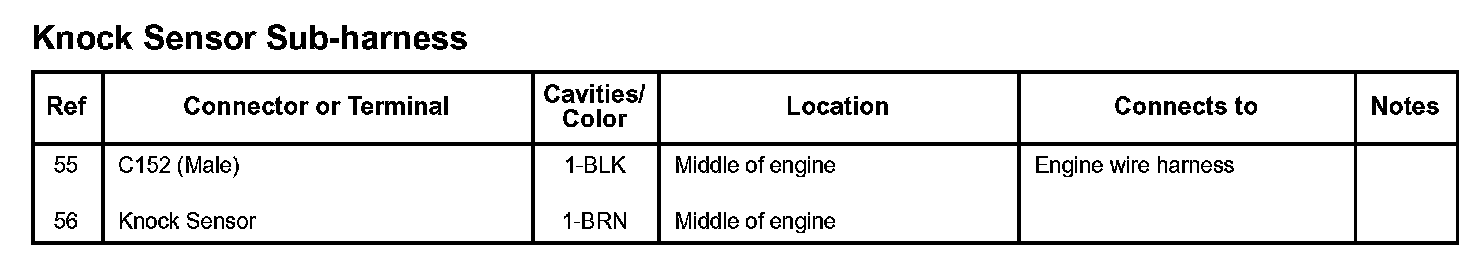

Knock Sensor Sub-harness:

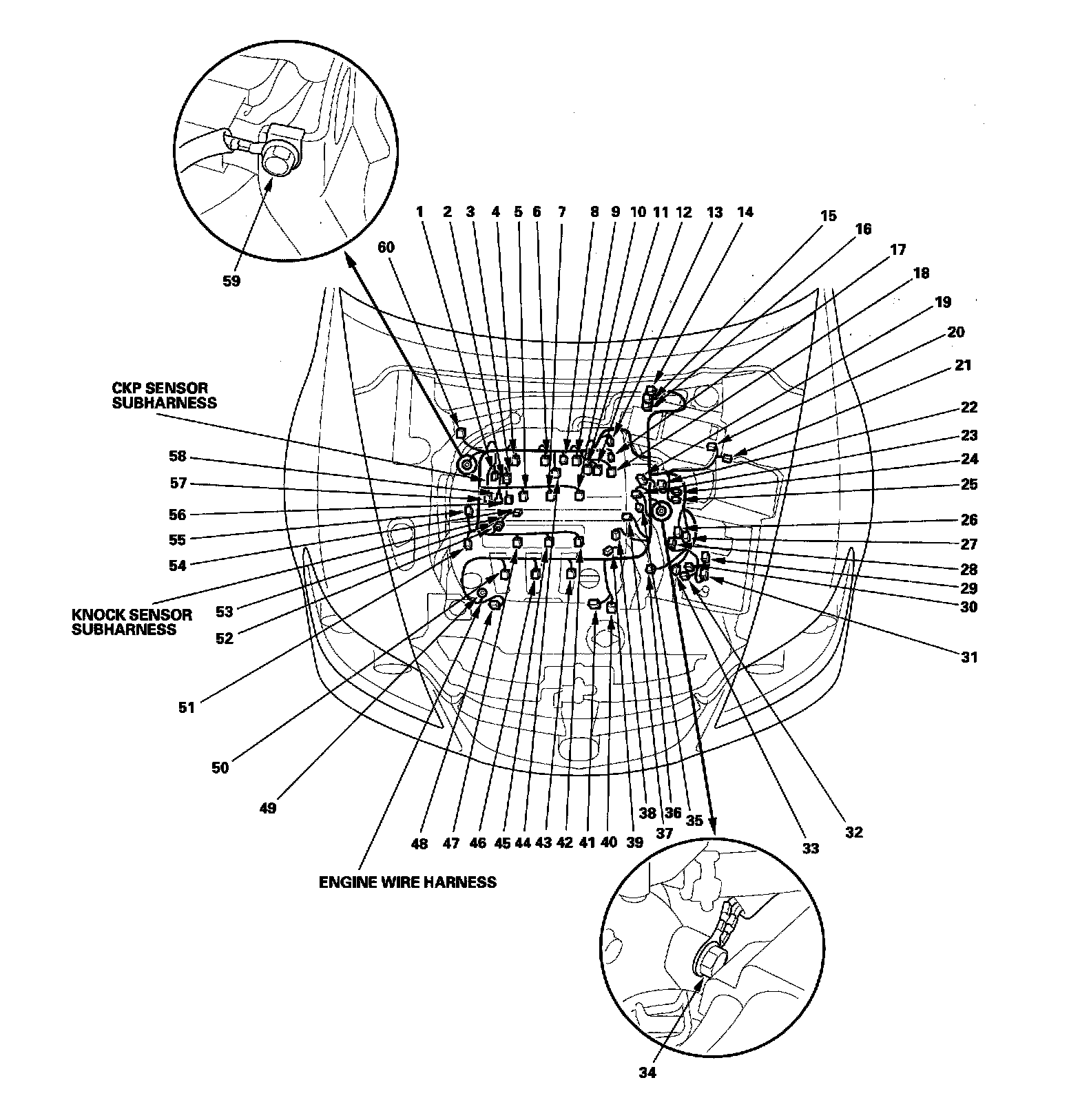

Harness Location View:
Knock Sensor Subharness:
