Home >> Acura >> 2005 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 76-100 >> 77

View 76-100: 77

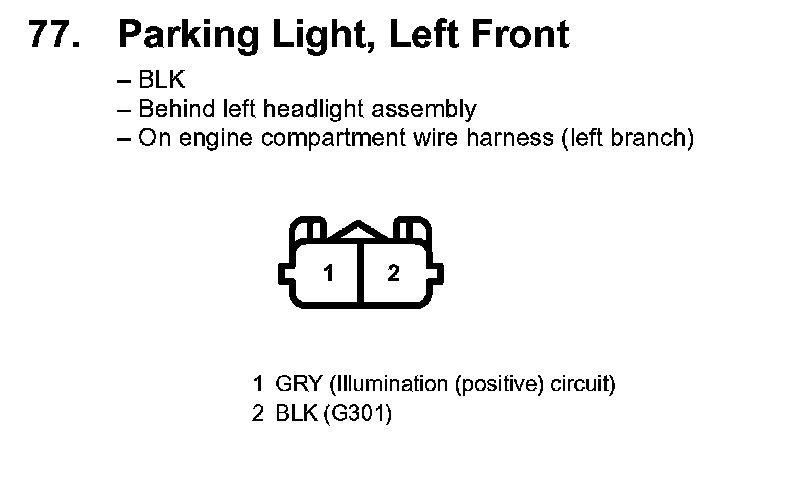

77. Parking Light, Left Front:

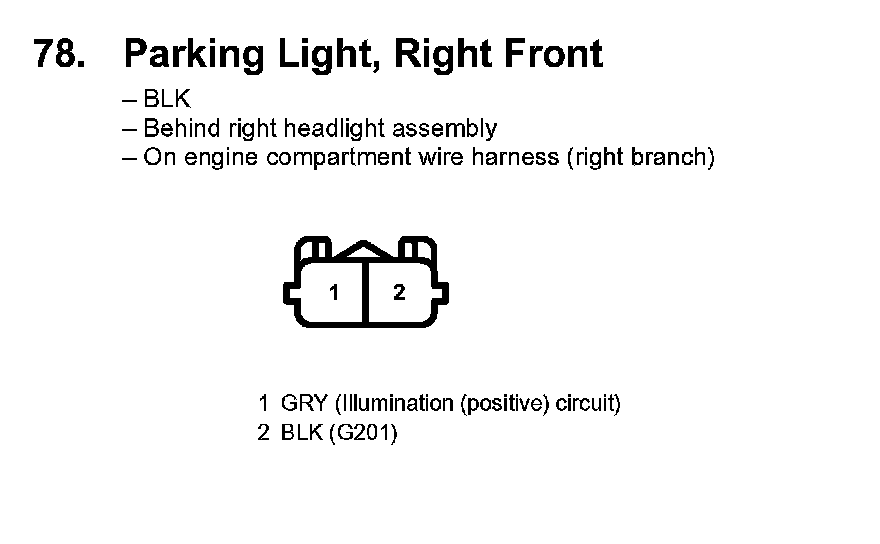

78. Parking Light, Right Front:
