View 26-50: 49

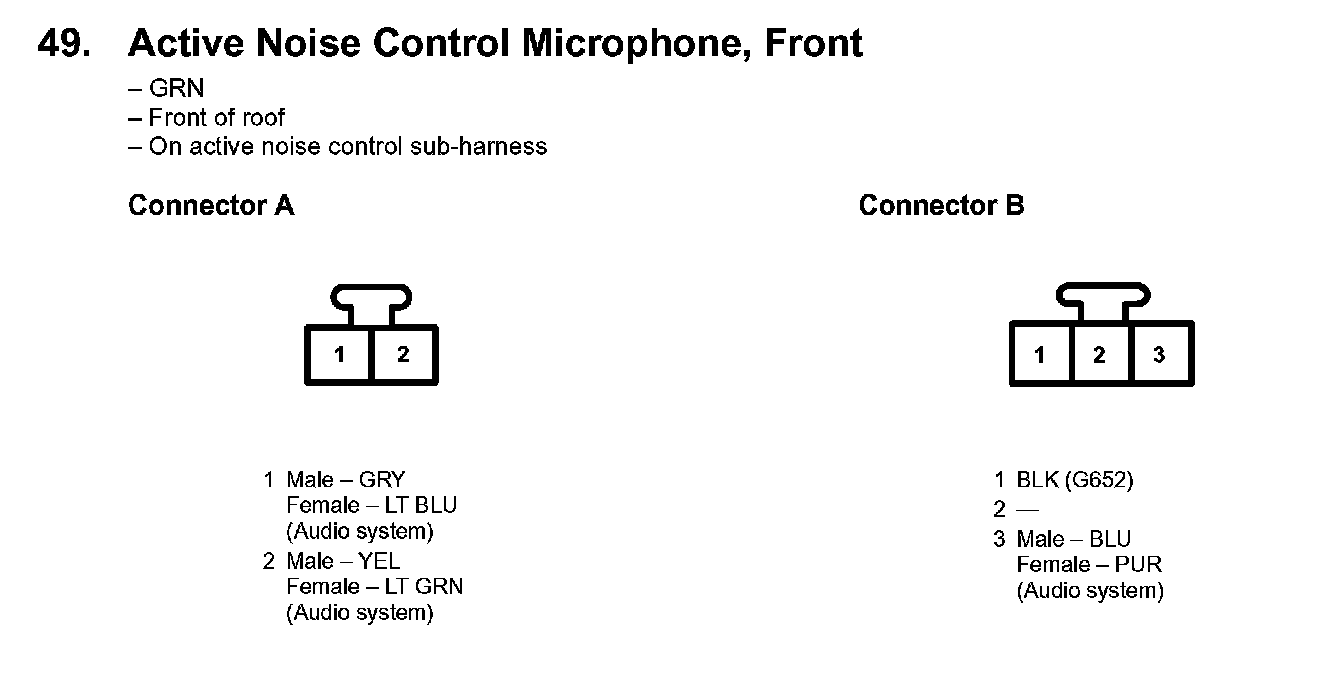

49. Active Noise Control Microphone, Front:

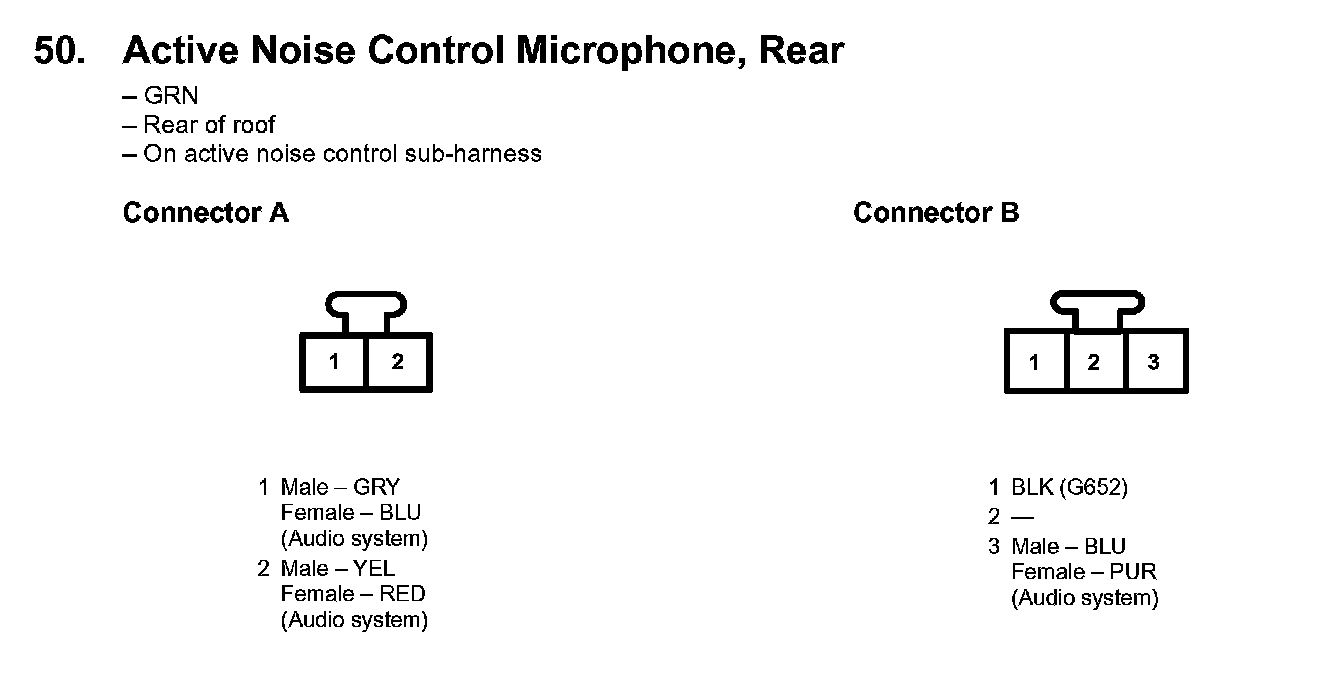

50. Active Noise Control Microphone, Rear:
