View 1-25: 14

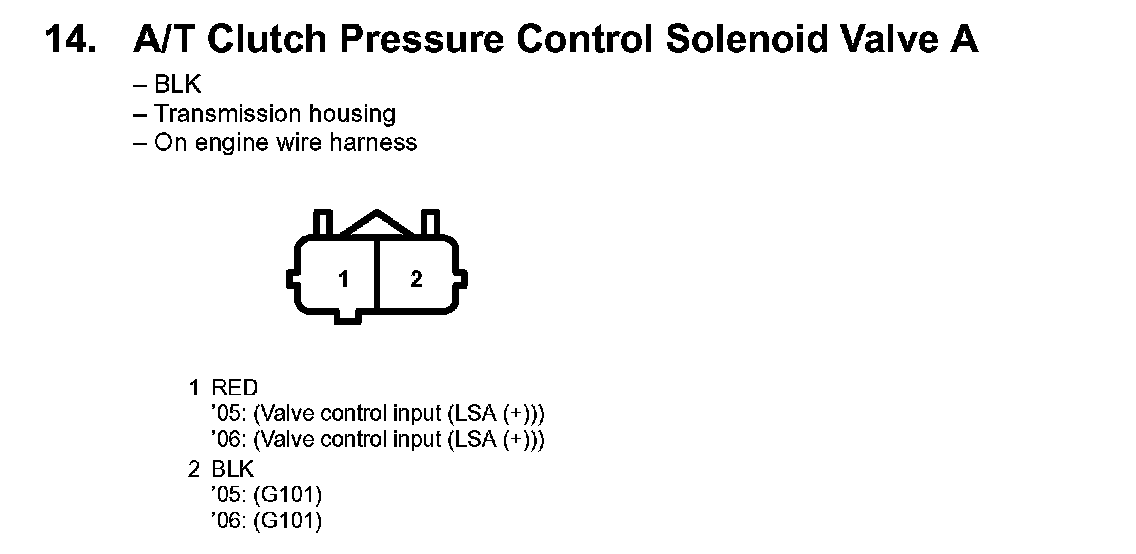

14. A/T Clutch Pressure Control Solenoid Valve A:

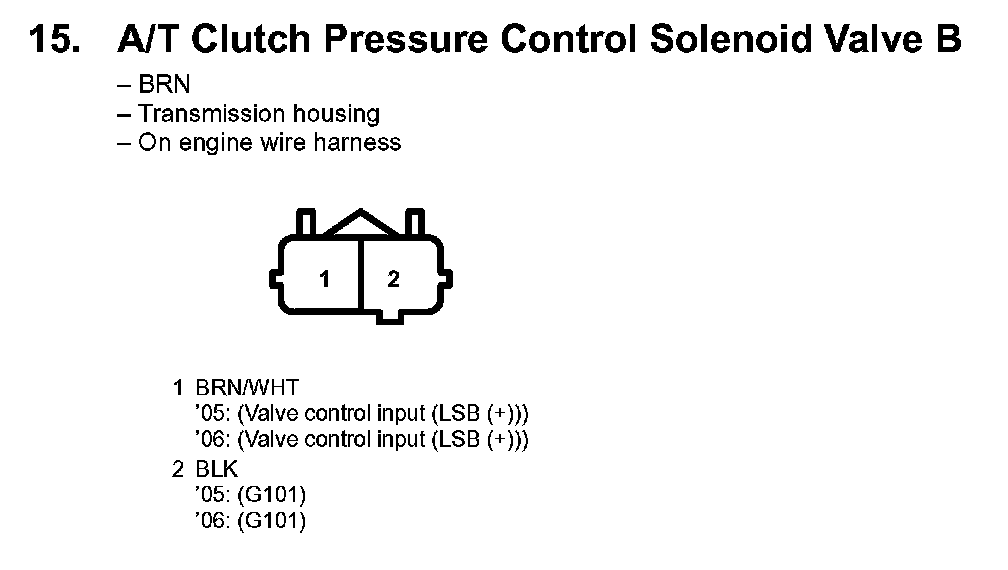

15. A/T Clutch Pressure Control Solenoid Valve B:



16. A/T Clutch Pressure Control Solenoid Valve C:
