Control Module Pinout Values
Control Module Pinout Values

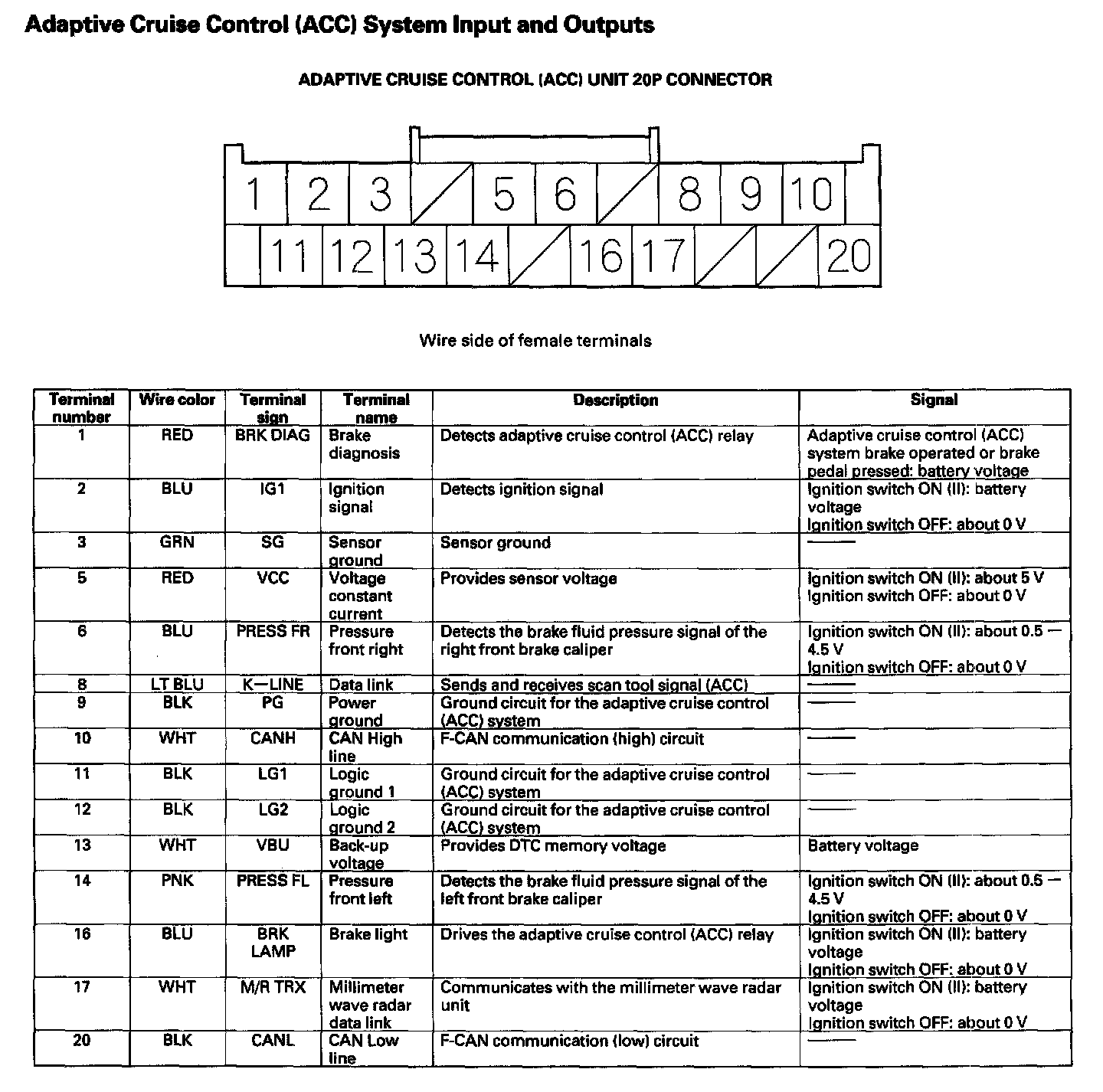

Adaptive Cruise Control (ACC) System Inputs And Outputs:

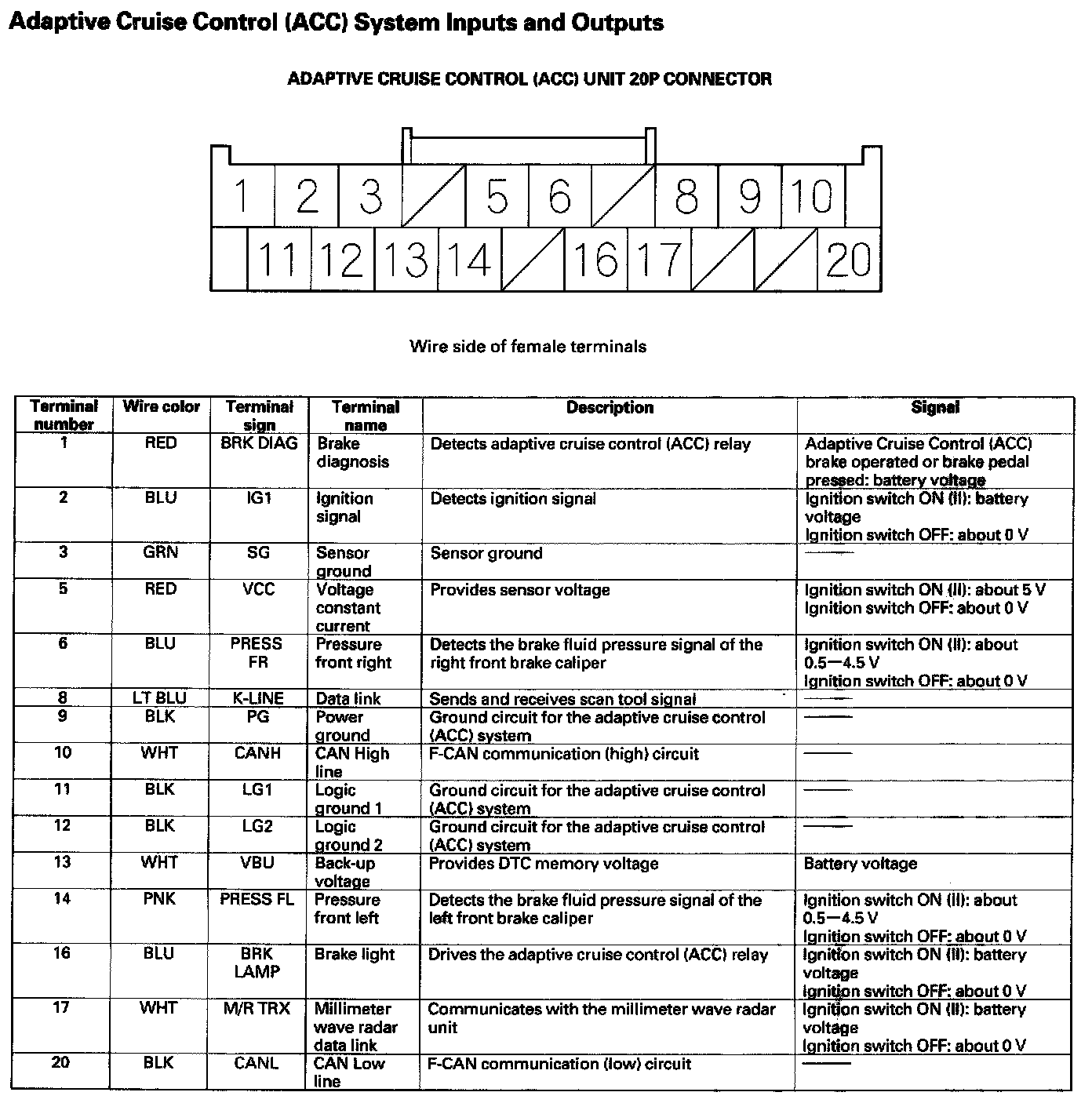

Adaptive Cruise Control (ACC) System Inputs And Outputs:
Adaptive Cruise Control (ACC) System Inputs And Outputs:
