Home >> Acura >> 2005 >> RL V6-3.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Alarm Module >> Locations

Alarm Module: Locations

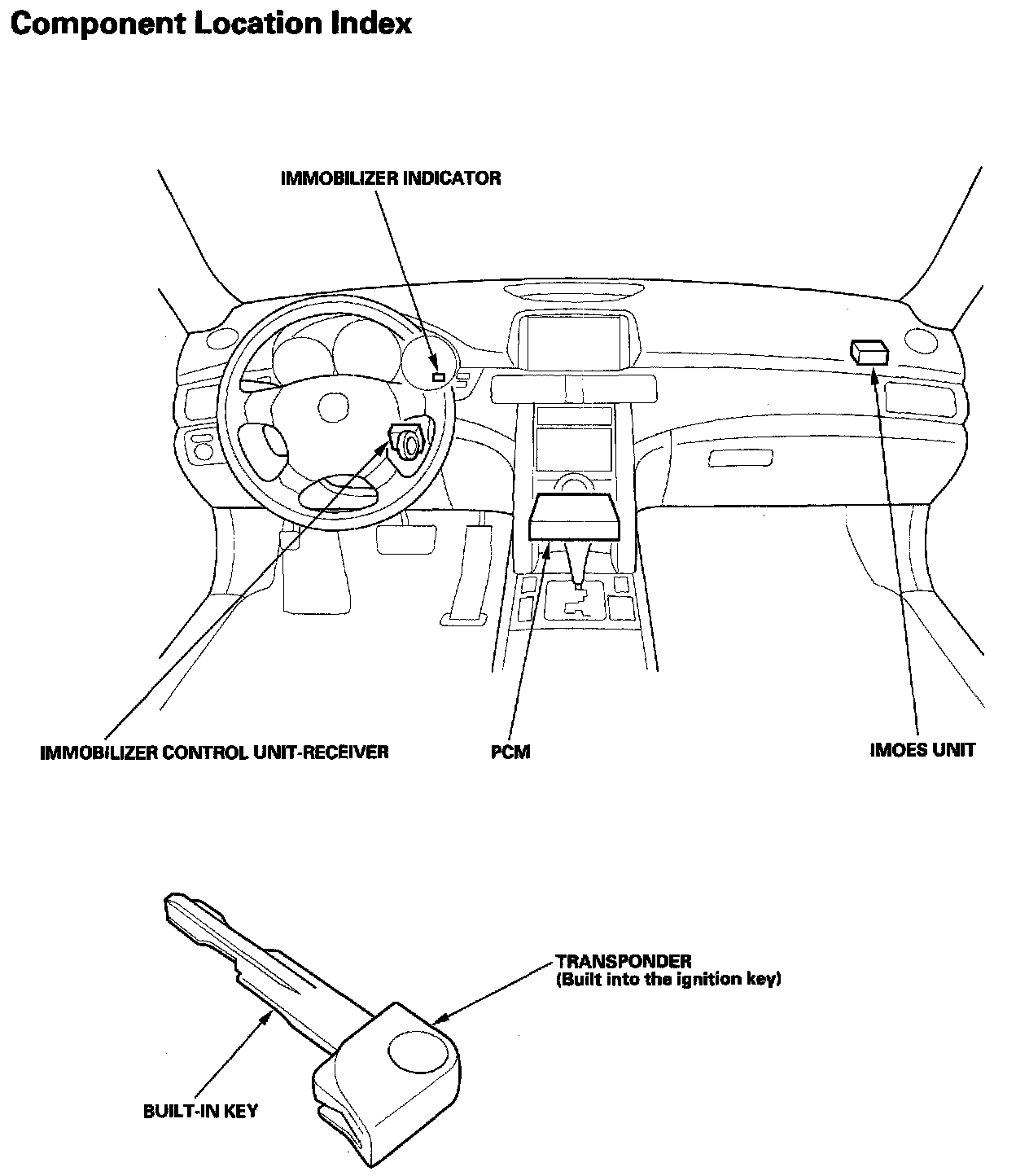

Immobilizer System - Component Location Index:



56. Under Steering Column Cover:

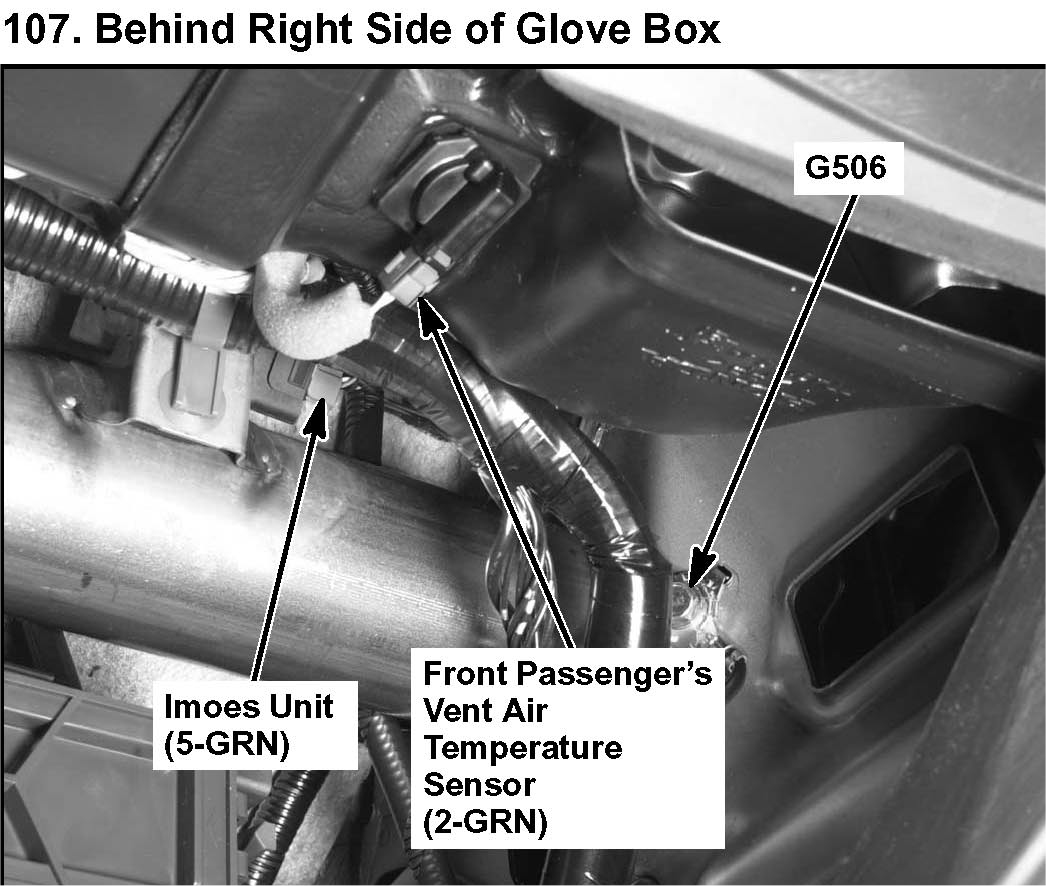

107. Behind Right Side of Glove Box:
