Connector Locations

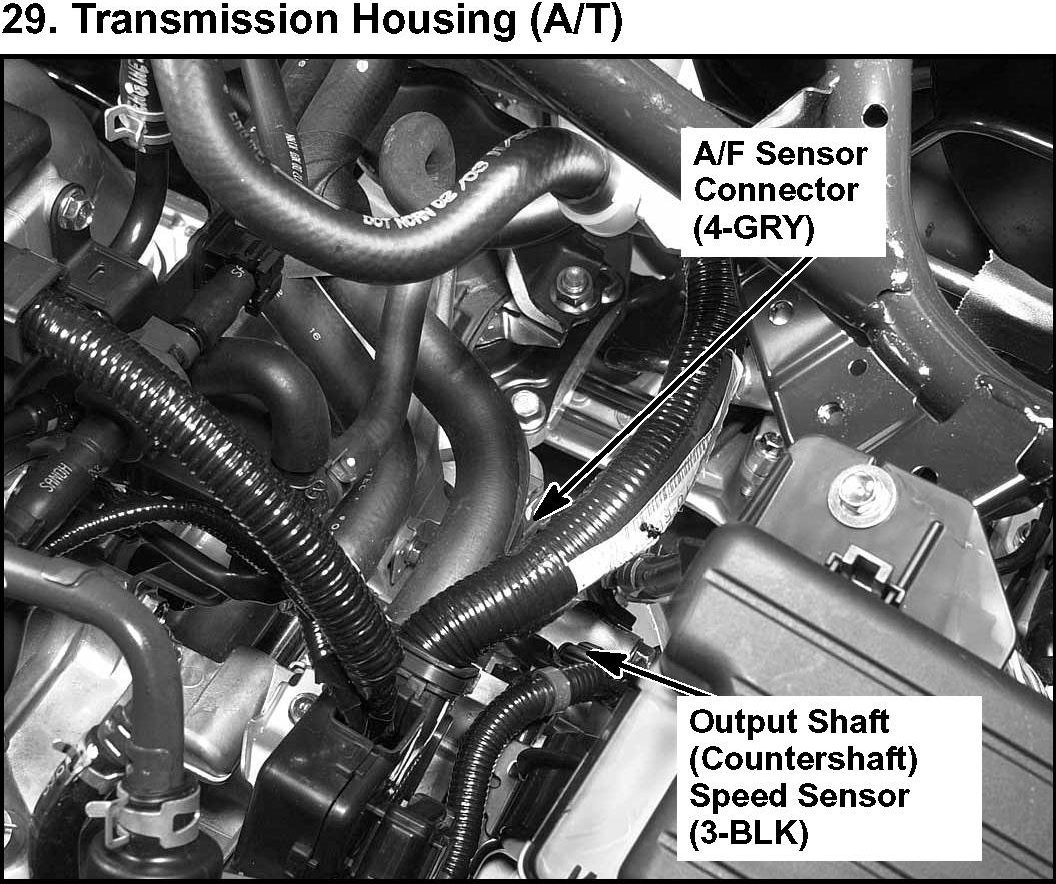

29. Transmission Housing (A/T):

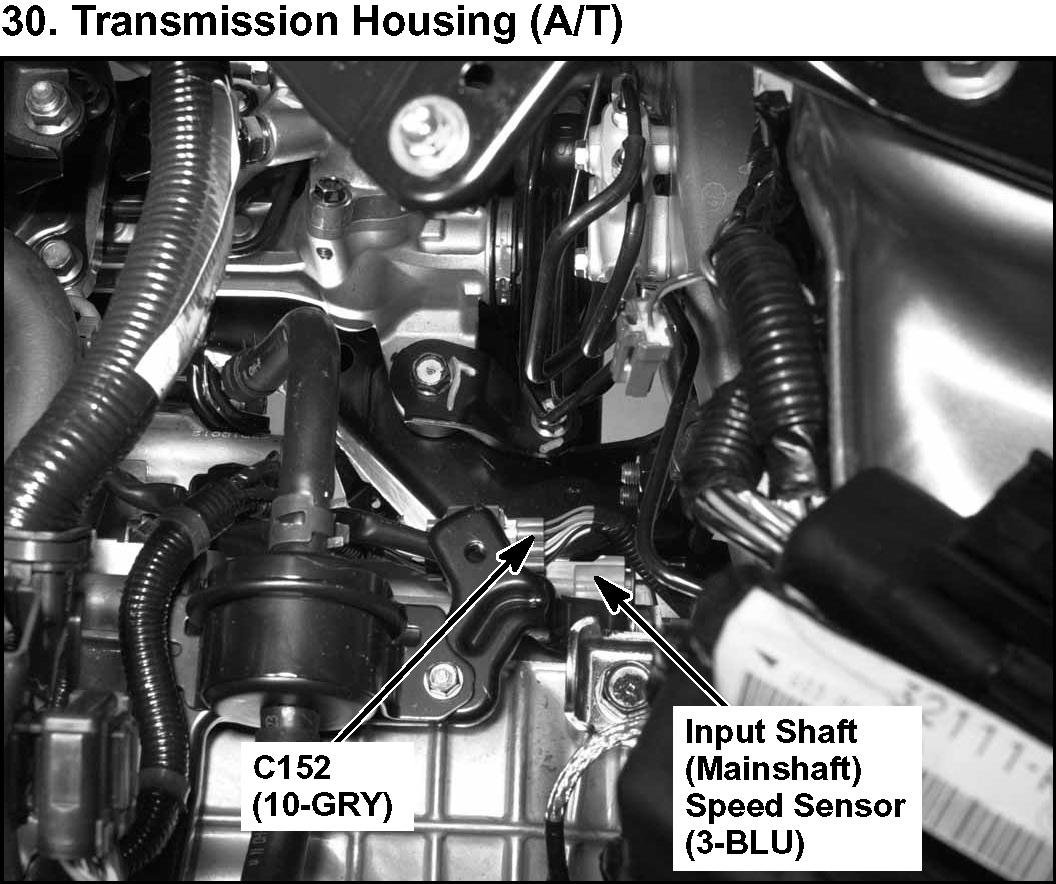

30. Transmission Housing (A/T):

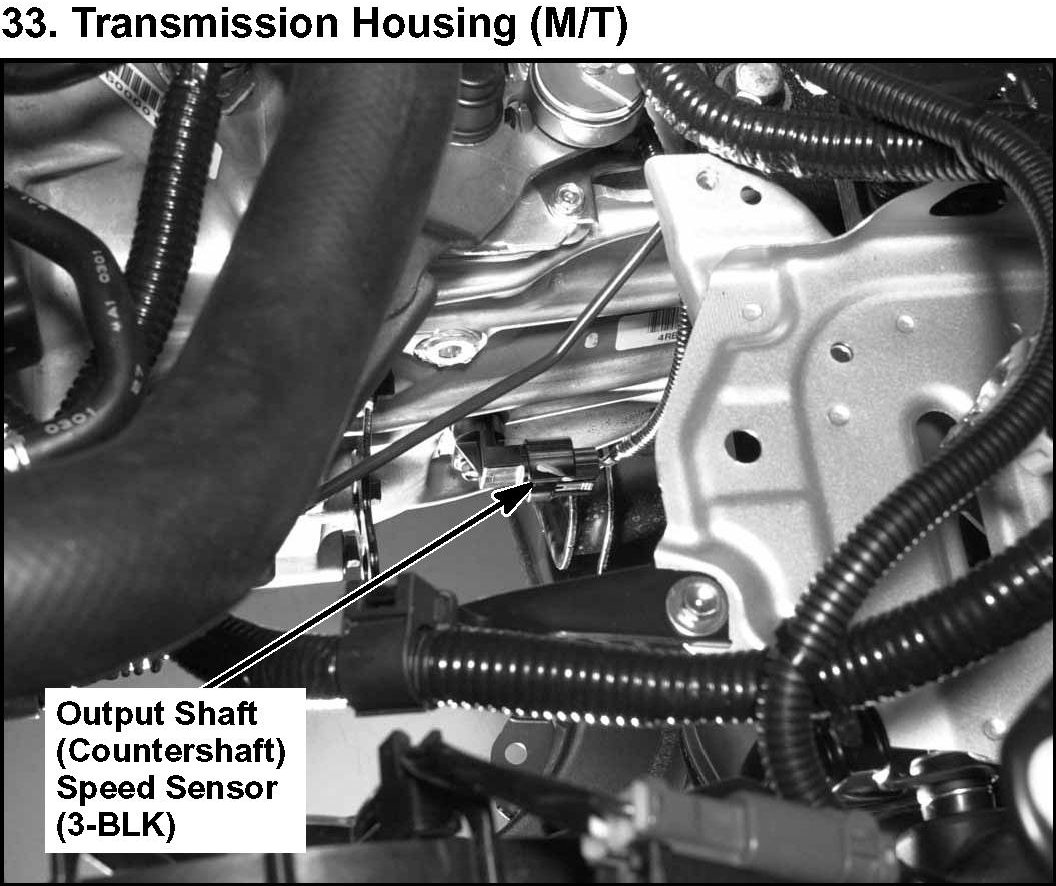

33. Transmission Housing (M/T):
