Navigation System
>>
System Diagram
>>

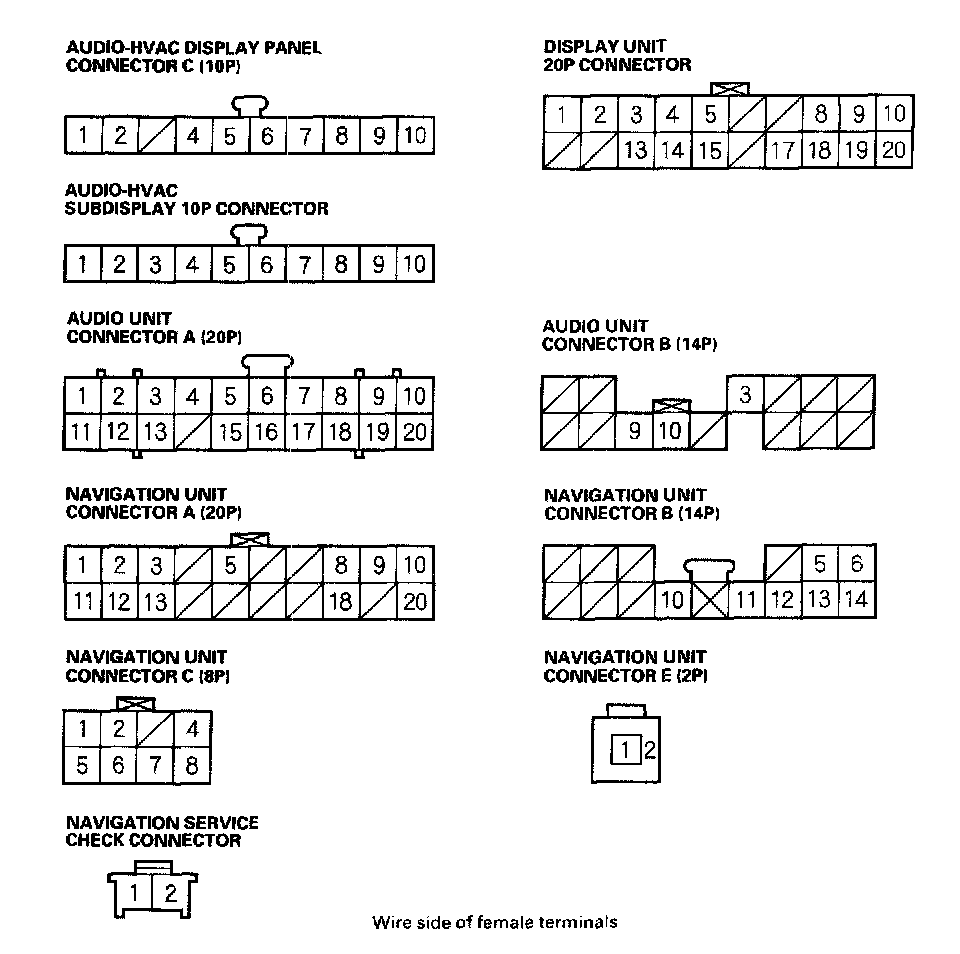

Wire Side Female Terminals
Wire Side Female Terminals

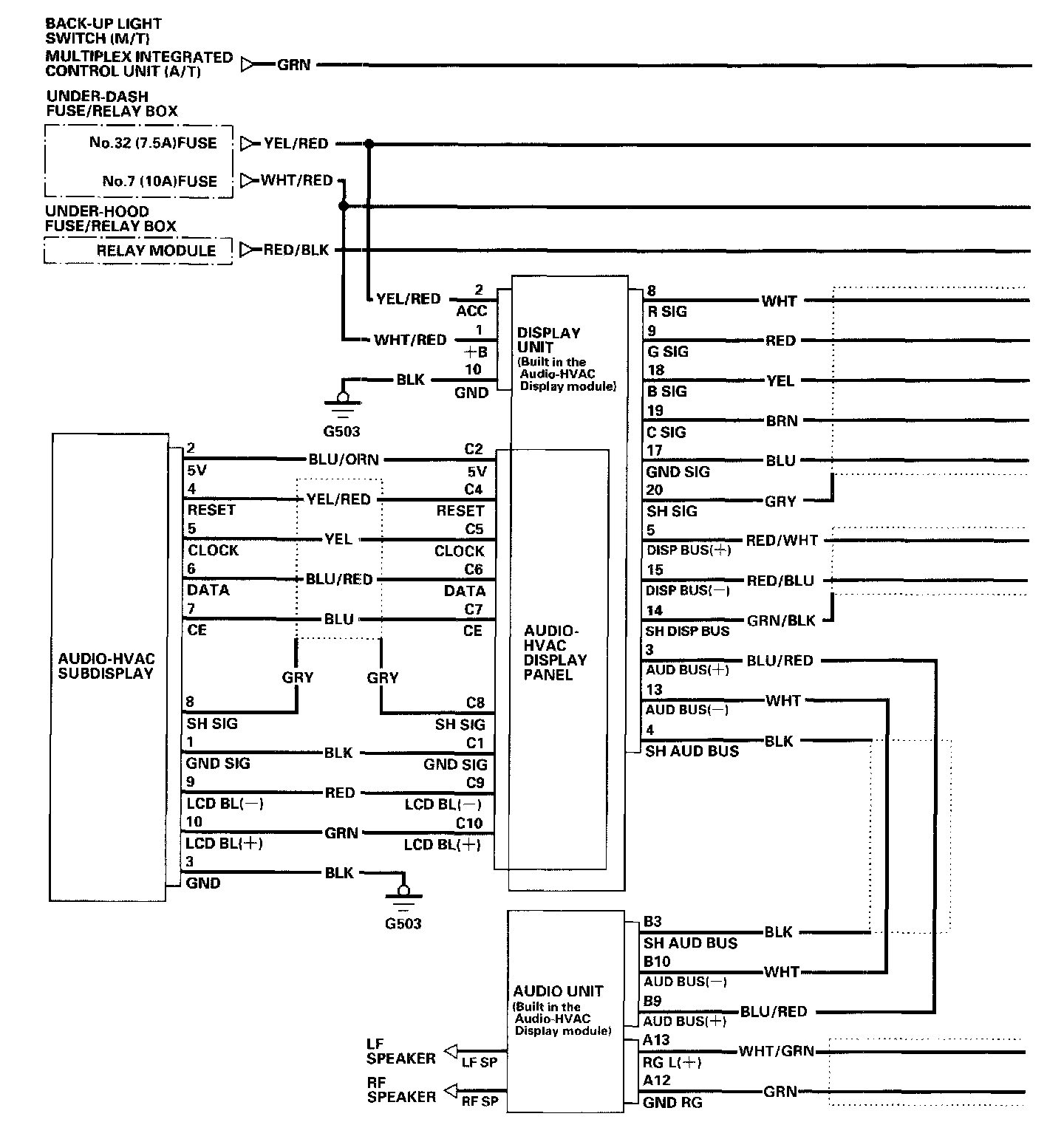

Navigation System - Circuit Diagram Part 1:

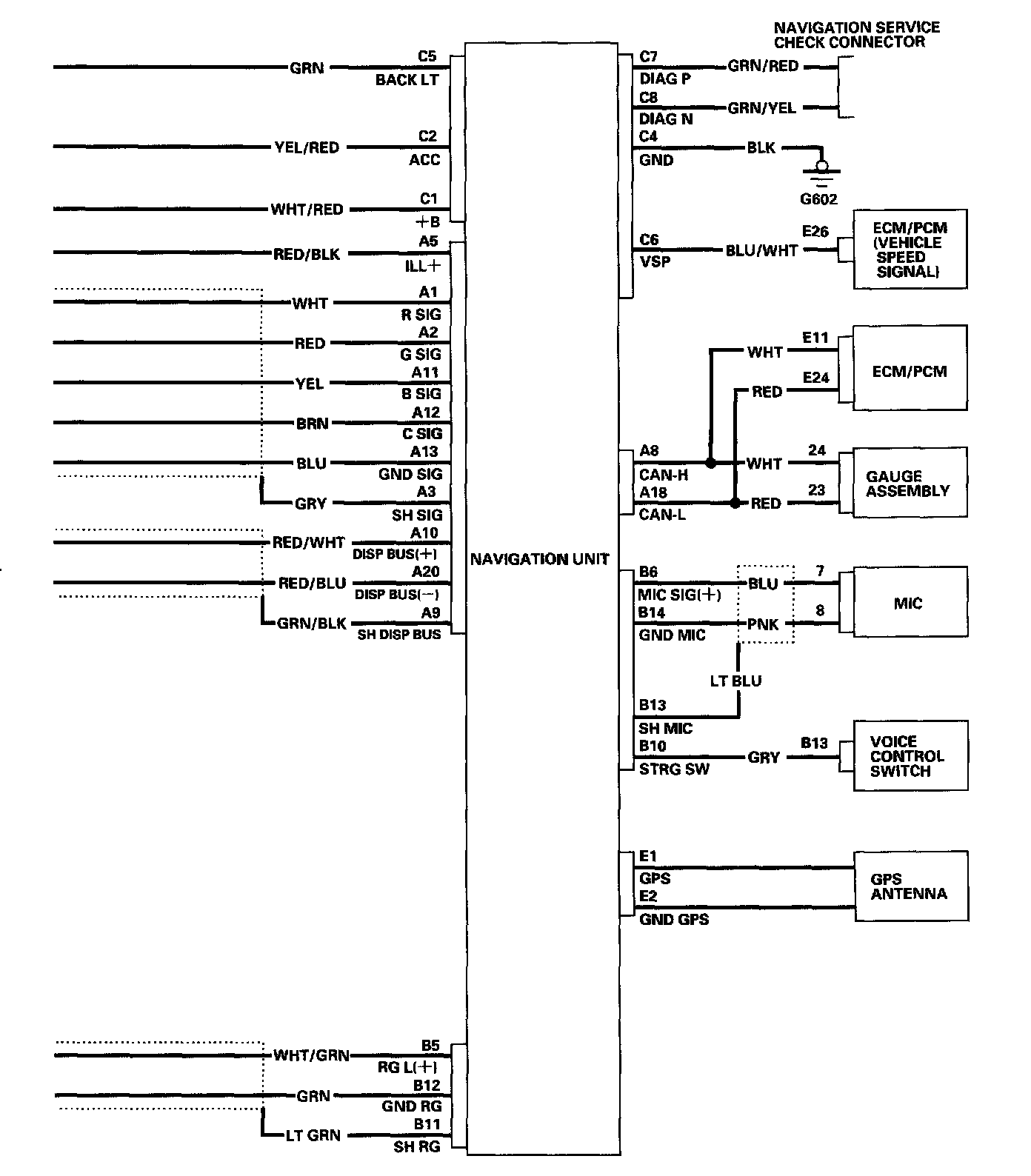

Navigation System - Circuit Diagram Part 2:
Navigation System - Circuit Diagram Part 3:
